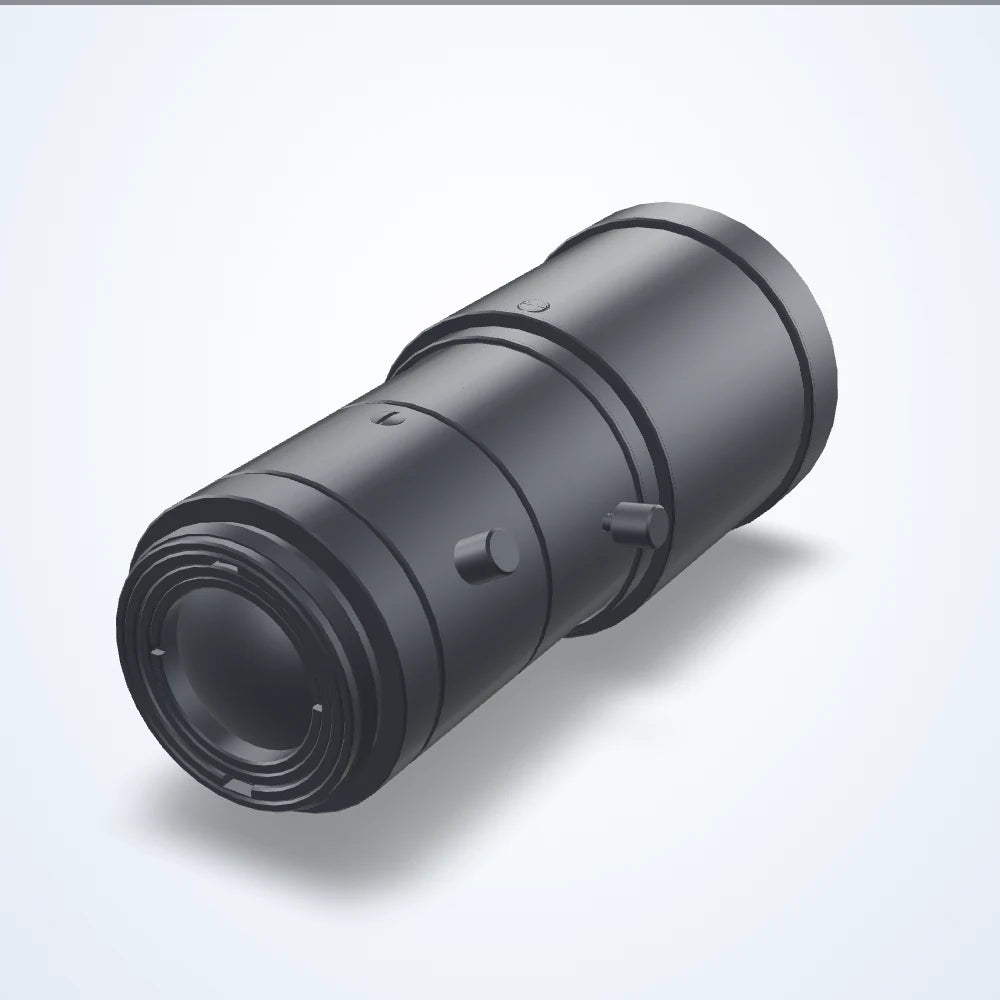

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
75 mm lens, 2/3", C-mount, front diameter 26.1 mm (LS-FFL-0030)
Model LS-FFL-0030
- Focal length75 mm
- MountC-mount
- Sensor2/3"
- Aperturef/2.8
- Resolution6
$369.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras. Minimum object distance 400 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0030 |
|---|---|
| Minimum object distance | 400 mm |
| Aov @ 1/1.8″ h°×v°×d° | 5.5 × 4.1 × 6.9° |
| Aov @ 1/2.5″ h°×v°×d° | 6.7 × 5 × 8.4° |
| Lens type | Fixed Focal Length |
| Spectrum | Visible |
| Zoom range | Fixed |
Optics
| Focal length | 75 mm |
|---|---|
| Aperture (max) | f/2.8 |
| Back focal length | 14.6 mm |
| Filter thread | M34-0.5 |
| Focus control | Manual |
| Focus range | 0.4 m - ∞ |
| Image circle | 11 mm |
| Image size dimensions | 8.8 mm x 6.6 mm |
| Iris control | Manual |
| TV distortion (%) | 0.33 |
Sensor and imaging
| Sensor format | 2/3" |
|---|---|
| Resolution (MP) | 6 |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|

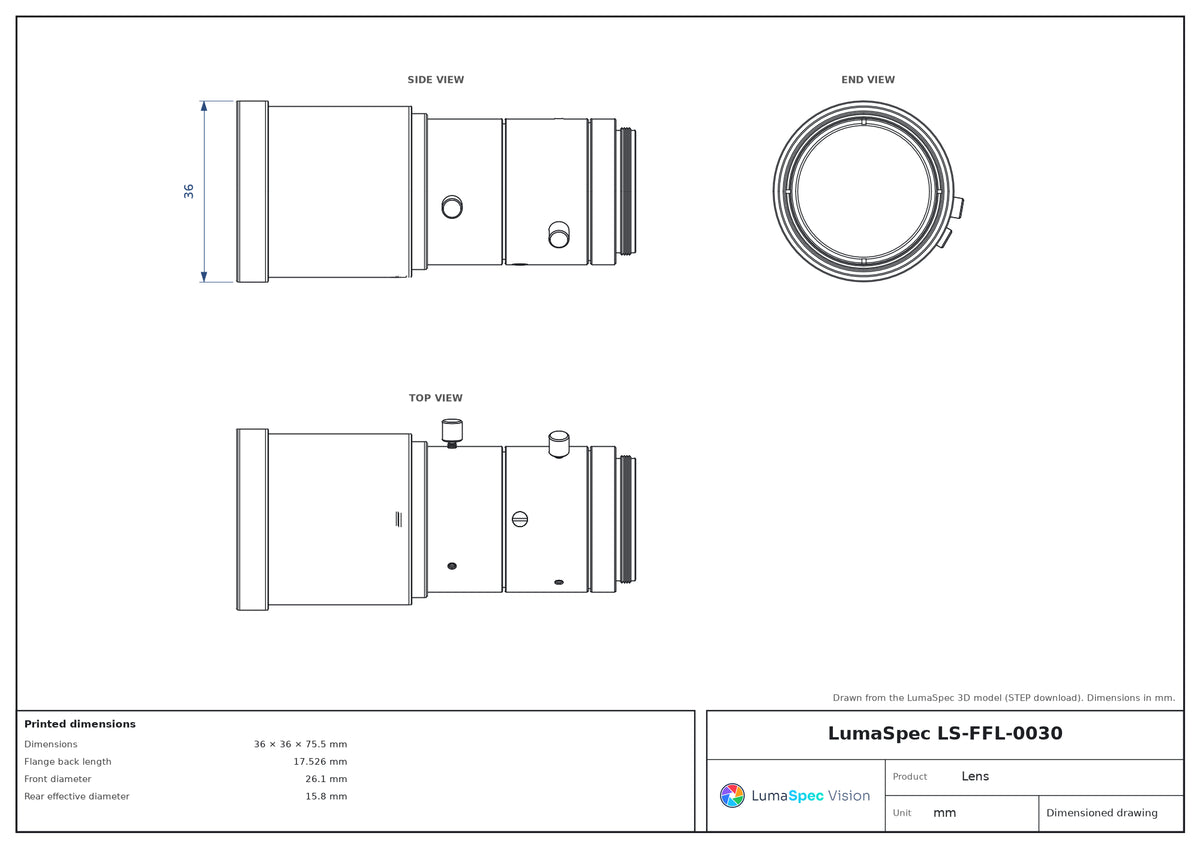

Mechanical
| Mount | C-mount |
|---|---|
| Dimensions | 36 × 36 × 75.5 mm |
| Flange back length | 17.526 mm |
| Front diameter | 26.1 mm |
| Rear effective diameter | 15.8 mm |
| Weight | 102 |

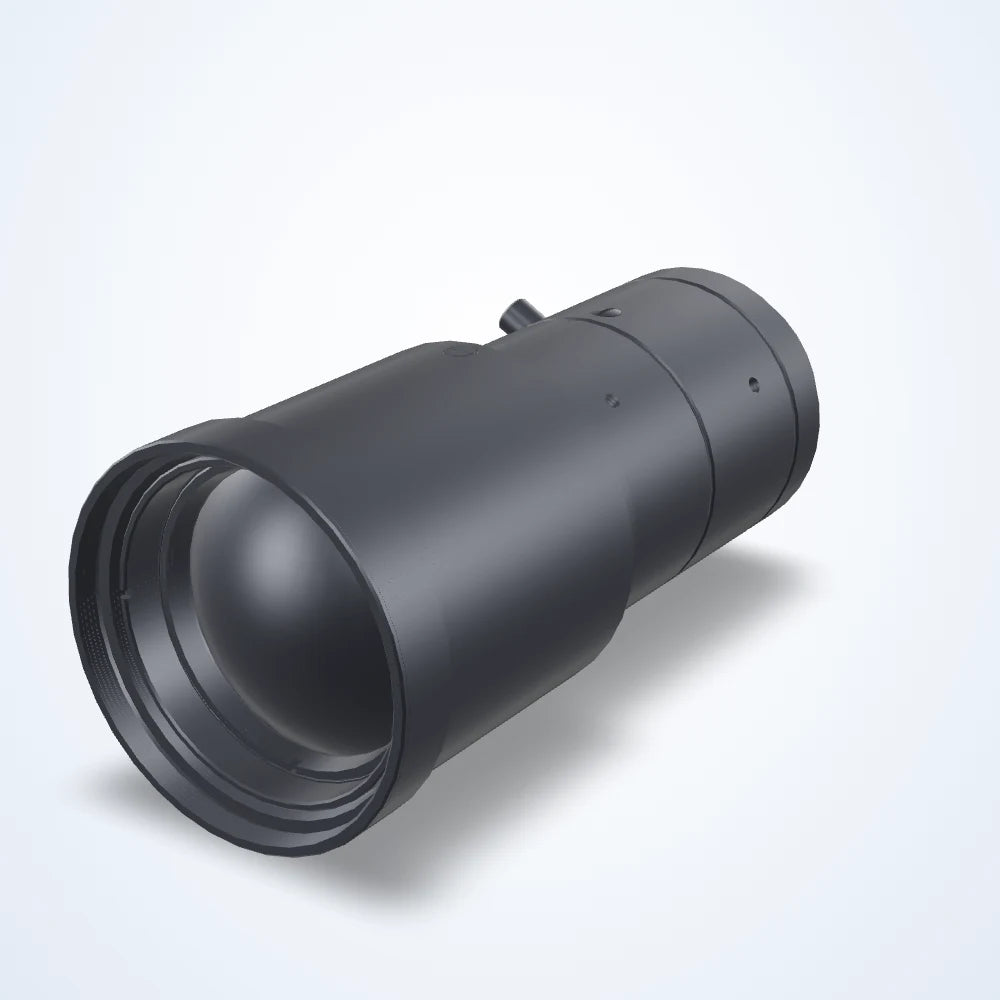

LS-FFL-0030
See this component from every angle.
CAD-based illustration; finish is representative.
Source CAD
FROM THE PRINTED SPECIFICATIONS
- Focal length
- 75 mm
- Sensor format
- 2/3"
- Mount
- C-mount
Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
