Machine vision lenses

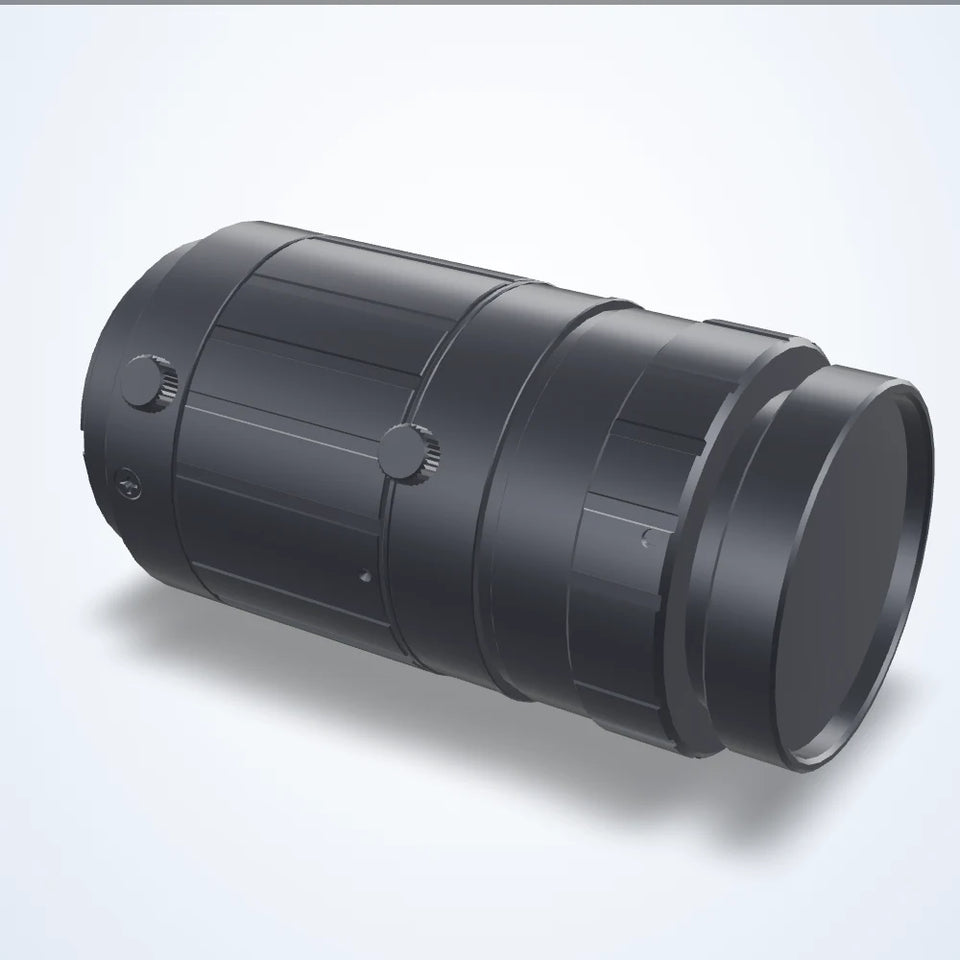

Lens series, 2/3", C-mount (S15)
- 7 models
- from $329.00
- Series LS-FFL-S15
The Lens series, 2/3", C-mount (S15) is a range of 7 machine vision lenses from LumaSpec Vision, from $329.00. It comes in 7 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 6 mm, 8 mm, 12 mm, 16 mm, 25 mm, 35 mm, 50 mm
- Mount
- C-mount
- Image circle
- 8-11 mm
- Focal length
- 6-12 mm, 12-25 mm, 25-50 mm, 50-100 mm
- Sensor format
- 2/3"
All 7 models in the Lens series, 2/3", C-mount (S15)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-FFL-0100 | 12 mm | f/1.6 | 29 mm × 29 mm × 51.5 mm | 40.1° x 30.3° | $329.00quote | View |
| LS-FFL-0105 | 16 mm | f/1.6 | 29 mm × 29 mm × 46 mm | 31.4° x 23.7° | $329.00quote | View |
| LS-FFL-0110 | 25 mm | f/1.6 | 29 mm × 29 mm × 46.5 mm | 20.0° x 15.0° | $329.00quote | View |
| LS-FFL-0115 | 35 mm | f/1.9 | 29 mm × 29 mm × 41.5 mm | 14.2° x 10.7° | $329.00quote | View |
| LS-FFL-0124 | 8 mm | f/1.6 | 29 mm × 29 mm × 51.5 mm | 58.4 x 44.6° | $329.00quote | View |
| LS-FFL-0118 | 50 mm | f/2.4 | 33 mm × 33 mm × 66.5 mm | 10.4° x 7.8° | $459.00quote | View |
| LS-FFL-0119 | 6 mm | f/1.9 | 39 mm × 39 mm × 51 mm | 74.7° x 58.1° | $459.00quote | View |
