Machine vision lenses

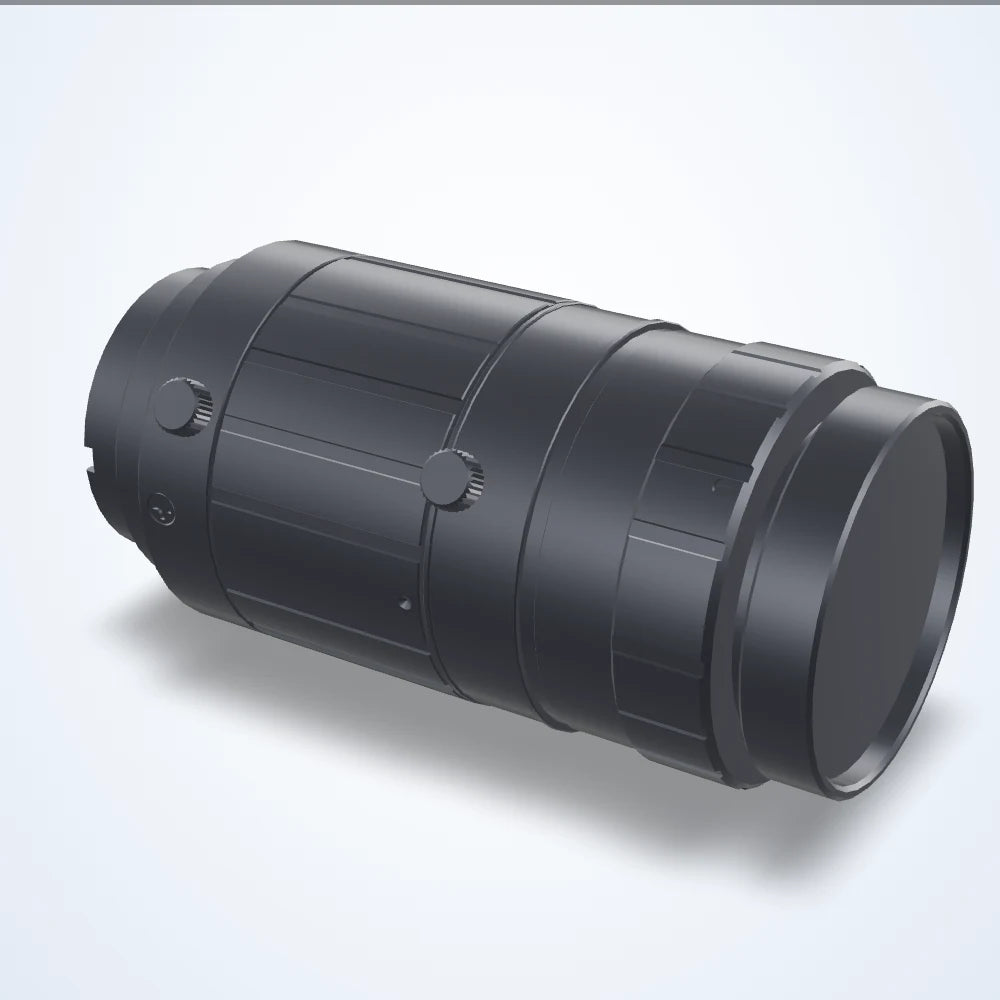

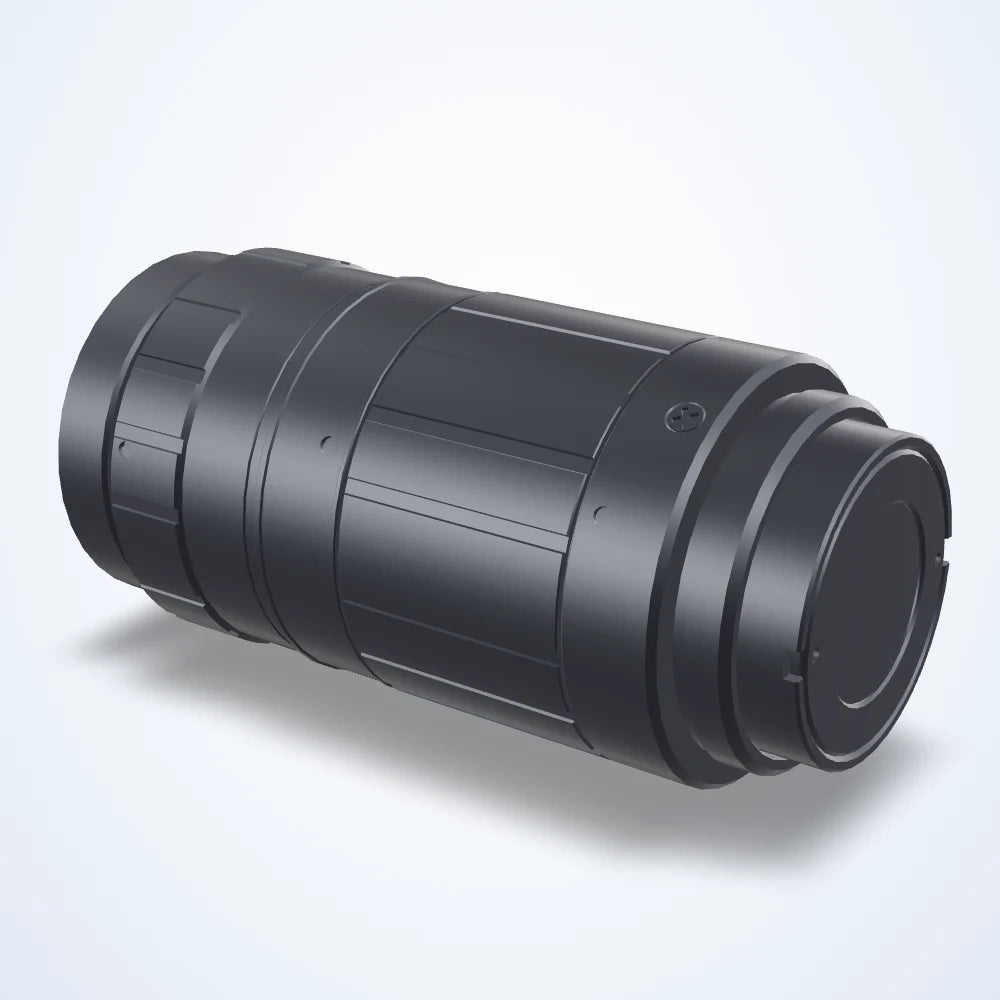

8 mm lens, 2/3", C-mount (LS-FFL-0124)
Model LS-FFL-0124
- Focal length8 mm
- MountC-mount
- Sensor2/3"
- Aperturef/1.6
- Resolution5
$329.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras. Minimum object distance 100 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0124 |
|---|---|
| Minimum object distance | 100 mm |
| Angle of view @ 2/3″ | 58.4 x 44.6° |
| Chief ray angle | 0.05° |
| Distance between principle points | 40.38 mm |
| Entrance pupil position | -39.23 mm |
| Exit pupil position | -417.22 mm |
| Flange back in air | 17.526 mm |
| Front principle point | -31.16 mm |
| Lens type | Fixed Focal Length |
| Rear principle point | 9.23 mm |
| Spectrum | Visible |
Optics
| Focal length | 8 mm |
|---|---|
| Aperture (max) | f/1.6 |
| Back focal length | 9.75 mm |
| Filter thread | M25.5-0.5 |
| Focus control | Manual |
| Iris control | Manual |
| TV distortion (%) | -1.99 |
Sensor and imaging
| Sensor format | 2/3" |
|---|---|
| Resolution (MP) | 5 |
Environment and compliance
| Operating temperature range | -10 to +50°C |
|---|

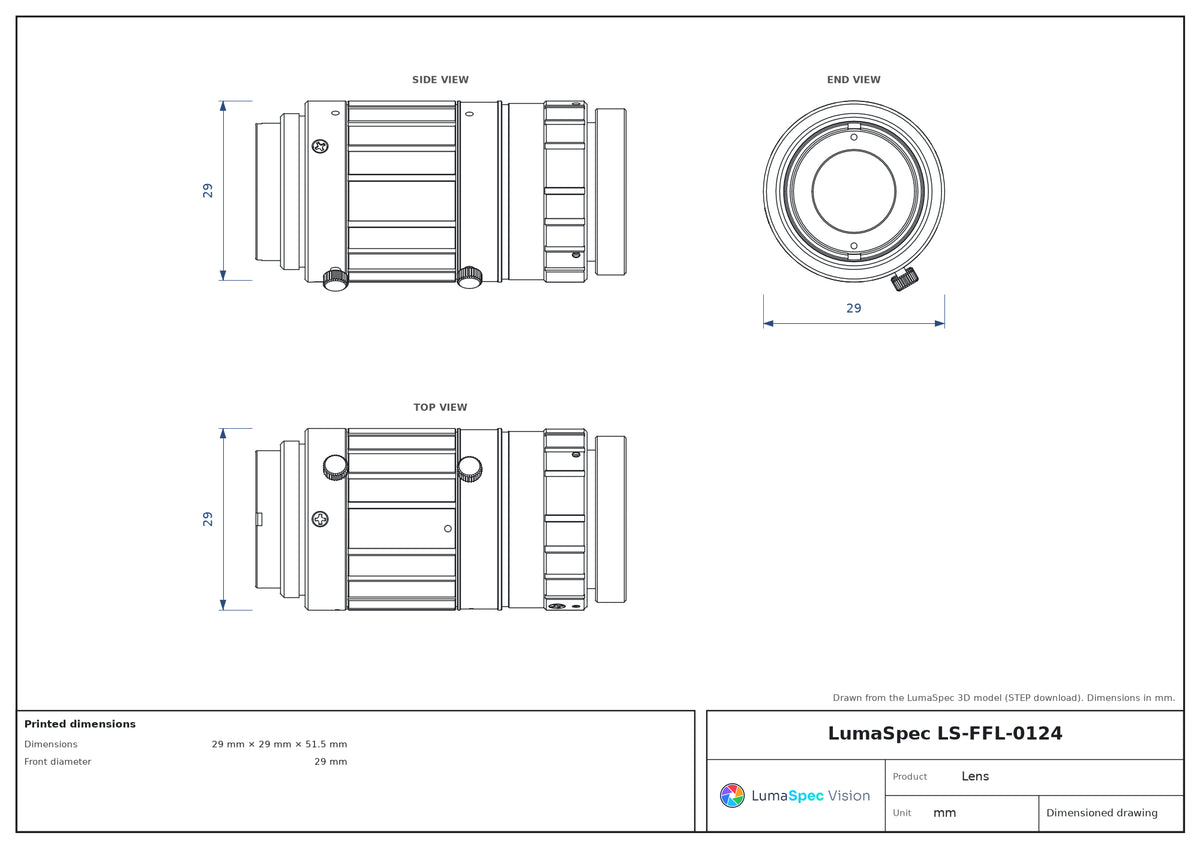

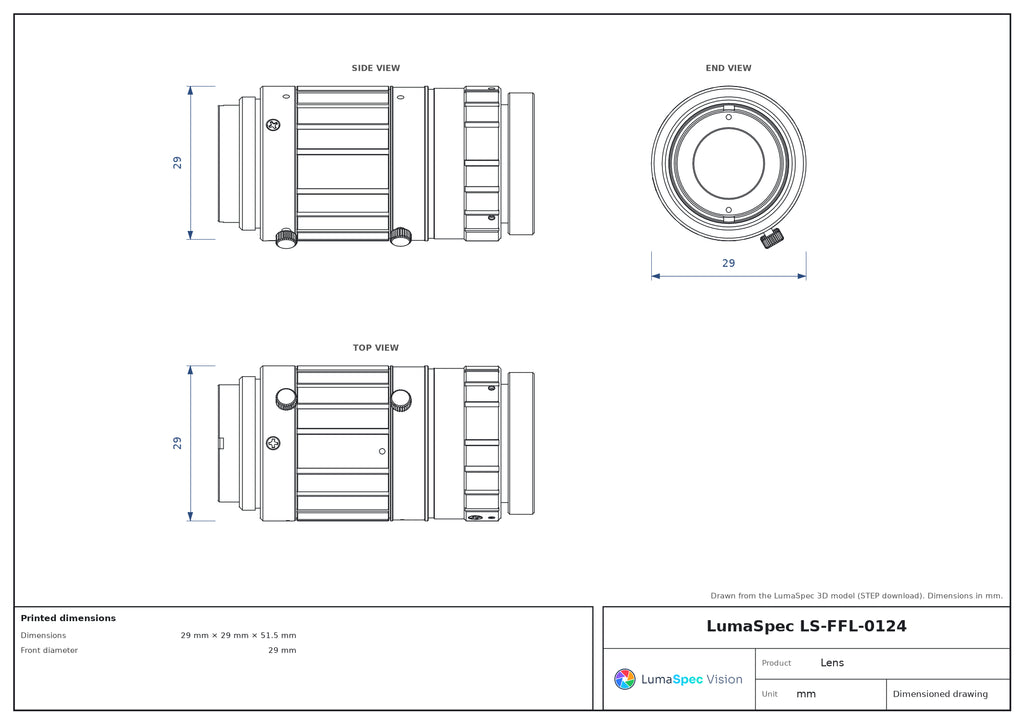

Mechanical
| Mount | C-mount |
|---|---|
| Dimensions | 29 mm × 29 mm × 51.5 mm |
| Front diameter | 29 mm |
| Weight | 79 Grams |
Other models in the Lens series, 2/3", C-mount (S15) series
See all 7 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-0100 | 12 mm | $329.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0105 | 16 mm | $329.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0110 | 25 mm | $329.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0115 | 35 mm | $329.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0118 | 50 mm | $459.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0119 | 6 mm | $459.00 Quote | Lead time confirmed with your quote | View |
