Machine vision lenses

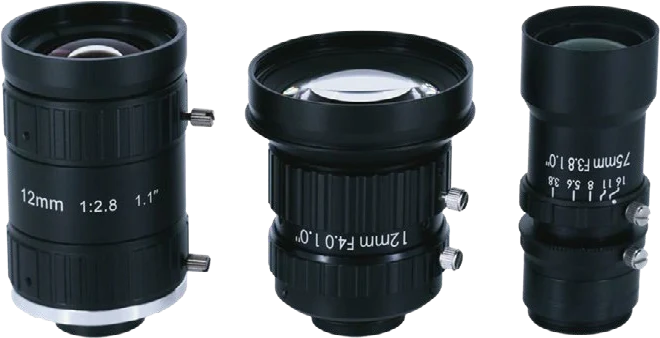

1-1.1 inch 20MP industrial lens (LS-XTY1240C / LS-XTY7538C / LS-XTY1228C)
- 3 models
- from $219.00
- Series LENS-XTY-20MP-B
The 1-1.1 inch 20MP industrial lens (LS-XTY1240C / LS-XTY7538C / LS-XTY1228C) is a range of 3 machine vision lenses from LumaSpec Vision, from $219.00. It comes in 3 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 12 mm, 1", 20MP, C-mount, 12 mm, 1.1", 20MP, C-mount, 75 mm, 1", 20MP, C-mount
- Mount
- C-mount
- Resolution
- 16-25 MP
- Image circle
- 11-16 mm, 16-22 mm
- Focal length
- 12-25 mm, 50-100 mm
- Sensor format
- 1", 1.1" - 1.2"
Features
- High resolution
- Low distortion
All 3 models in the 1-1.1 inch 20MP industrial lens (LS-XTY1240C / LS-XTY7538C / LS-XTY1228C)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-XTY1240C | 12 mm, 1", 20MP, C-mount | 12 | 150-INF. | 4.0-11 | $219.00 | View |
| LS-XTY1228C | 12 mm, 1.1", 20MP, C-mount | 12 | 100-INF. | 2.8-22 | $219.00 | View |
| LS-XTY7538C | 75 mm, 1", 20MP, C-mount | 75 | 200-INF. | 3.8-16 | $289.00 | View |
