Machine vision lenses

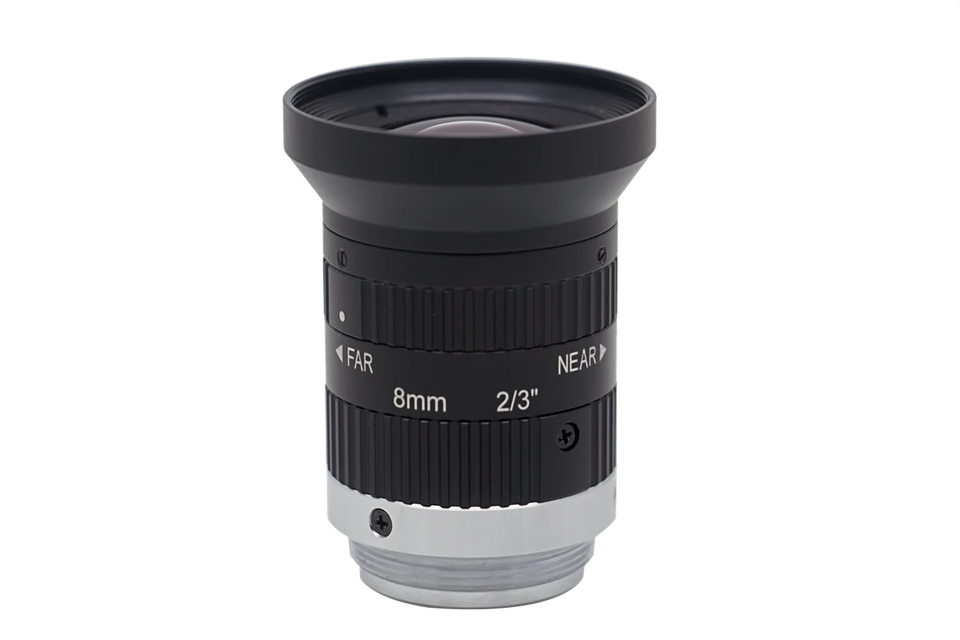

MF-E series lenses
- 6 models
- from $209.00
- Series LS-MF-E
The MF-E series lenses is a range of 6 machine vision lenses from LumaSpec Vision, from $209.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Mount
- C-mount
- Image circle
- 8-11 mm
- Focal length
- 6-12 mm, 12-25 mm, 25-50 mm, 50-100 mm
- Resolution
- 5 MP
- Sensor format
- 2/3"
Features
- High resolution and consistency of image clarity.
- Lower distortion and higher relative illumination rate.
- Achromatic optical system design, Better imaging performance with color camera.
- Excellent performance at high and low temperature.
- Good optical performance at ultra-short working distance.
- High resolution and consistency of image clarity
- Lower distortion and higher relative illumination rate
- Achromatic optical system design, Better imaging performance with color camera
All 6 models in the MF-E series lenses
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-MF0824M-5MPE | 8 mm | F2.4 to F16 | M35.5 × 0.5 | 0.1 m | $209.00quote | View |
| LS-MF1224M-5MPE | 12 mm | F2.4 to F16 | M27 × 0.5 | 0.15 m | $209.00quote | View |
| LS-MF1618M-5MPE | 16 mm | F1.8 to F16 | M27 × 0.5 | 0.2 m | $209.00quote | View |
| LS-MF2518M-5MPE | 25 mm | F1.8 to F16 | M27 × 0.5 | 0.2 m | $209.00quote | View |
| LS-MF3518M-5MPE | 35 mm | F1.8 to F16 | M27 × 0.5 | 0.25 m | $209.00quote | View |
| LS-MF5028M-5MPE | 50 mm | F2.8 to F16 | M27 × 0.5 | 0.4 m | $209.00quote | View |
