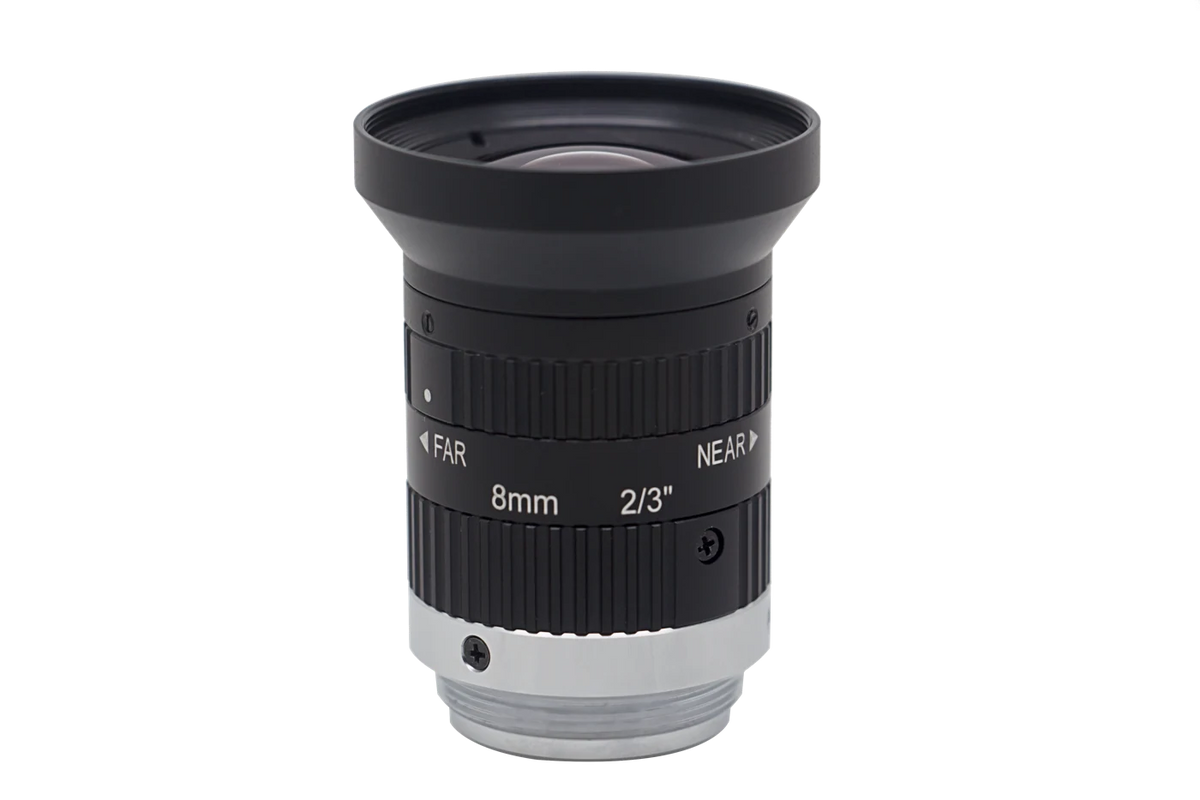

8mm, F2.4, 2/3", 5MP Lens, C-Mount (LS-MF0824M-5MPE)
  • 8mm, F2.4, 2/3", 5MP Lens, C-Mount (LS-MF0824M-5MPE)

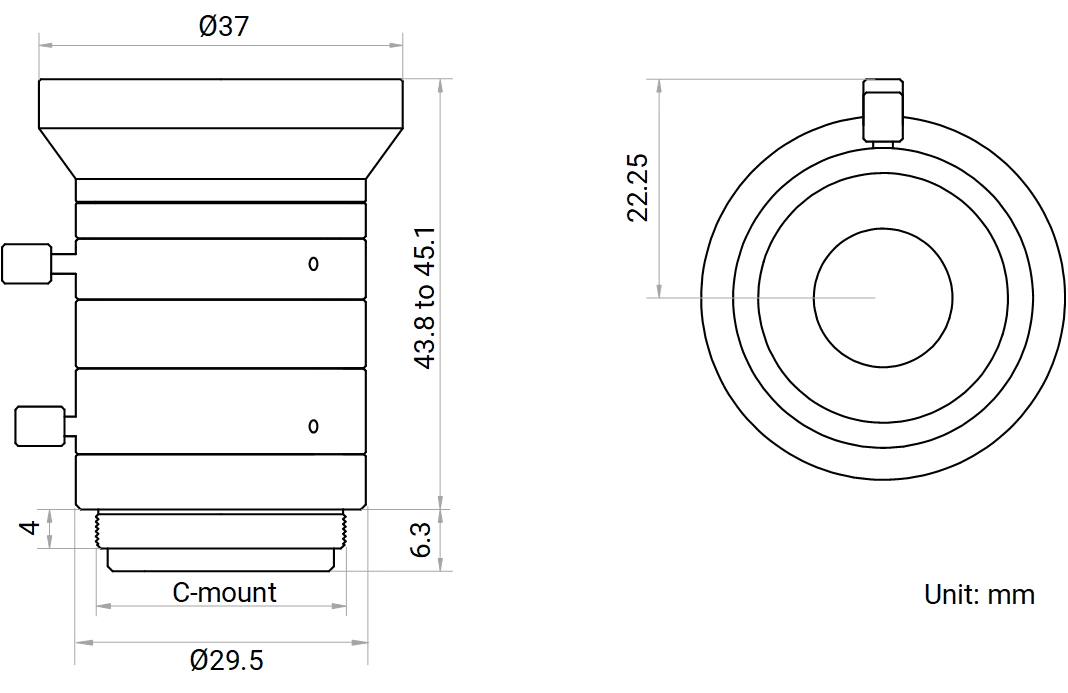

  • LS-MF0824M-5MPE dimensions (mm)

Machine vision lenses

8mm, F2.4, 2/3", 5MP Lens, C-Mount (LS-MF0824M-5MPE)

Model LS-MF0824M-5MPE

  • Focal length8 mm
  • MountC-mount
  • Sensor2/3"
  • ApertureF2.4 to F16
$209.00
Quote

Quoted price: add to quote for lead time and volume pricing.

End of life soon: the maker is phasing this model out, so stock is limited. Ask us for availability or the successor model.

Ships in 2-3 weeks

0.22 kg shipping weight

Collect parts in your quote list; we reply with price, lead time and volume pricing.

8mm, F2.4, 2/3", 5MP Lens, C-Mount. High resolution and consistency of image clarity. Lower distortion and higher relative illumination rate.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-MF0824M-5MPE
Minimum object distance0.1 m
Min. object distance0.1 m
Close-up with extension tube2 mm tube, near focus: WD 8.3 mm, magnification -0.278; 2 mm tube, far focus: WD 19.2 mm, magnification -0.206; 1 mm tube, near focus: WD 25.4 mm, magnification -0.172; 1 mm tube, far focus: WD 58.8 mm, magnification -0.102

Optics

Focal length8 mm
F-numberF2.4 to F16
Image sizeØ11 mm (2/3'')
TV distortion–0.90%
Field of viewD (11.1 mm): 70.6°; H (8.45 mm): 56.4°; V (7.07 mm): 48.3°
Iris controlManual
Focus controlManual
Filter threadM35.5 × 0.5
Flange focal length17.526 mm
Magnification at working distance (mm)100: -0.064; 150: -0.046; 200: -0.036; 250: -0.029; 300: -0.025; 350: -0.021; 400: -0.019; 450: -0.017; 500: -0.015; 550: -0.014; 600: -0.013; 650: -0.012; 700: -0.011; 800: -0.010; 900: -0.009; 1000: -0.008
Field of view H x V (mm) at working distance (mm), 2/3" sensor (8.45 x 7.07 mm)100: 129.9 x 108.1; 150: 183.0 x 152.4; 200: 235.9 x 196.6; 250: 288.8 x 240.8; 300: 341.8 x 285.1; 350: 394.7 x 329.3; 400: 447.7 x 373.5; 450: 500.6 x 417.8; 500: 553.6 x 462.0; 550: 606.6 x 506.2; 600: 659.5 x 550.5; 650: 712.5 x 594.7; 700: 765.4 x 638.9; 800: 871.3 x 727.4; 900: 977.3 x 815.9; 1000: 1083.2 x 904.4
Field of view H x V (mm) at working distance (mm), 1/1.8" sensor (7.38 x 4.92 mm)100: 112.9 x 74.6; 150: 159.1 x 105.3; 200: 205.3 x 135.9; 250: 251.4 x 166.6; 300: 297.6 x 197.3; 350: 343.8 x 227.9; 400: 390.0 x 258.6; 450: 436.2 x 289.3; 500: 482.3 x 319.9; 550: 528.5 x 350.6; 600: 574.7 x 381.3; 650: 620.9 x 411.9; 700: 667.1 x 442.6; 800: 759.4 x 503.9; 900: 851.8 x 565.3; 1000: 944.5 x 626.8
Field of view H x V (mm) at working distance (mm), 1/2" sensor (6.22 x 4.67 mm)100: 94.8 x 70.8; 150: 133.7 x 99.9; 200: 172.5 x 129.0; 250: 211.4 x 158.1; 300: 250.2 x 187.2; 350: 289.1 x 216.3; 400: 328.0 x 245.4; 450: 366.8 x 274.5; 500: 405.7 x 303.6; 550: 444.6 x 332.7; 600: 483.4 x 361.8; 650: 522.3 x 390.9; 700: 561.2 x 420.0; 800: 638.9 x 478.2; 900: 716.6 x 536.4; 1000: 794.1 x 594.5

Environment and compliance

Temperature–10 °C to 50 °C (14 °F to 122 °F)
CertificationRoHS 2.0

Mechanical

MountC-mount
Flange back length17.526 mm
DimensionØ37 mm × 43.8 mm to 45.1 mm (Ø1.5" × 1.7" to 1.8")
Weight87.3 g (0.2 Ib.)
Shipping weight (estimated)0.22 kg
