1/1.8" 5MP FA lens
  • 1/1.8" 5MP FA lens

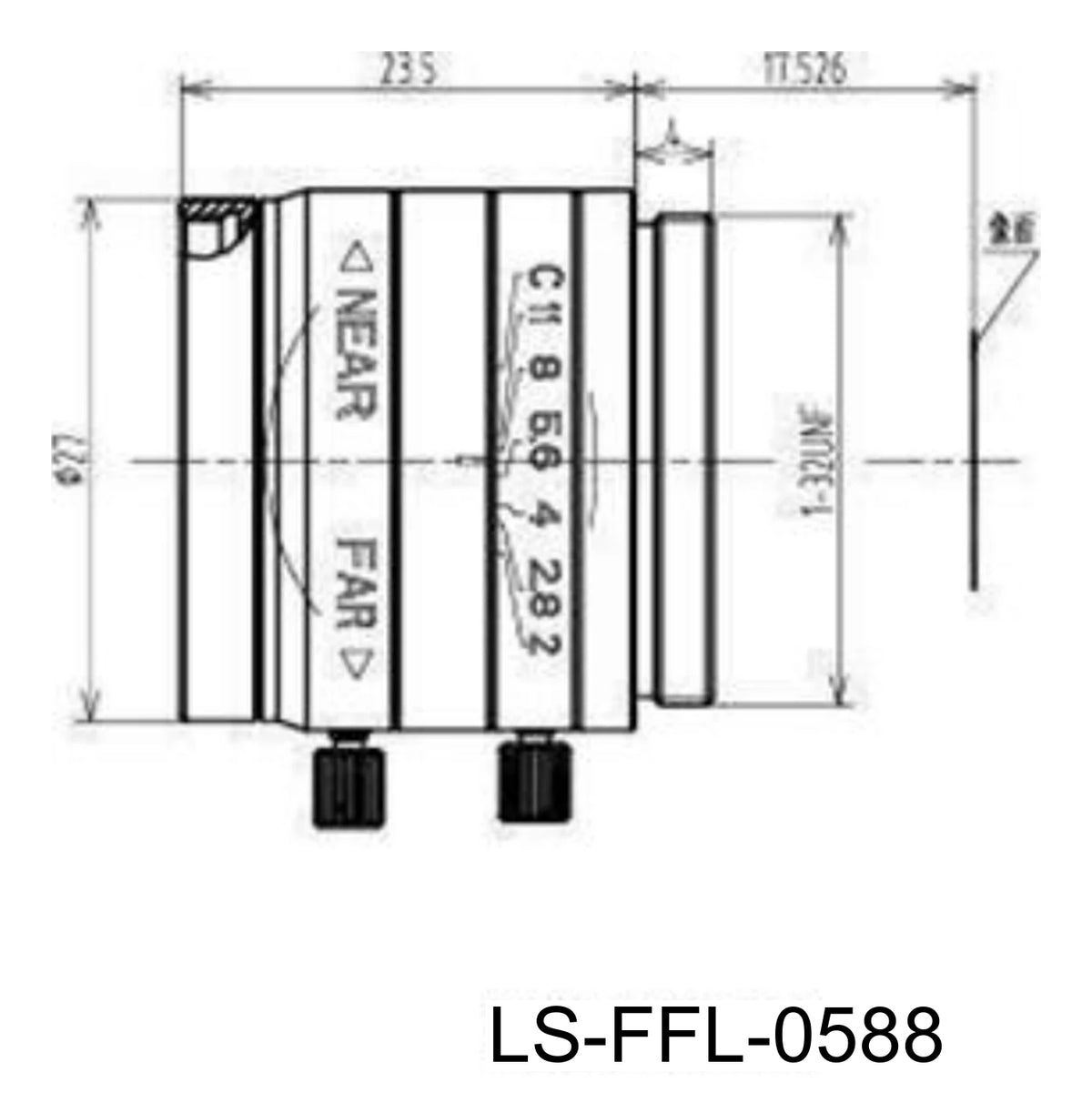

  • LS-FFL-0588 dimensions (mm)

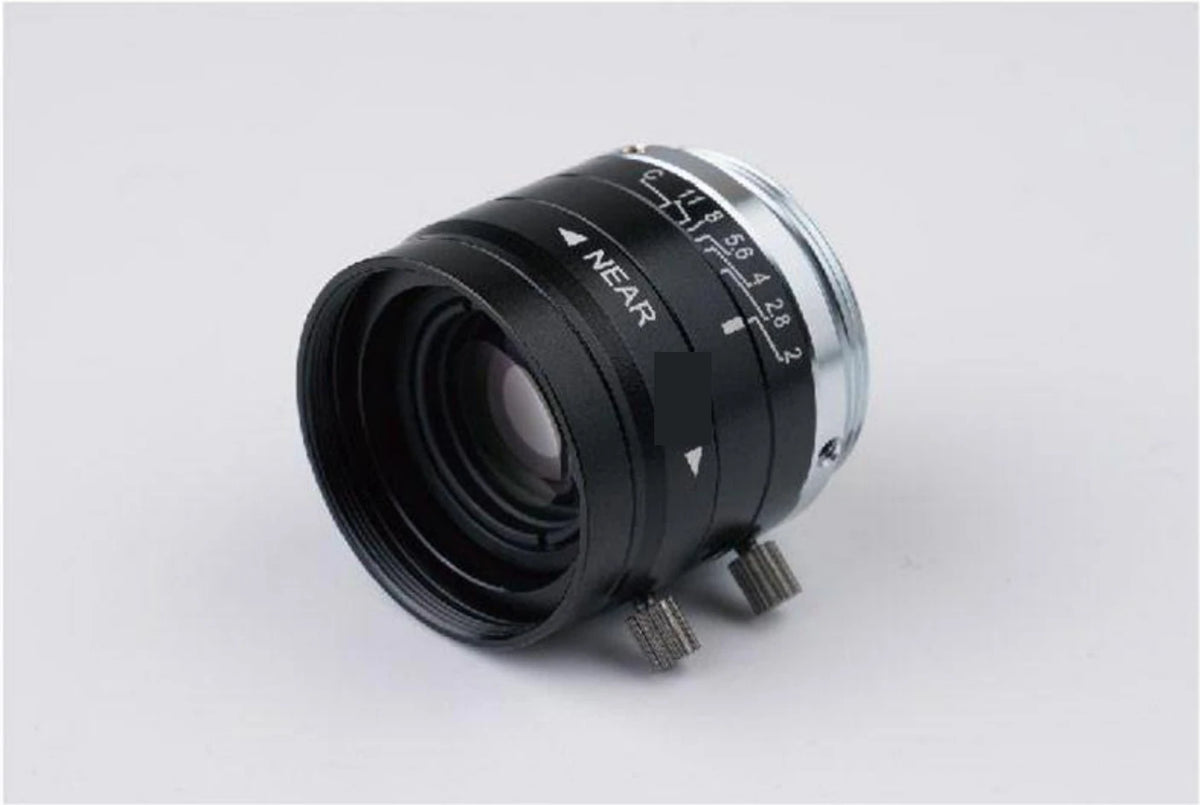

Representative photo of this series

Machine vision lenses

1/1.8" 5MP FA lens, 25 mm, C-mount (LS-FFL-0588)

Model LS-FFL-0588

  • Focal length25 mm
  • MountC-mount
  • Sensor1/1.8"
  • ApertureF2.0-C
  • Resolution5MP
  • Field of view13.6° x 11.3°
$199.00

Ships in 2-3 weeks

0.38 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

1/1.8" 5MP FA lens, 25 mm, C-mount (LS-FFL-0588)LS-FFL-0588

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

5MP fixed-focal-length industrial FA lens for 1/1.8" sensors, suitable for 2MP, 3MP and 5MP cameras; TV distortion < 0.1%, focal lengths 4 mm to 75 mm, small ultra-compact high-contrast design.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0588
F/NO2.0-C
EFL25mm
MOD0.1m

Optics

Distortion<0.1%
Focal length (mm)25
ApertureF2.0-C
Image size (dia.)1/1.8"
Field of view angle 1/1.8"13.6° x 11.3°
Field of view angle 1/2.5"13.4° x 10.3°
Field of view angle 1/3"11.4° x 8.8°
Distortion (TV) 1/1.8"<0.1%

Sensor and imaging

Sensor format1/1.8"
Resolution5MP

Mechanical

MountC-Mount
Filter sizeM25.5×P0.5
Shipping weight0.38 kg

Other models in the 1/1.8" 5MP FA lens (LS-FFL-S87) series

See all 9 models
ModelSize / key dataPriceAvailabilityLink
LS-FFL-0583 4 mm, 1/1.8", C-mount $159.00 Ships in 2-3 weeks View
LS-FFL-0584 6 mm, 1/1.8", C-mount $169.00 Ships in 2-3 weeks View
LS-FFL-0585 8 mm, 1/1.8", C-mount $169.00 Ships in 2-3 weeks View
LS-FFL-0586 12 mm, 1/1.8", C-mount $179.00 Ships in 2-3 weeks View
LS-FFL-0587 16 mm, 1/1.8", C-mount $189.00 Ships in 2-3 weeks View
LS-FFL-0589 35 mm, 1/1.8", C-mount $229.00 Ships in 2-3 weeks View
LS-FFL-0590 50 mm, 1/1.8", C-mount $249.00 Ships in 2-3 weeks View
LS-FFL-0591 75 mm, 1/1.8", C-mount $309.00 Ships in 2-3 weeks View
