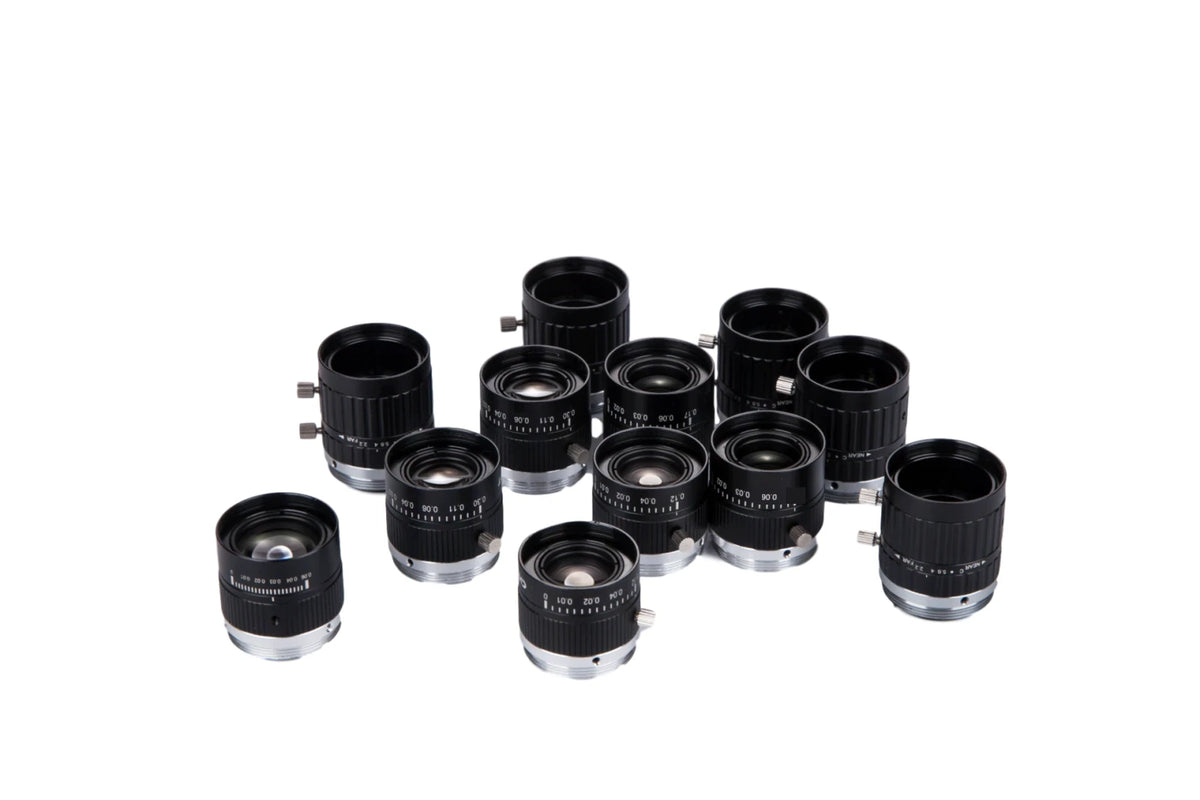

Representative photo of this series
Machine vision lenses
Industrial lens, 1/1.8" 5MP FA lens, 6 mm, C-mount (LS-FFL-0409)
Model LS-FFL-0409
- Focal length6 mm
- MountC-mount
- Sensor1/1.8"
- Aperture2
- Resolution5
- Field of view235 x 176
$209.00
Ships in 2-3 weeks
0.38 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Industrial lens, 1/1.8" 5MP FA lens with mount C Mount, max image surface size 1/1.8", focal length 6, aperture 2, fov @ wd 200 235 x 176.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0409 |
|---|---|
| Min distance | 0.1M |
Optics
| Focal length (mm) | 6 |
|---|---|
| Aperture | 2 |
| TV distortion | <0.1% |
| Filter thread | M25.5 x P0.5 |
| Field of view | 235 x 176 |
Sensor and imaging
| FOV @ WD 200 (H x V), 1/1.8" sensor | 235 x 176 |
|---|---|
| FOV @ WD 200 (H x V), 1/2.5" sensor | 190 x 142.67 |
| FOV @ WD 200 (H x V), 1/3" sensor | 157.87 x 1118.40 |
| Sensor format | 1/1.8" |
| Resolution (MP) | 5 |
Interfaces and I/O
| Interface | C Mount |
|---|
Mechanical
| Mount | C Mount |
|---|---|
| Max image surface size | 1/1.8" |
| Shipping weight | 0.38 kg |
Other models in the Industrial lens, 1/1.8" 5MP FA lens (LS-FFL-S76) series
See all 9 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-0410 | 8 mm, 1/1.8", C-mount | $169.00 | Ships in 2-3 weeks | View |
| LS-FFL-0411 | 12 mm, 1/1.8", C-mount | $179.00 | Ships in 2-3 weeks | View |
| LS-FFL-0408 | 4 mm, 1/1.8", C-mount | $209.00 | Ships in 2-3 weeks | View |
| LS-FFL-0412 | 16 mm, 1/1.8", C-mount | $239.00 | Ships in 2-3 weeks | View |
| LS-FFL-0415 | 50 mm, 1/1.8", C-mount | $249.00 | Ships in 2-3 weeks | View |
| LS-FFL-0413 | 25 mm, 1/1.8", C-mount | $289.00 | Ships in 2-3 weeks | View |
| LS-FFL-0416 | 75 mm, 1/1.8", C-mount | $309.00 | Ships in 2-3 weeks | View |
| LS-FFL-0414 | 35 mm, 1/1.8", C-mount | $319.00 | Ships in 2-3 weeks | View |
