Rendered illustration: the actual product may differ in appearance.
Machine vision lenses

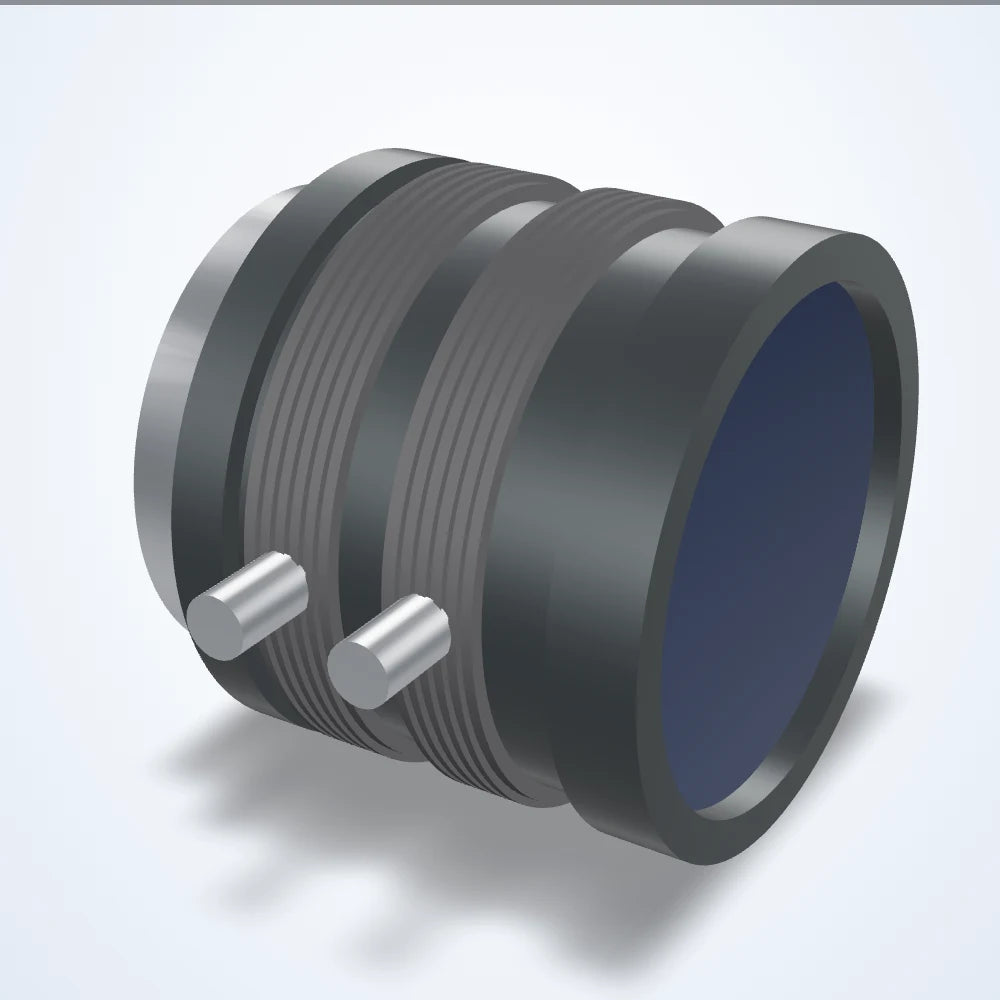

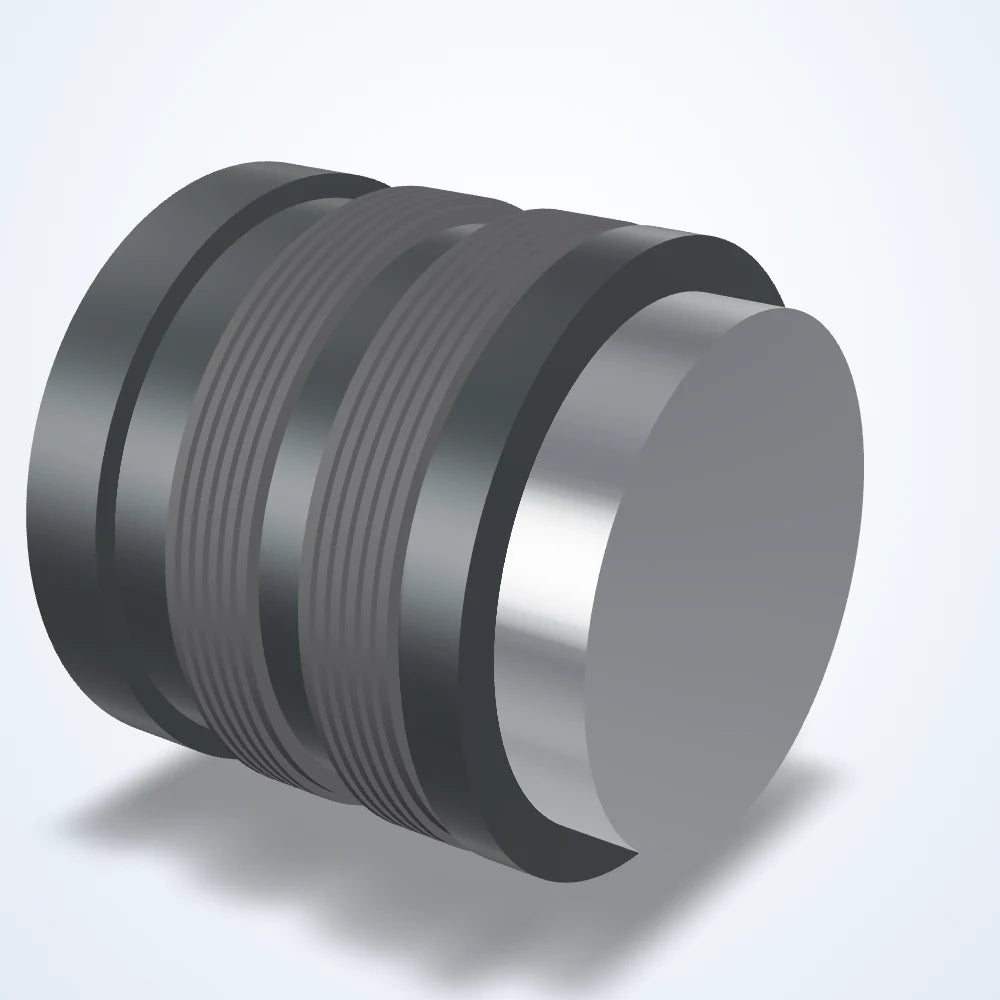

16 mm lens, 2/3", C-mount, 11.5 mm dia., dimensions 30.5 x 25 (LS-FFL-0261)
Model LS-FFL-0261
- Focal length16 mm
- MountC-mount
- Sensor2/3"
- Aperture1.4-16
- Resolution1.3
$189.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0261 |
|---|---|
| Angle of view | 30.9 x 23.2 deg |
| Angle of view 1/2" | 22.5 x 16.9 deg |
| Angle of view 1/3" | 16.9 x 12.7 deg |
| FOV @ 1/2″ | 22.5° × 16.9° |
| FOV @ 1/3″ | 16.9° × 12.7° |
| FOV @ 2/3″ | 30.9° × 23.4° |
| Flange back | 17.526mm (in air) |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.29 |
| Operation | Focus: manual w/lock / Iris: manual w/lock |
| Spectrum | Visible |
Optics
| Focal length | 16 mm |
|---|---|
| Aperture (F) | 1.4-16 |
| Back focus (in air) | 11.85mm |
| Filter thread | M25.5x0.5 |
| Focus control | Manual with Lock |
| Focus range | 0.29 m - ∞ |
| Focusing range | 0.29m~inf |
| Iris control | Manual with Lock |
Sensor and imaging
| Max. sensor format | 2/3" |
|---|---|
| Resolution (MP) | 1.3 |
Environment and compliance
| Operating temperature | -5~+50 C |
|---|---|
| Operating temperature range | -10 to +50 °C |

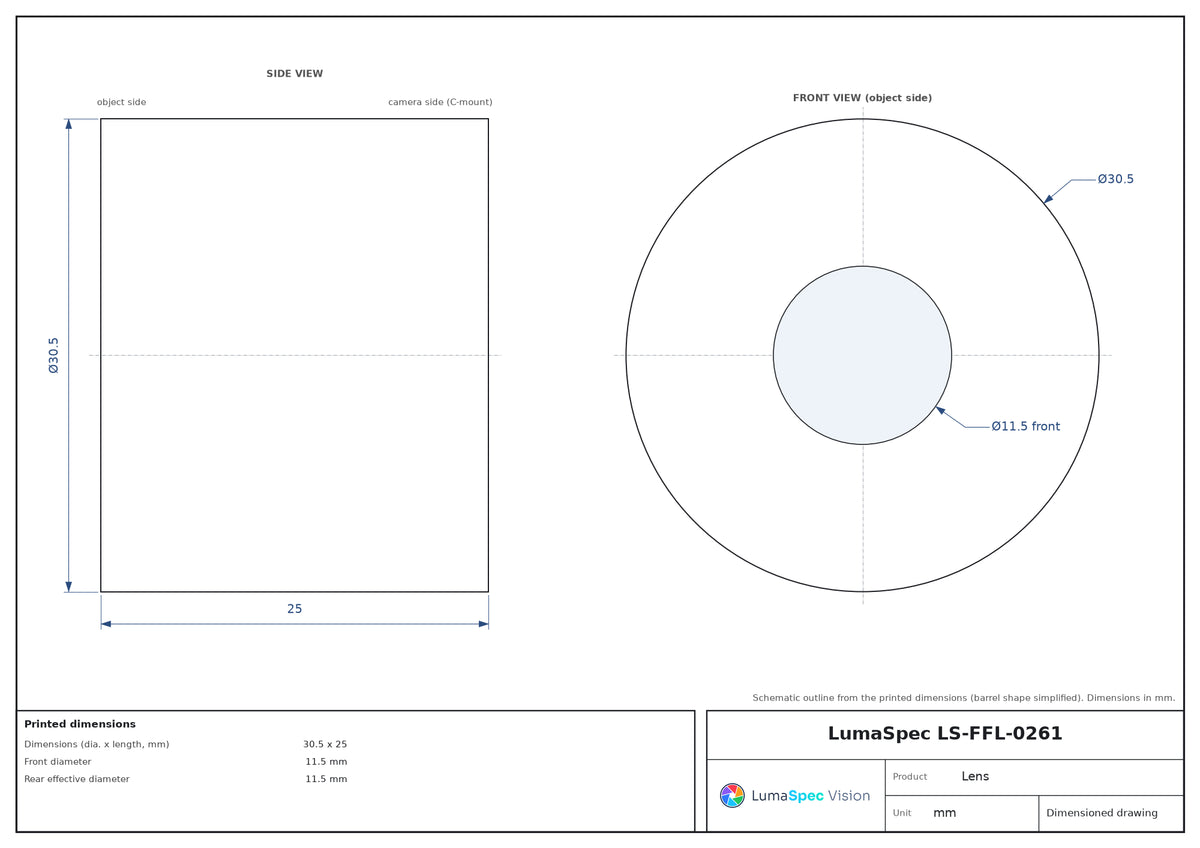

Mechanical
| Mount | C-mount |
|---|---|
| Dimensions (dia. x length, mm) | 30.5 x 25 |
| Front diameter | 11.5 mm |
| Rear effective diameter | 11.5 mm |
| Weight (g) | 48 |
Other models in the Lens series, 2/3", C-mount (S38) series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-0263 | 25 mm | $189.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0265 | 35 mm | $189.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0257 | 8 mm | $209.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0259 | 12 mm | $209.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0267 | 75 mm | $209.00 Quote | Lead time confirmed with your quote | View |
