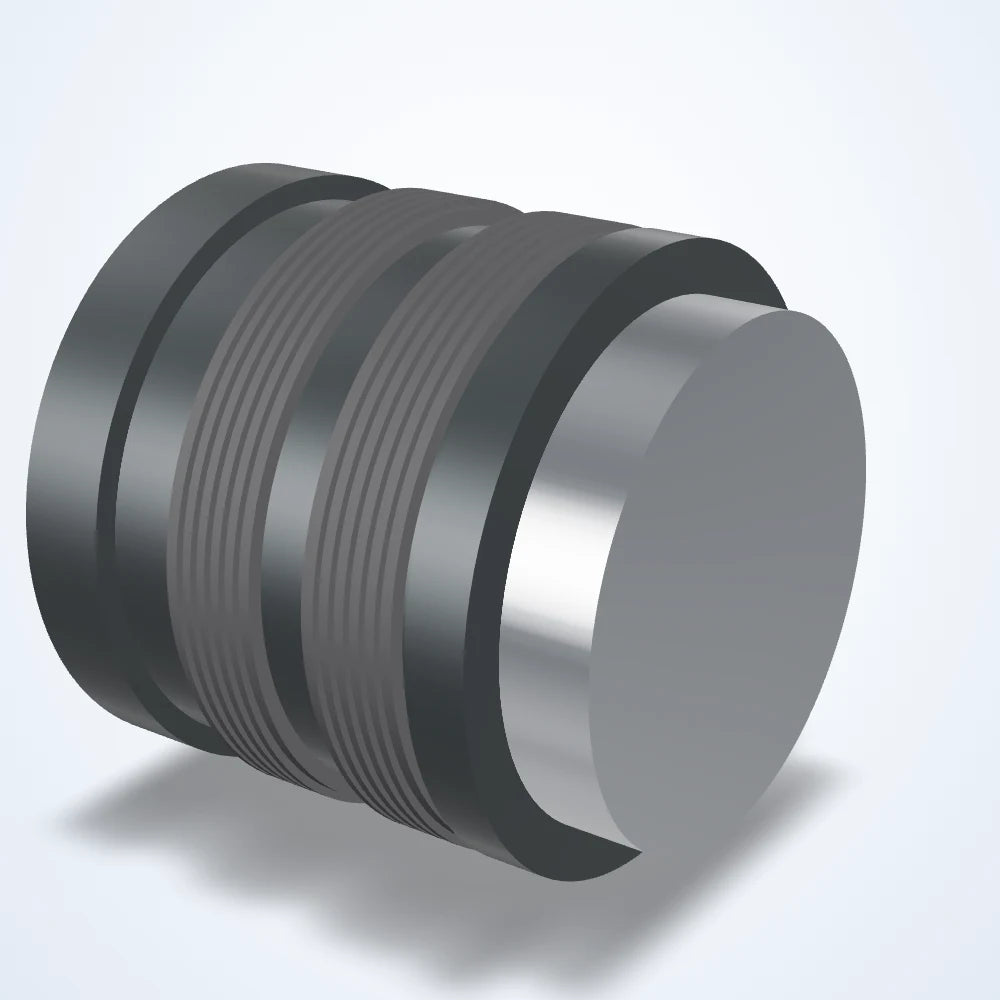

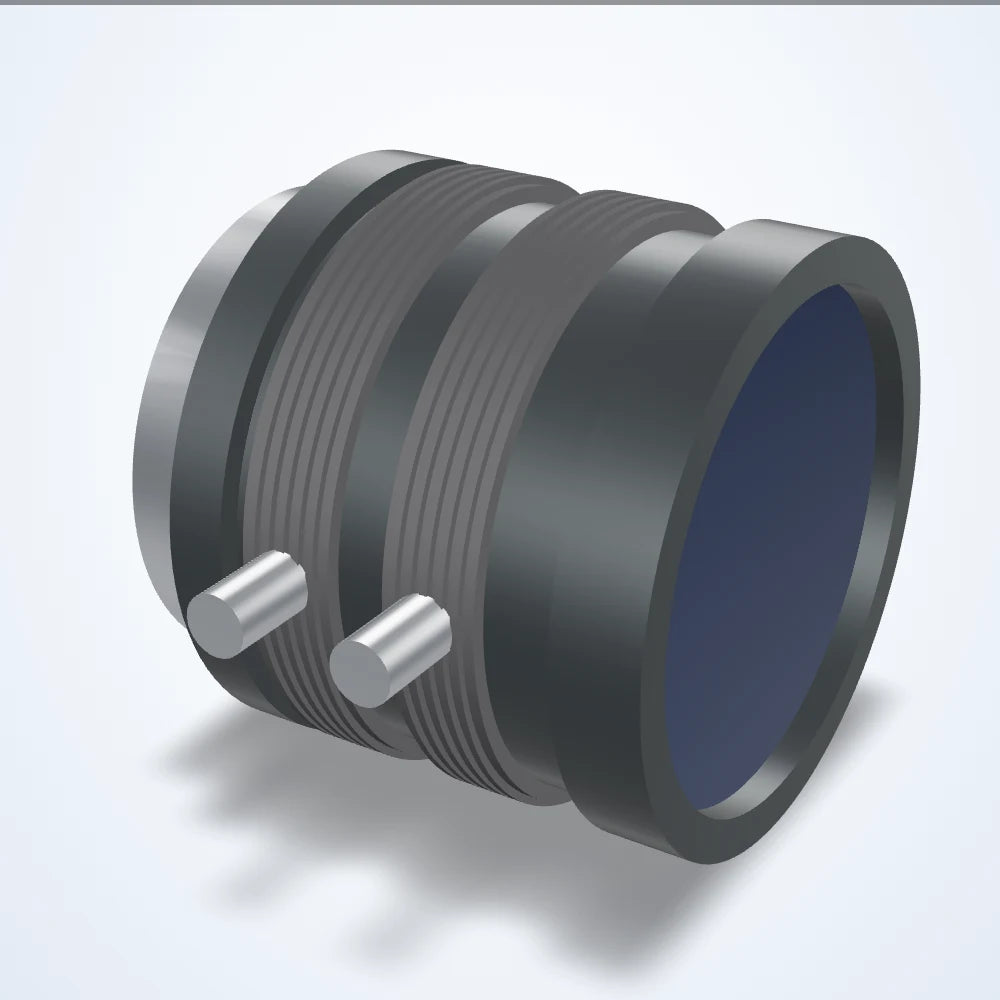

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
25 mm lens, 2/3", C-mount, dimensions 30.5 x 25.5 (LS-FFL-0263)
Model LS-FFL-0263
- Focal length25 mm
- MountC-mount
- Sensor2/3"
- Aperture1.6-16
- Resolution1.3
$189.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0263 |
|---|---|
| Angle of view | 20.0 x 15.0 deg |
| Angle of view 1/2" | 14.6 x 11.0 deg |
| Angle of view 1/3" | 11.0 x 8.2 deg |
| FOV @ 1/2″ | 14.6° × 11° |
| FOV @ 1/3″ | 11° × 8.2° |
| FOV @ 2/3″ | 20° × 15° |
| Flange back | 17.526mm (in air) |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.21 |
| Operation | Focus: manual w/lock / Iris: manual w/lock |
| Spectrum | Visible |
Optics
| Focal length | 25 mm |
|---|---|
| Aperture (F) | 1.6-16 |
| Back focus (in air) | 11.60mm |
| Filter thread | M25.5x0.5 |
| Focus control | Manual with Lock |
| Focus range | 0.21 m - ∞ |
| Focusing range | 0.21m~inf |
| Iris control | Manual with Lock |
Sensor and imaging
| Max. sensor format | 2/3" |
|---|---|
| Resolution (MP) | 1.3 |
Environment and compliance
| Operating temperature | -5~+50 C |
|---|---|
| Operating temperature range | -5 to +50 °C |
Mechanical
| Mount | C-mount |
|---|---|

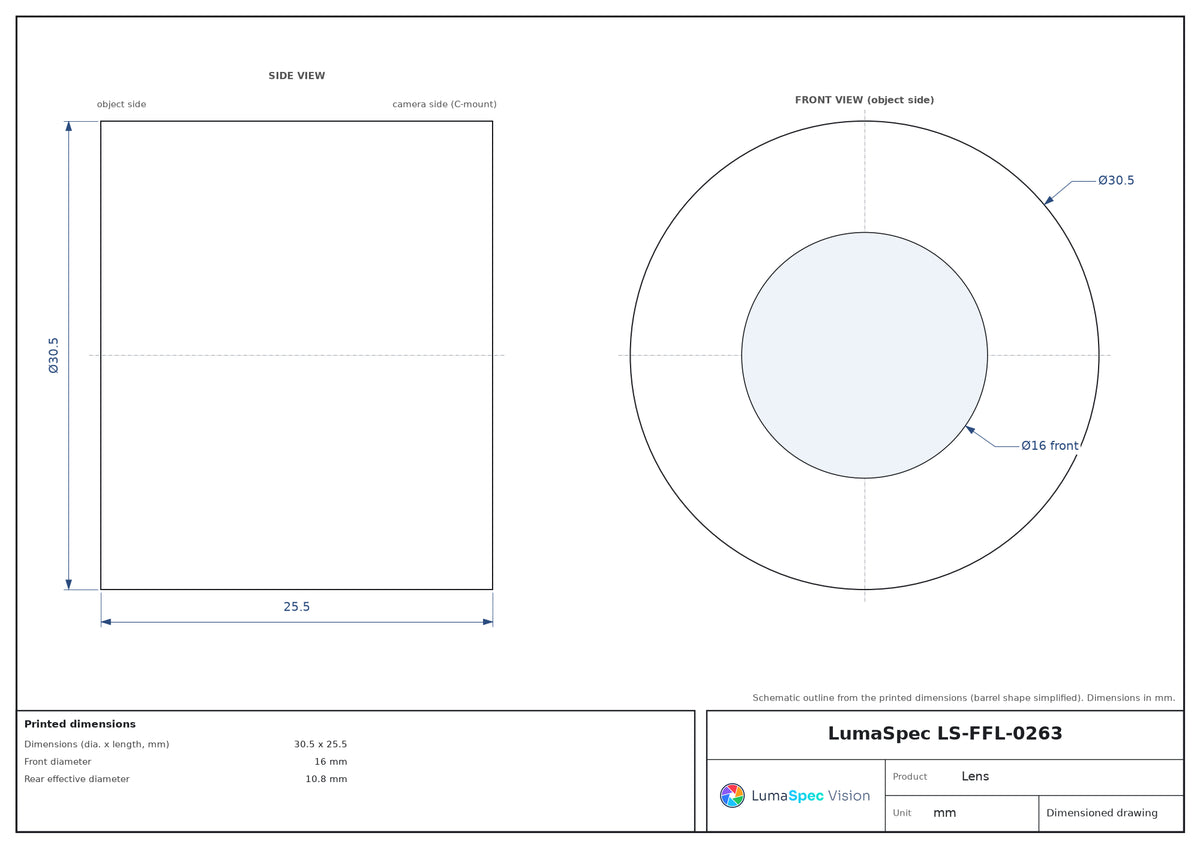

| Dimensions (dia. x length, mm) | 30.5 x 25.5 |
| Front diameter | 16 mm |
| Rear effective diameter | 10.8 mm |
| Weight (g) | 40 |
