Light controllers

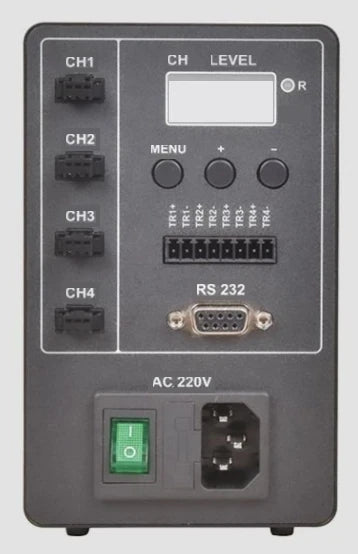

ABS point light controller, 4 ch, 65 W (LS-CTL-0544)
Model LS-CTL-0544
- Channels4
- Output5V
- Total output65 W
- Control9600-115200bps optional
- TriggerEdge + level trigger
$459.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.65 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Support RS232 communication. Single channel adjustable output current, maximum current 1A. Support external trigger mode.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0544 |
|---|---|
| Working mode | 0: Internal trigger; 1: Always on; 2: Millisecond level flicker; 3: Microsecond level flicker |
| Manual page code | P25 |
| Control | digital (buttons, 4-digit display) / RS232 |
Interfaces and I/O
| Communication baud rate | 9600-115200bps optional |
|---|---|
| Communication | RS232 |
Light
| Brightness level | 255 levels |
|---|---|
| Luminous mode | Normal light, normal extinction, strobe |
| Connected light source type | 10mA~1A 5V power supply |
Environment and compliance
| Operating temperature | -5~50°C |
|---|
Electrical
| Maximum output current of single channel | 1A |
|---|---|
| Maximum input voltage | AC220V |
| Maximum output voltage | 5V |
| Overheat protection | no |
| Short-circuit protection | no |
| Millisecond strobe time | 1~999ms |
| Microsecond strobe time | 1~999us |
| Trigger mode | Edge + level trigger |
| Driving mode | constant current |
| Built-in power supply power | 65W |
| Number of channels | 4 |
| Output voltage | 5V |
| Built-in power supply | 65W |
| Max current per channel | 1A |
| Trigger | 5~24V trigger |
| Total output (W) | 65 |
Mechanical
| Dimension | 90×94.6×150mm |
|---|---|
| Mounting | Screw or C45 rail installation |
| Shipping weight | 0.65 kg |
