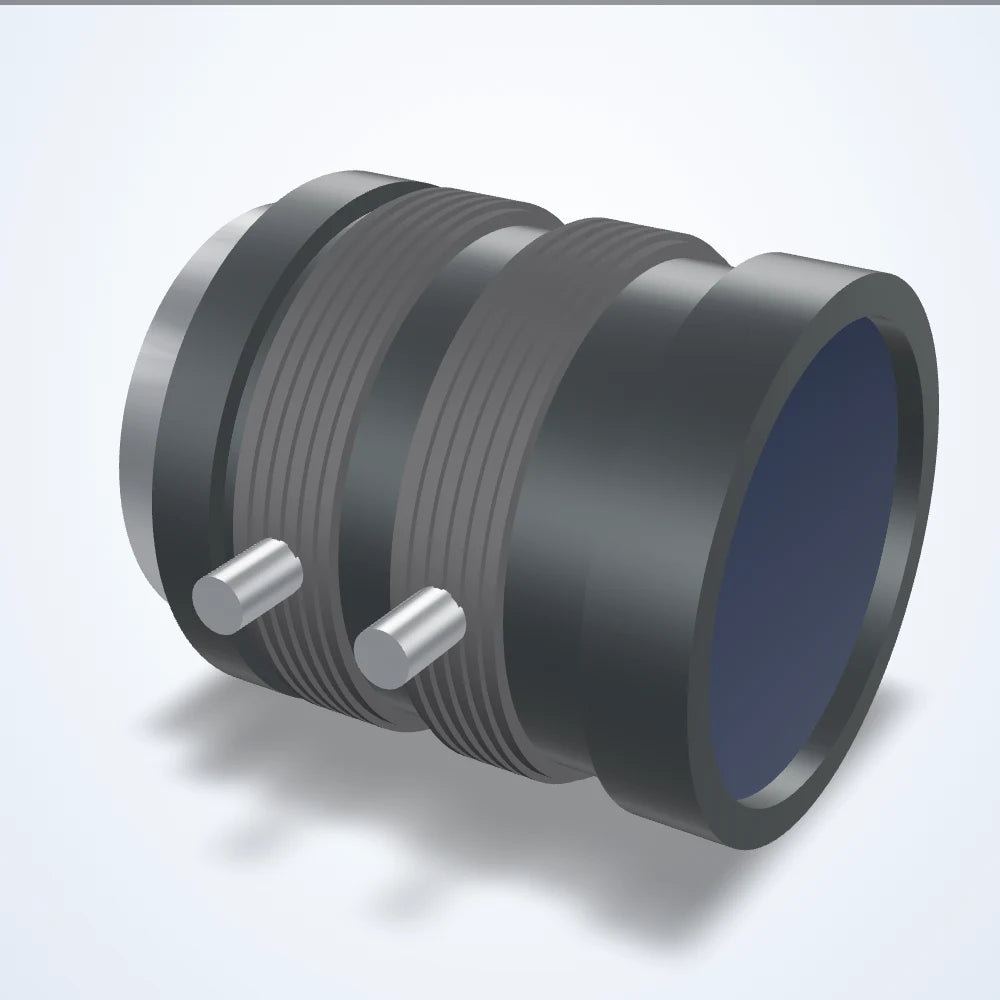

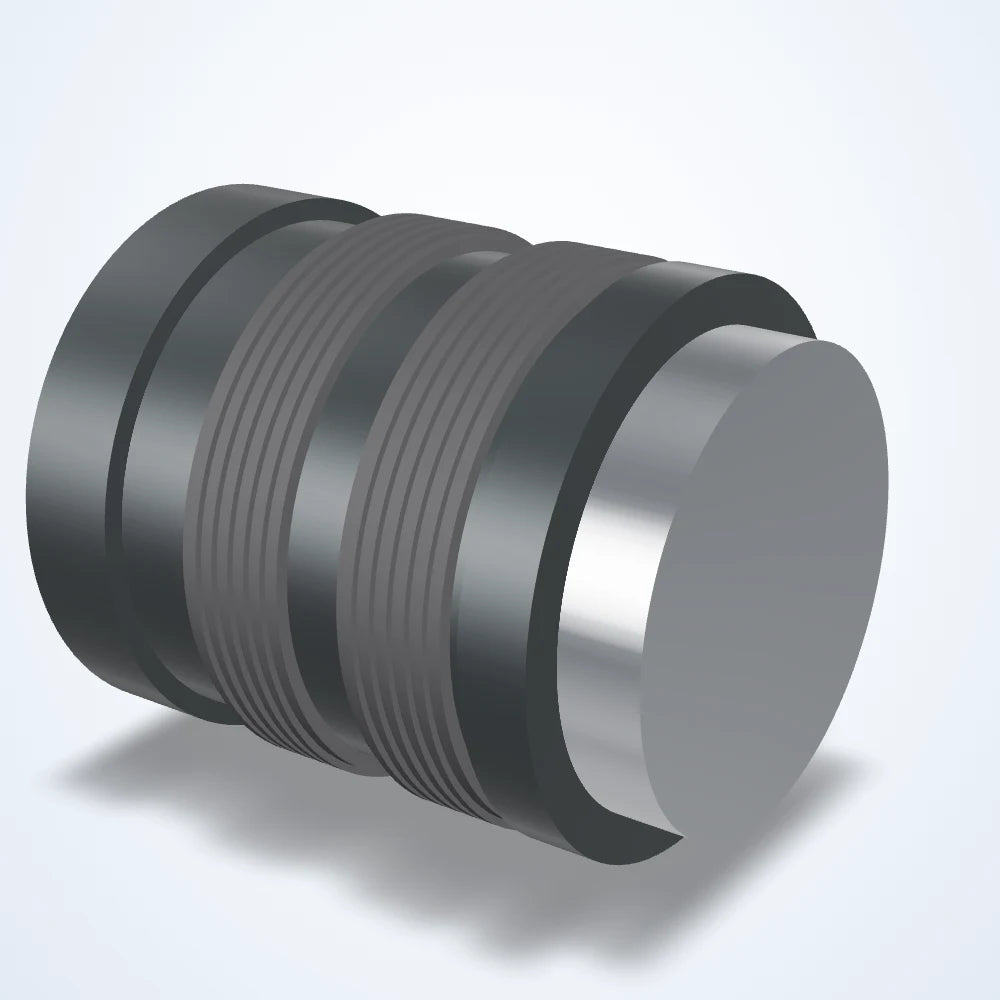

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
35 mm lens, 2/3", C-mount, front diameter 16 mm (LS-FFL-0265)
Model LS-FFL-0265
- Focal length35 mm
- MountC-mount
- Sensor2/3"
- Aperture2.1-22
- Resolution1.3
$189.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0265 |
|---|---|
| Angle of view | 14.3 x 10.8 deg |
| Angle of view 1/2" | 10.4 x 7.8 deg |
| Angle of view 1/3" | 7.8 x 5.9 deg |
| FOV @ 1/2″ | 10.4° × 7.8° |
| FOV @ 1/3″ | 7.8° × 5.9° |
| FOV @ 2/3″ | 14.3° × 10.8° |
| Flange back | 17.526mm (in air) |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.3 |
| Operation | Focus: manual w/lock / Iris: manual w/lock |
Optics
| Focal length | 35 mm |
|---|---|
| Aperture (F) | 2.1-22 |
| Back focus (in air) | 15.53mm |
| Filter thread | M25.5x0.5 |
| Focus control | Manual with Lock |
| Focus range | 0.3 m - ∞ |
| Focusing range | 0.3m~inf |
| Iris control | Manual with Lock |
Sensor and imaging
| Max. sensor format | 2/3" |
|---|---|
| Resolution (MP) | 1.3 |
Environment and compliance
| Operating temperature | -10~+60 C |
|---|---|
| Operating temperature range | -10 to +60 °C |
Mechanical
| Mount | C-mount |
|---|---|

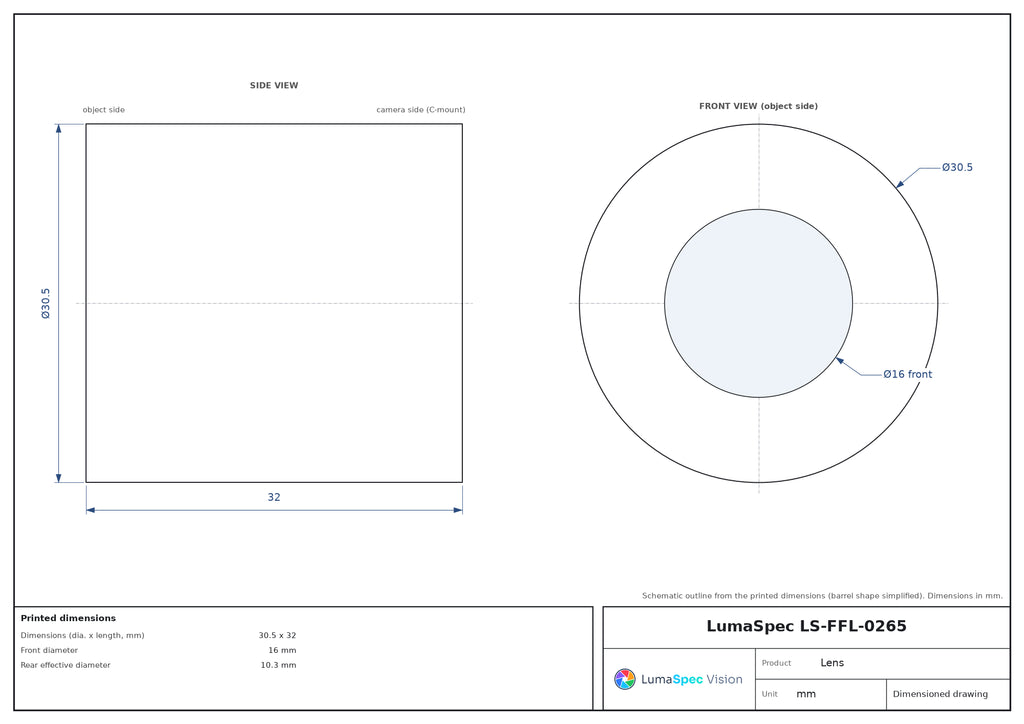

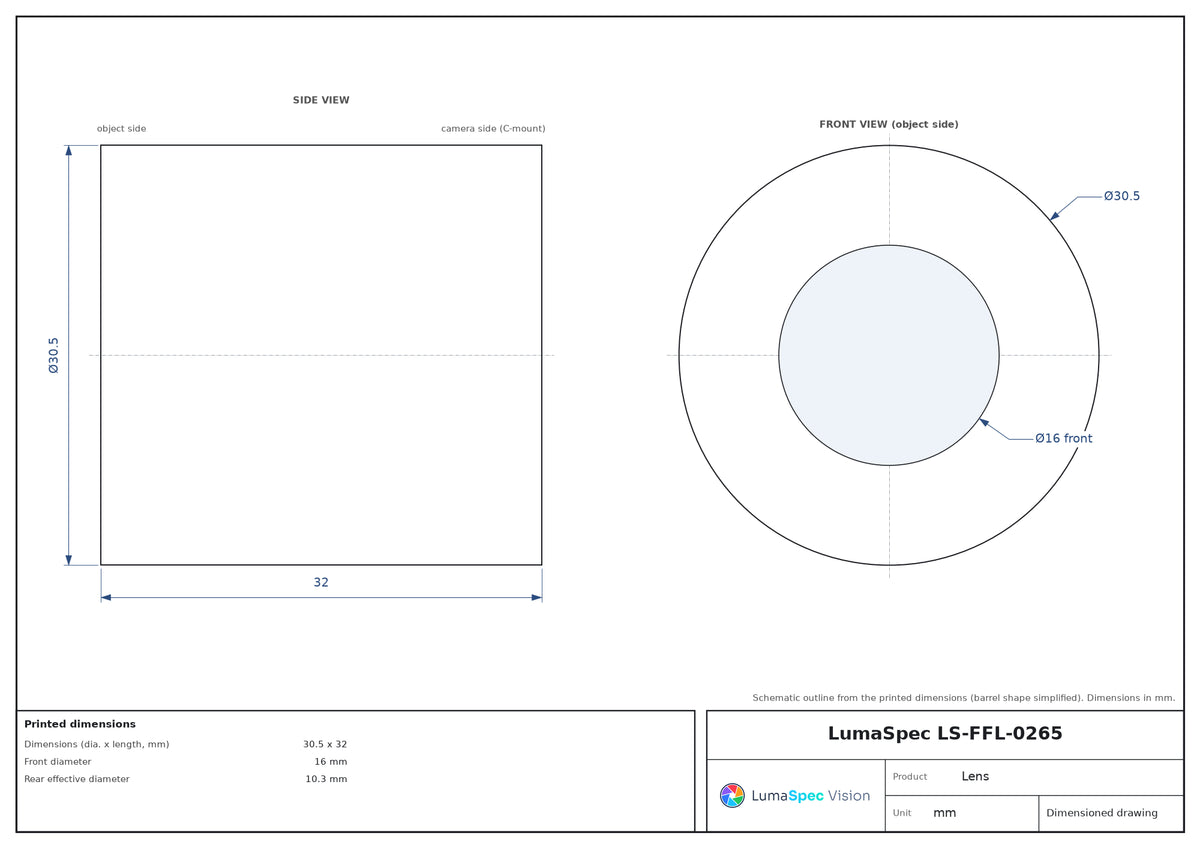

| Dimensions (dia. x length, mm) | 30.5 x 32 |
| Front diameter | 16 mm |
| Rear effective diameter | 10.3 mm |
| Weight (g) | 44 |
Other models in the Lens series, 2/3", C-mount (S38) series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-0261 | 16 mm | $189.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0263 | 25 mm | $189.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0257 | 8 mm | $209.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0259 | 12 mm | $209.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0267 | 75 mm | $209.00 Quote | Lead time confirmed with your quote | View |
