Machine vision lenses
8 mm lens, 2/3", C-mount, 13.7 mm dia., 1.4-16 (LS-FFL-0257)
Model LS-FFL-0257
- Focal length8 mm
- MountC-mount
- Sensor2/3"
- Aperture1.4-16
- Resolution1.3
$209.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0257 |
|---|---|
| Angle of view | 59.3 x 45.2 deg |
| Angle of view 1/2" | 43.6 x 33.1 deg |
| Angle of view 1/3" | 33.1 x 25.0 deg |
| FOV @ 1/2″ | 43.6° × 33.1° |
| FOV @ 1/3″ | 33.1° × 25° |
| FOV @ 2/3″ | 59.3° × 45.2° |
| Flange back | 17.526mm (in air) |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.26 |
| Operation | Focus: manual w/lock / Iris: manual w/lock |
| Rear dia. | 28.5mm |
| Spectrum | Visible |
Optics
| Focal length | 8 mm |
|---|---|
| Aperture (F) | 1.4-16 |
| Back focus (in air) | 11.60mm |
| Filter thread | M25.5x0.5 |
| Focus control | Manual with Lock |
| Focus range | 0.26 m - ∞ |
| Focusing range | 0.26m~inf |
| Iris control | Manual with Lock |
Sensor and imaging
| Max. sensor format | 2/3" |
|---|---|
| Resolution (MP) | 1.3 |
Environment and compliance
| Operating temperature | -10~+45 C |
|---|---|
| Operating temperature range | -10 to +45 °C |
Mechanical
| Mount | C-mount |
|---|---|

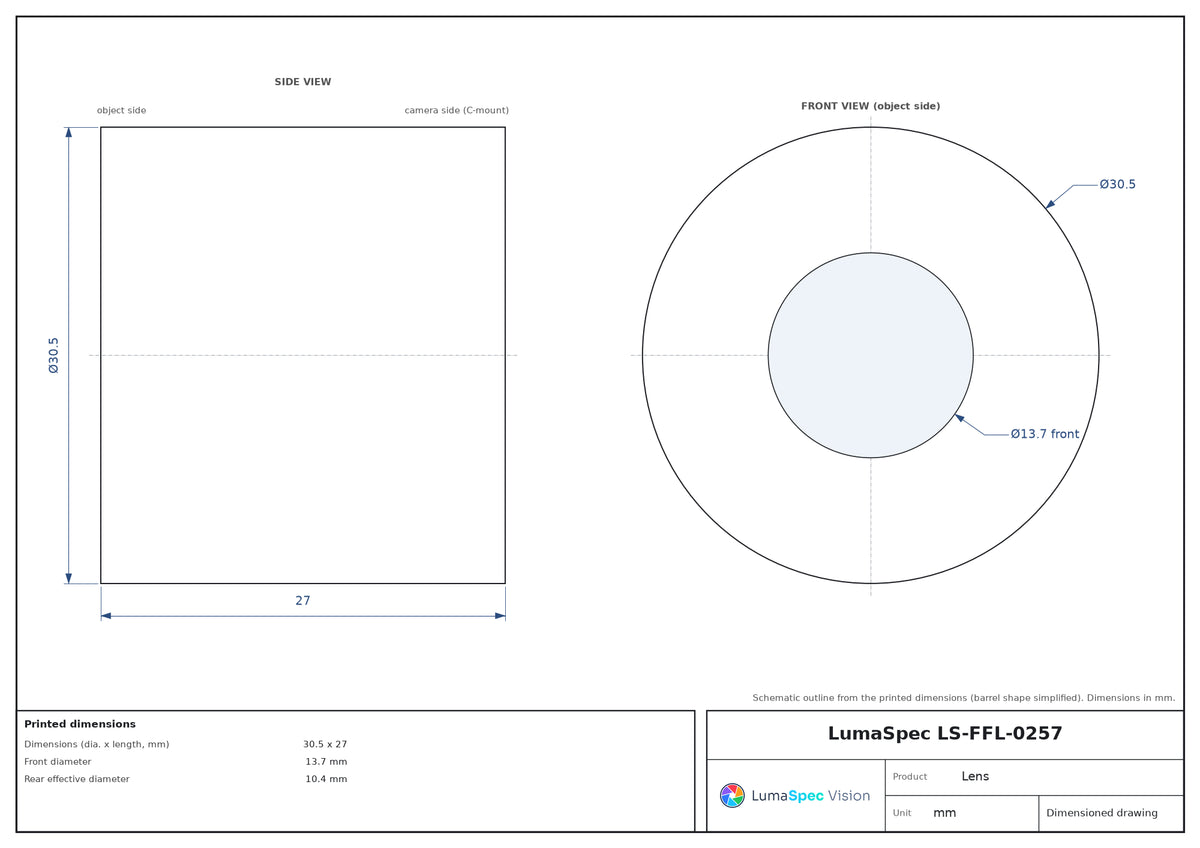

| Dimensions (dia. x length, mm) | 30.5 x 27 |
| Front diameter | 13.7 mm |
| Rear effective diameter | 10.4 mm |
| Weight (g) | 48 |
