Machine vision lenses

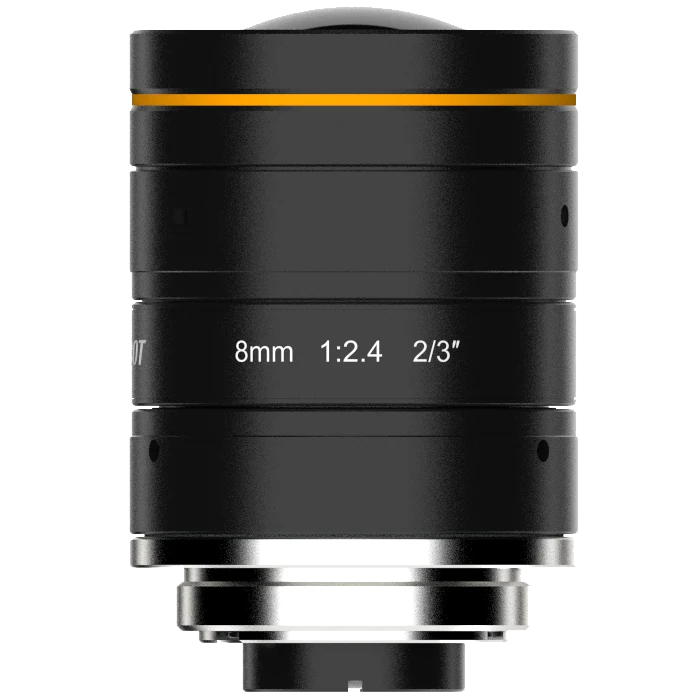

8mm, F2.4, 2/3", 8 MP, C-mount lens (LS-MF0824M-8MPS)
Model LS-MF0824M-8MPS
- Focal length8 mm
- MountC-mount
- Sensor2/3"
- ApertureF2.4 ~ F16
$189.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.18 kg shipping weight
Volume pricing, Net 30 or a formal quote?
8mm, F2.4, 2/3", 8 MP, C-mount lens. High resolution with highly consistent sharpness across the image Low distortion and excellent relative illumination
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-MF0824M-8MPS |
|---|---|
| Minimum object distance | 0.1 m |
Optics
| Focal length | 8 mm |
|---|---|
| F-number | F2.4 ~ F16 |
| Image size | Φ11.0 mm(2/3'') |
| Distortion | -0.96% |
| Field of view | D(11.01mm):69.08°; H(8.45mm):55.10°; V(7.07mm):46.95° |
| Iris control | Manual |
| Focus control | Manual |
Interfaces and I/O
| Connector type | C-Mount |
|---|
Environment and compliance
| Temperature | -20 ~ 70°C |
|---|---|
| Certification | RoHS2.0 |
Mechanical
| Flange back length | 17.526 mm |
|---|---|
| Dimension | Φ32 mm × 40.0 mm |
| Weight | 57.4 g |
| Shipping weight (estimated) | 0.18 kg |
Other models in the MF-8MPS series lenses series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-MF1228M-8MPS | 12 mm · C-mount | $109.00 | 4 in stock | View |
| LS-MF1628M-8MPS | 16 mm · C-mount | $159.00 | 5 in stock | View |
| LS-MF2528M-8MPS | 25 mm · C-mount | $169.00 | 5 in stock | View |
| LS-MF3528M-8MPS | 35 mm · C-mount | $179.00 | 3 in stock | View |
| LS-MF0624M-8MPS | 6 mm · C-mount | $189.00 | 4 in stock | View |
