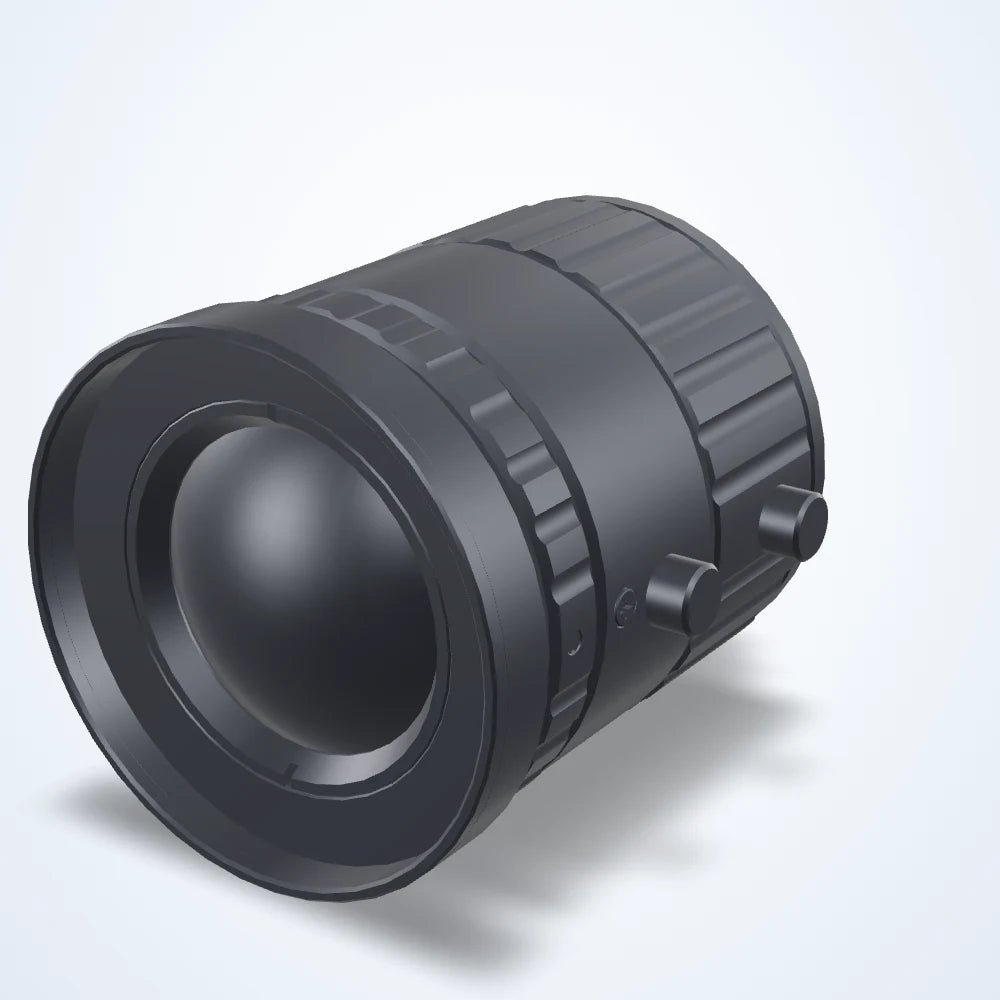

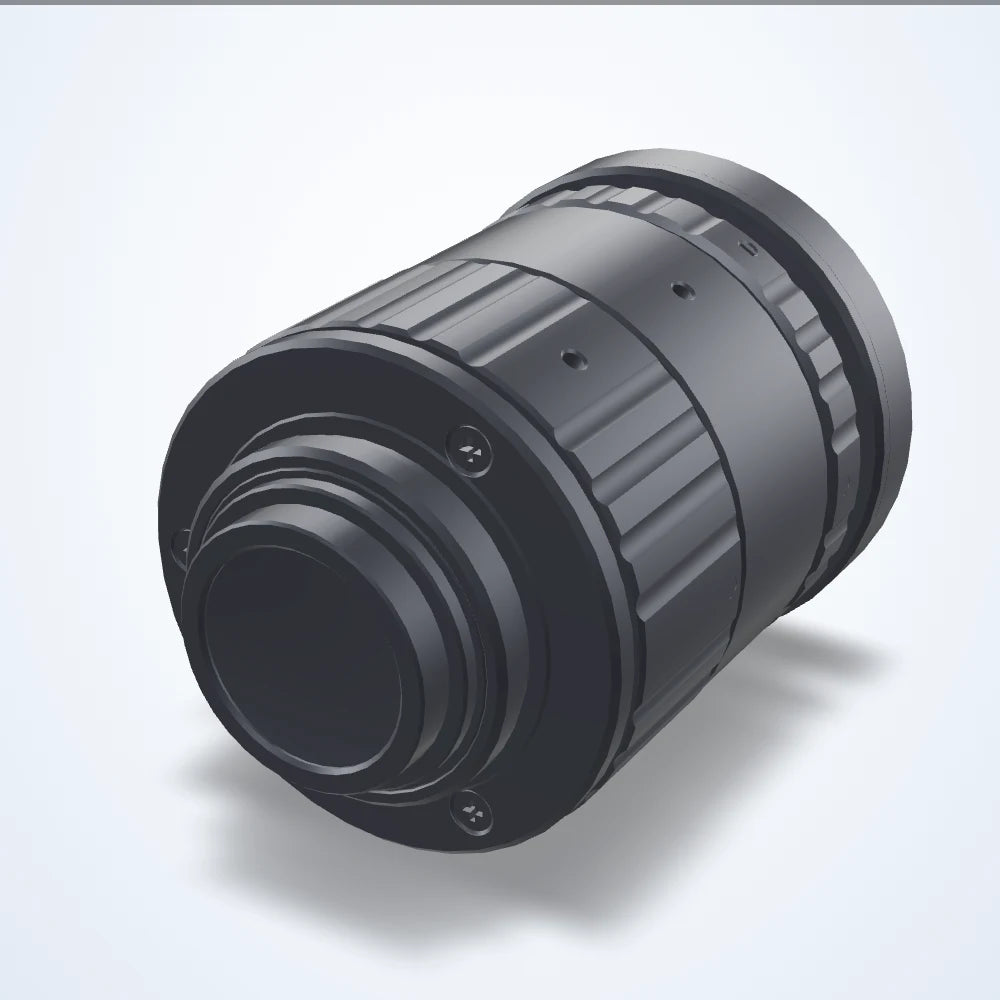

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
12 mm lens, 1", C-mount, Visible (LS-FFL-0049)
Model LS-FFL-0049
- Focal length12 mm
- MountC-mount
- Sensor1"
- Aperturef/2.6
- Resolution20
$659.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras. Minimum object distance 100 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0049 |
|---|---|
| Minimum object distance | 100 mm |
| Aov @ 1/1.8″ h°×v°×d° | 33.7 × 25.5 × 41.5° |
| Aov @ 1″ h°×v°×d° | 56.7 × 44.1 × 67.4° |
| Aov @ 2/3″ h°×v°×d° | 40.7 × 31.00 × 49.8° |
| Lens type | Fixed Focal Length |
| Spectrum | Visible |
| Zoom range | Fixed |
Optics
| Focal length | 12 mm |
|---|---|
| Aperture (max) | f/2.6 |
| Back focal length | 10.6 mm |
| Filter thread | M37.5-0.5 |
| Focus control | Manual |
| Focus range | 0.1 m - ∞ |
| Image circle | 16 mm |
| Image size dimensions | 12.8 mm x 9.6 mm |
| Iris control | Manual |
Sensor and imaging
| Sensor format | 1" |
|---|---|
| Resolution (MP) | 20 |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|
Mechanical
| Mount | C-mount |
|---|---|
| Dimensions | 39 × 39 × 43.5 mm |
| Front diameter | 22.6 mm |
| Rear effective diameter | 15.1 mm |
| Weight | 98.4 |
LS-FFL-0049
See this component from every angle.
CAD-based illustration; finish is representative.
Source CAD
FROM THE PRINTED SPECIFICATIONS
- Focal length
- 12 mm
- Sensor format
- 1"
- Mount
- C-mount

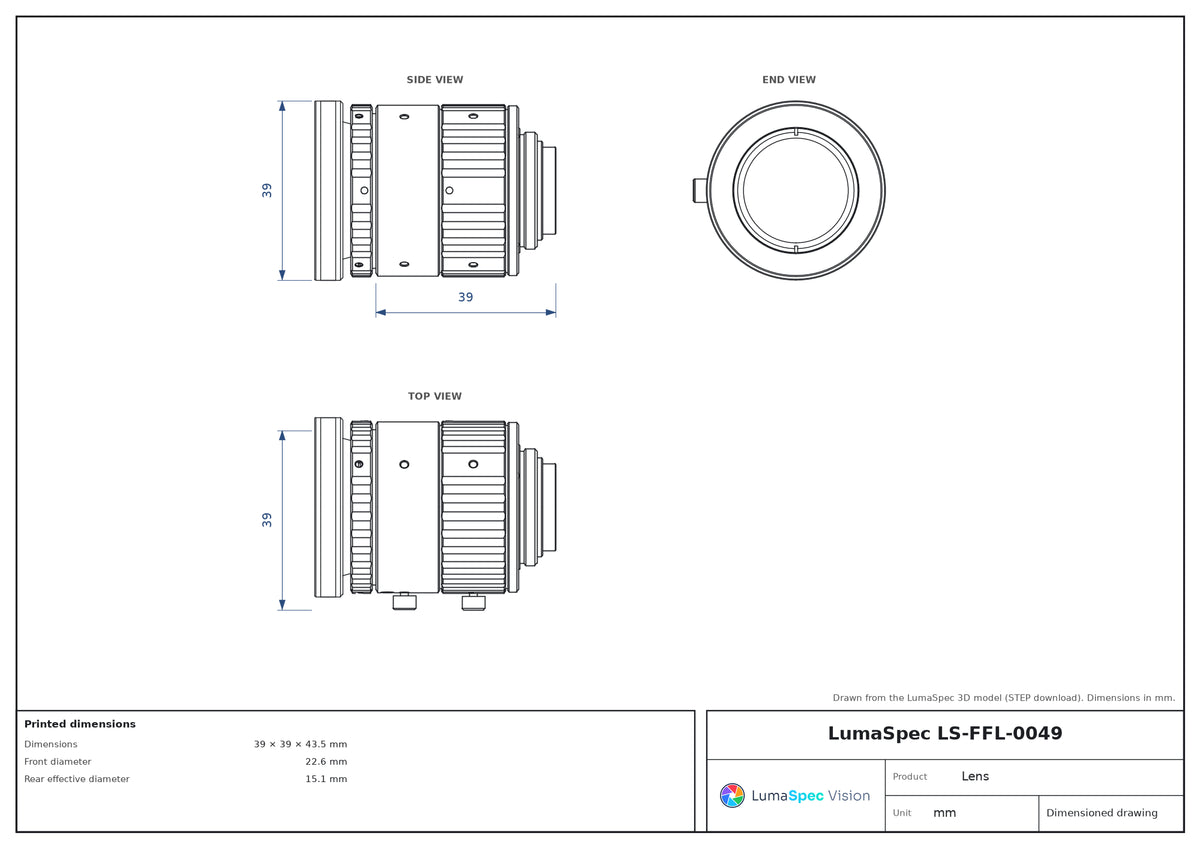

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
