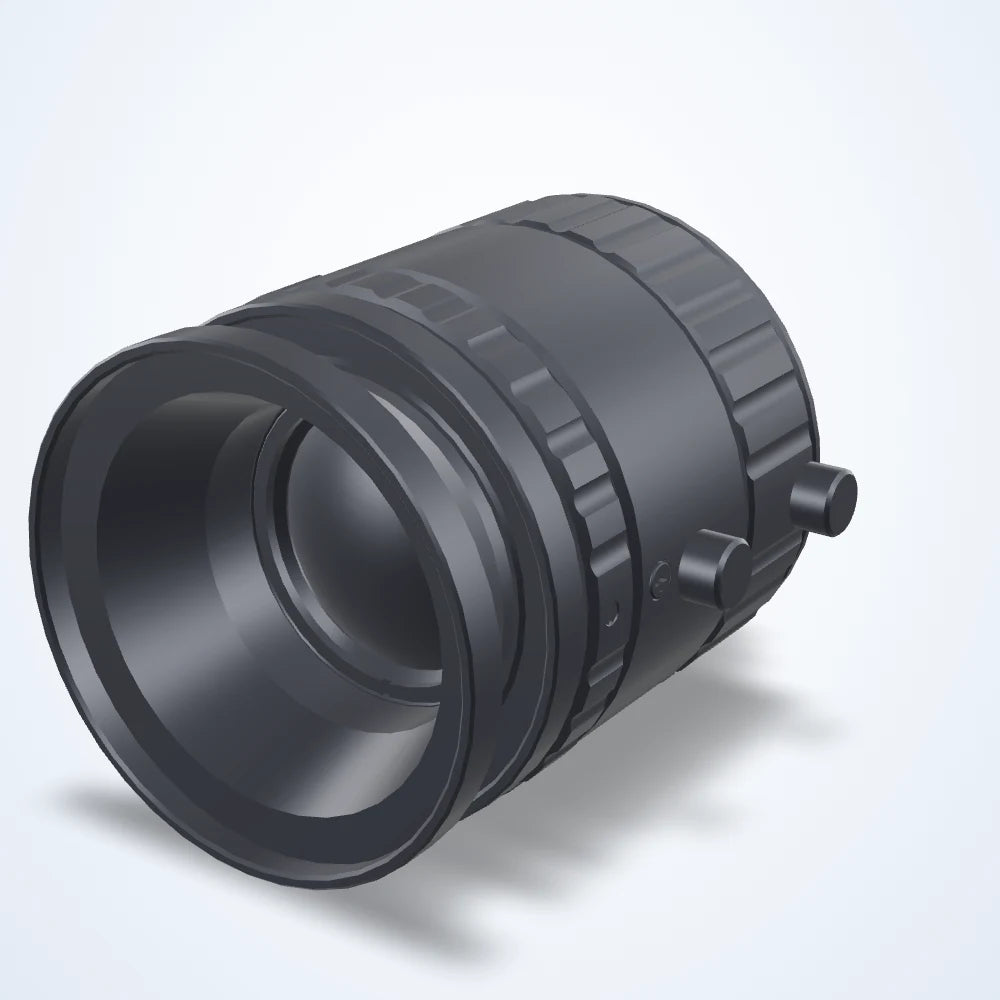

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
25 mm lens, 1", C-mount, Visible, 20 MP (LS-FFL-0053)
Model LS-FFL-0053
- Focal length25 mm
- MountC-mount
- Sensor1"
- Aperturef/2
- Resolution20
$659.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras. Minimum object distance 150 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0053 |
|---|---|
| Minimum object distance | 150 mm |
| Aov @ 1/1.8″ h°×v°×d° | 16.4 × 12.4 × 20.5° |
| Aov @ 1″ h°×v°×d° | 28.8 × 21.8 × 35.5° |
| Aov @ 2/3″ h°×v°×d° | 20.0 × 15.1 × 24.9° |
| Lens type | Fixed Focal Length |
| Spectrum | Visible |
| Zoom range | Fixed |
Optics
| Focal length | 25 mm |
|---|---|
| Aperture (max) | f/2 |
| Back focal length | 9.1 mm |
| Filter thread | M35.5-0.5 |
| Focus control | Manual |
| Focus range | 0.15 m - ∞ |
| Image circle | 16 mm |
| Image size dimensions | 12.8 mm x 9.6 mm |
| Iris control | Manual |
Sensor and imaging
| Sensor format | 1" |
|---|---|
| Resolution (MP) | 20 |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|
Mechanical
| Mount | C-mount |
|---|---|

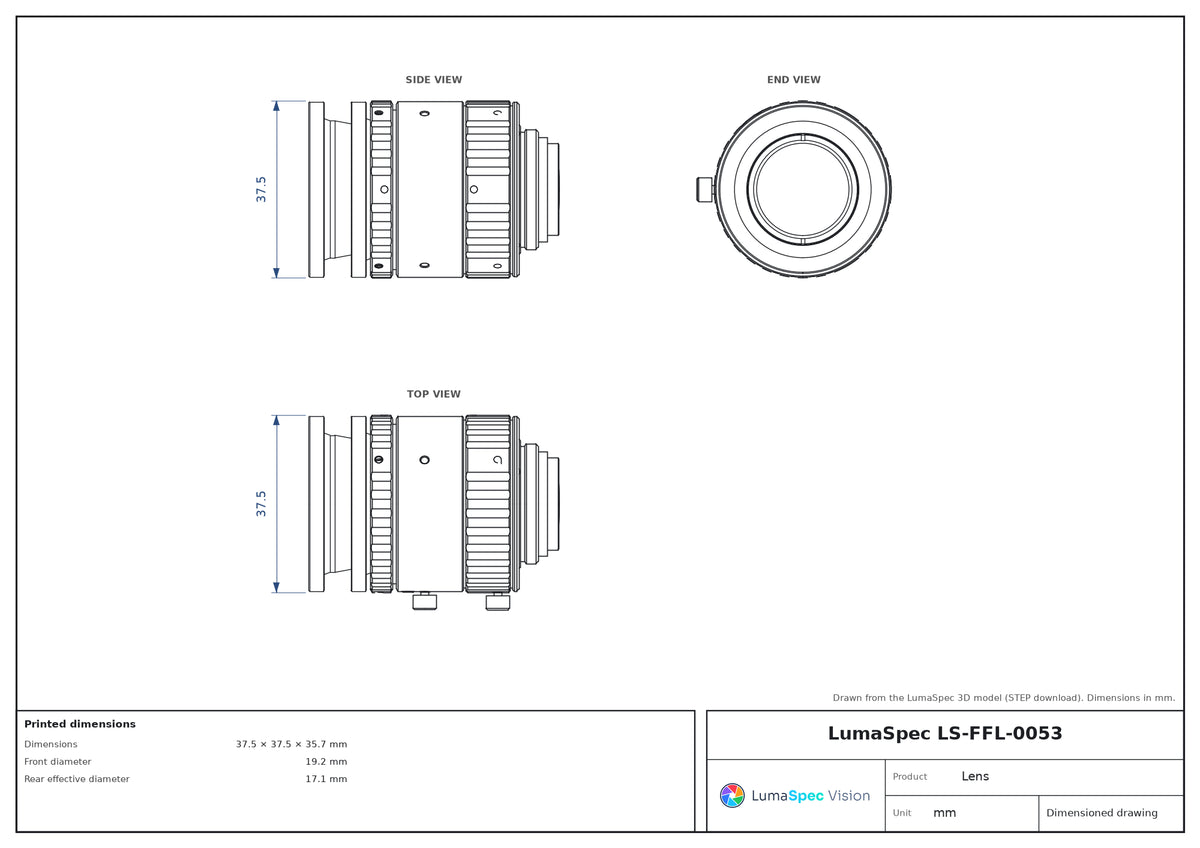

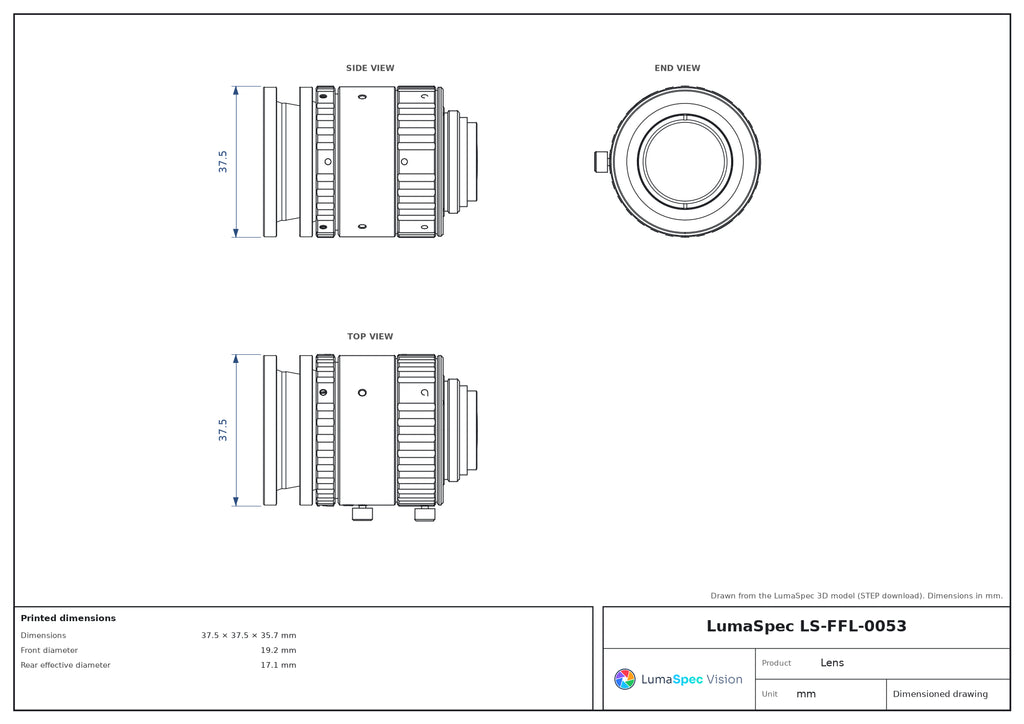

| Dimensions | 37.5 × 37.5 × 35.7 mm |
| Front diameter | 19.2 mm |
| Rear effective diameter | 17.1 mm |
| Weight | 73.1 |

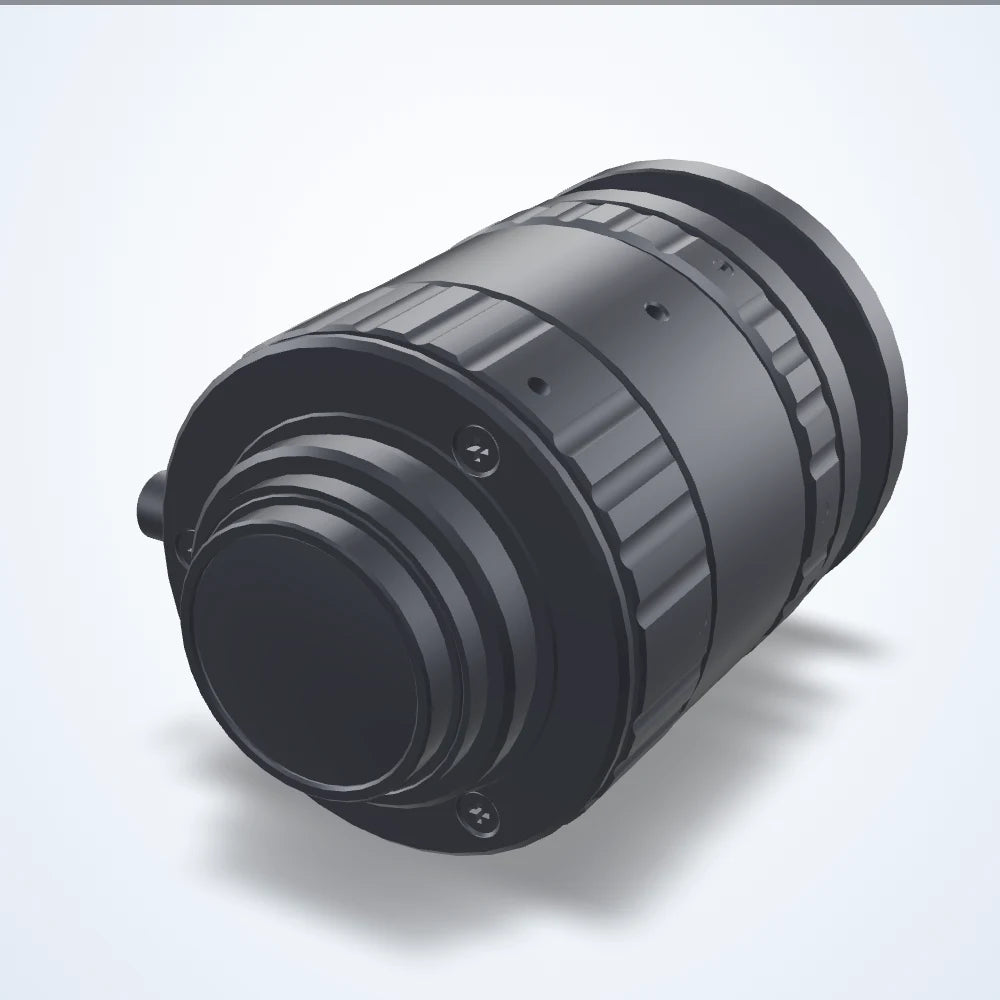

LS-FFL-0053
See this component from every angle.
CAD-based illustration; finish is representative.
Source CAD
FROM THE PRINTED SPECIFICATIONS
- Focal length
- 25 mm
- Sensor format
- 1"
- Mount
- C-mount
Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
Other models in the Lens series, 1", C-mount (S06) series
See all 5 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-0049 | 12 mm | $659.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0050 | 16 mm | $659.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0056 | 35 mm | $659.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0058 | 50 mm | $659.00 Quote | Lead time confirmed with your quote | View |
