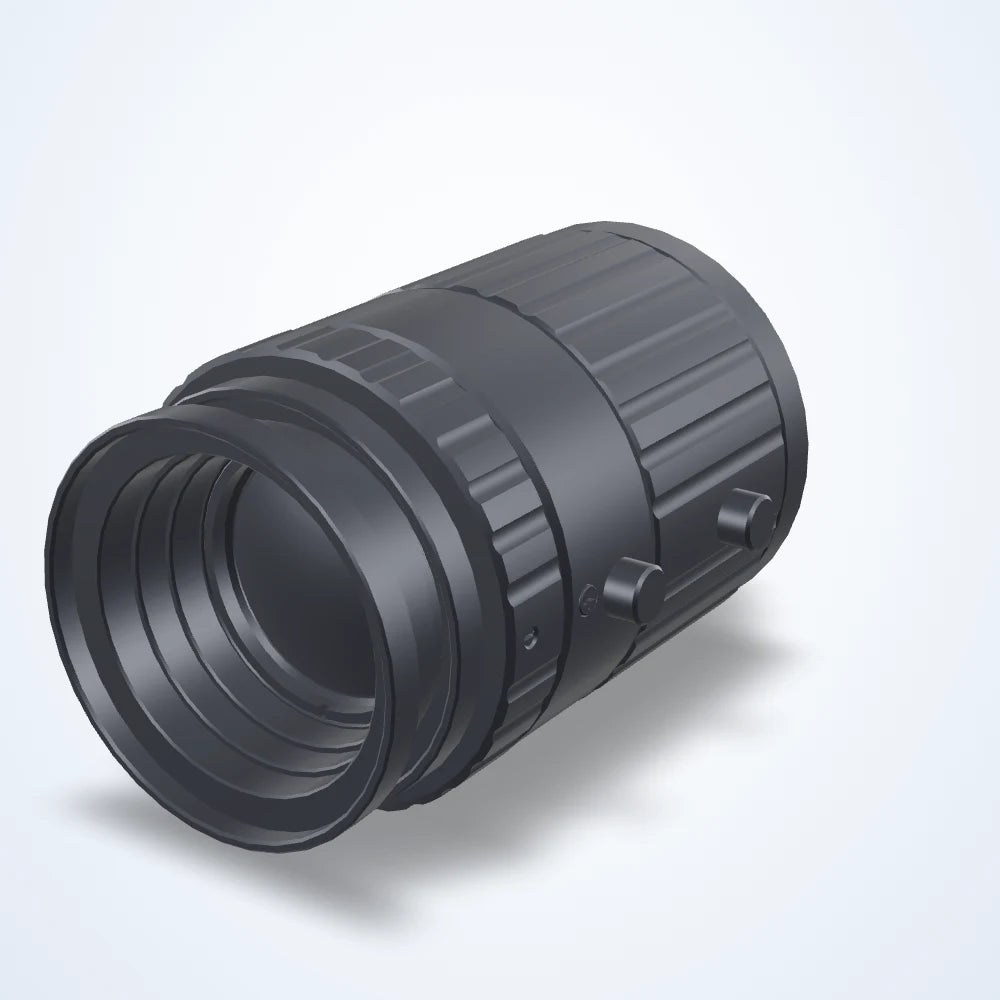

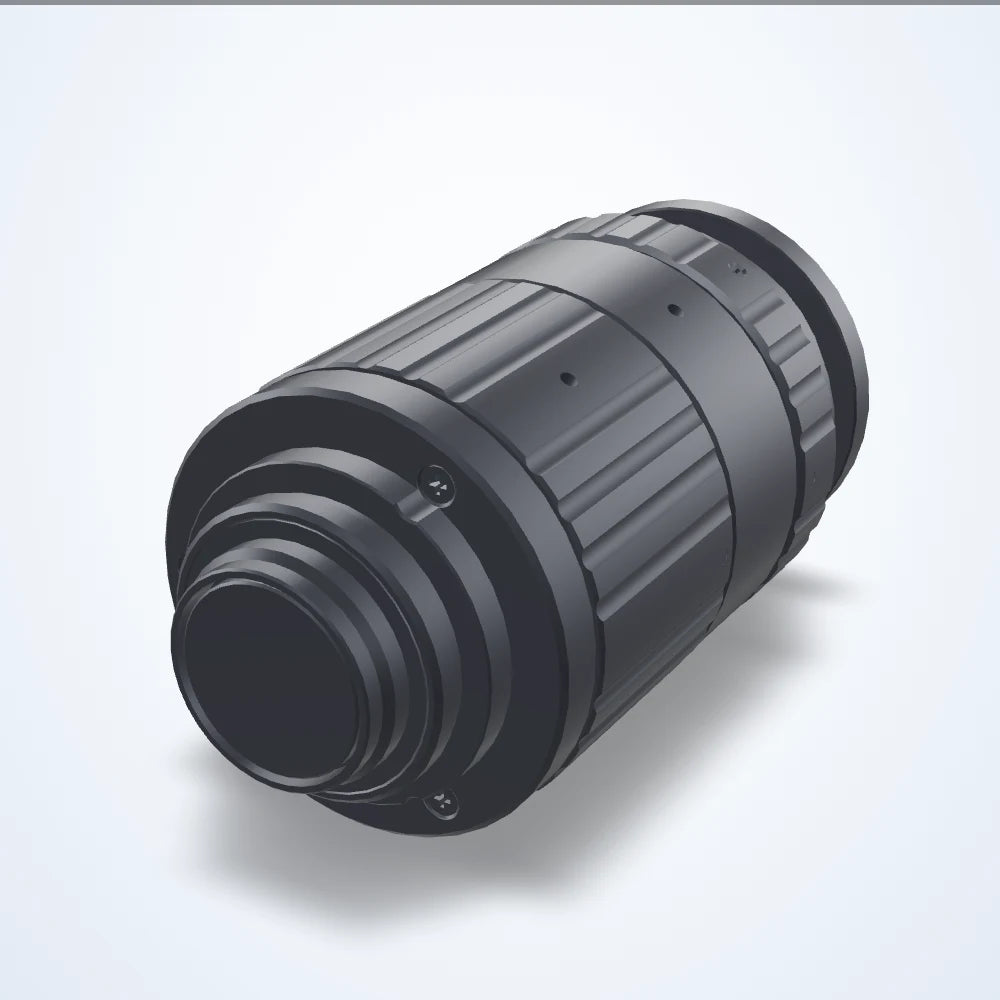

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
35 mm lens, 1", C-mount, Visible, 20 MP (LS-FFL-0056)
Model LS-FFL-0056
- Focal length35 mm
- MountC-mount
- Sensor1"
- Aperturef/2.2
- Resolution20
$659.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras. Minimum object distance 200 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0056 |
|---|---|
| Minimum object distance | 200 mm |
| Aov @ 1/1.8″ h°×v°×d° | 11.8 × 8.9 × 14.7° |
| Aov @ 1″ h°×v°×d° | 20.8 × 15.7 × 25.8° |
| Aov @ 2/3″ h°×v°×d° | 14.4 × 10.8 × 17.9° |
| Lens type | Fixed Focal Length |
| Spectrum | Visible |
| Zoom range | Fixed |
Optics
| Focal length | 35 mm |
|---|---|
| Aperture (max) | f/2.2 |
| Back focal length | 9.7 mm |
| Filter thread | M34-0.5 |
| Focus control | Manual |
| Focus range | 0.2 m - ∞ |
| Image circle | 16 mm |
| Image size dimensions | 12.8 mm x 9.6 mm |
| Iris control | Manual |
Sensor and imaging
| Sensor format | 1" |
|---|---|
| Resolution (MP) | 20 |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|
Mechanical
| Mount | C-mount |
|---|---|

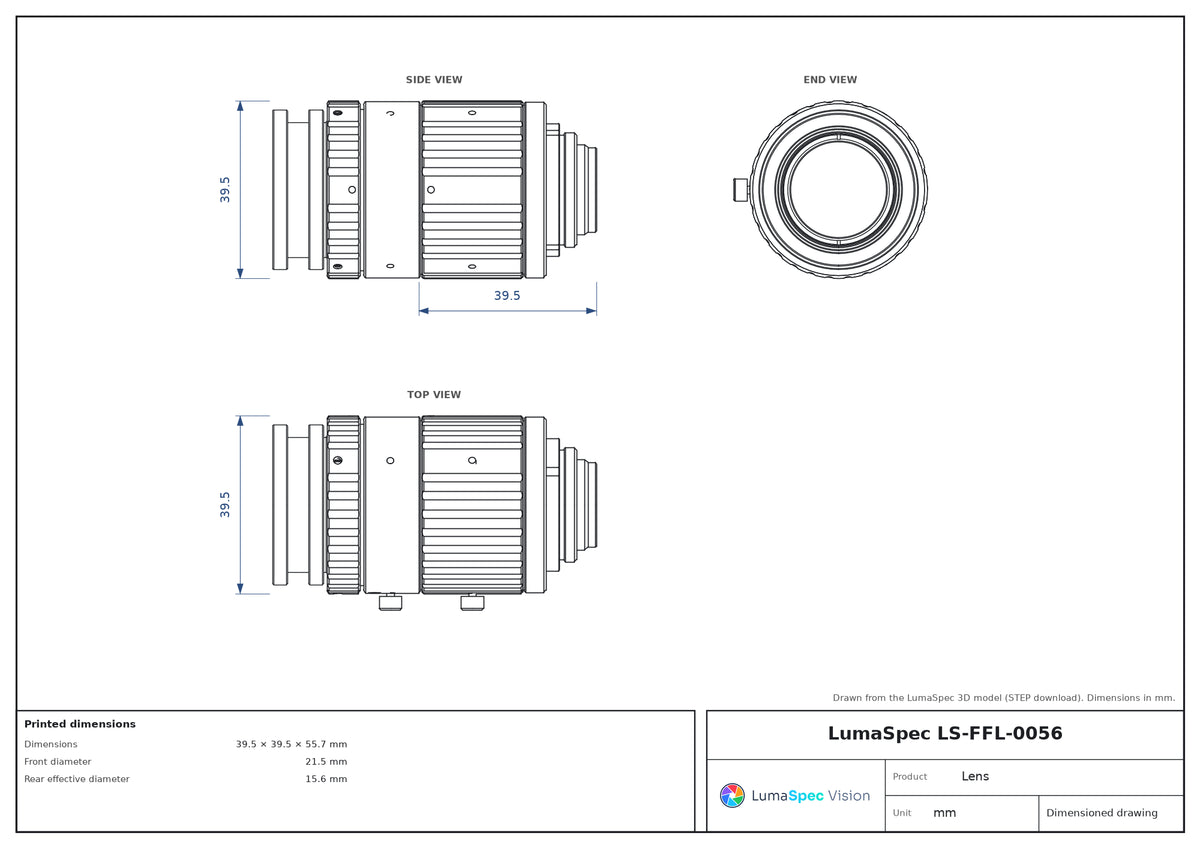

| Dimensions | 39.5 × 39.5 × 55.7 mm |
| Front diameter | 21.5 mm |
| Rear effective diameter | 15.6 mm |
| Weight | 118.2 |
