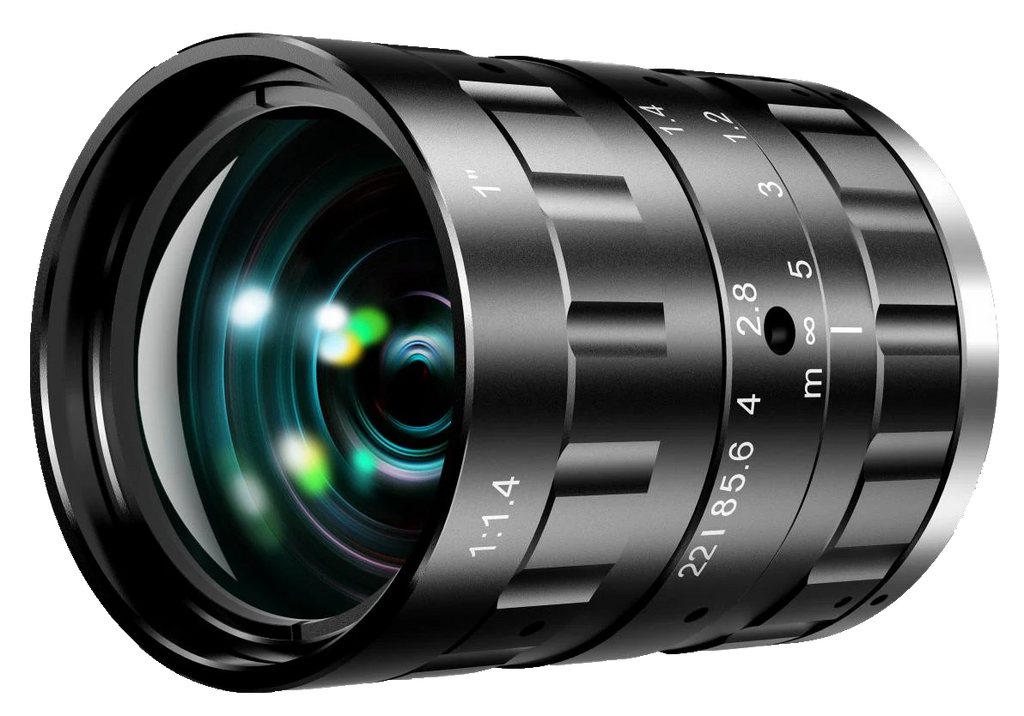

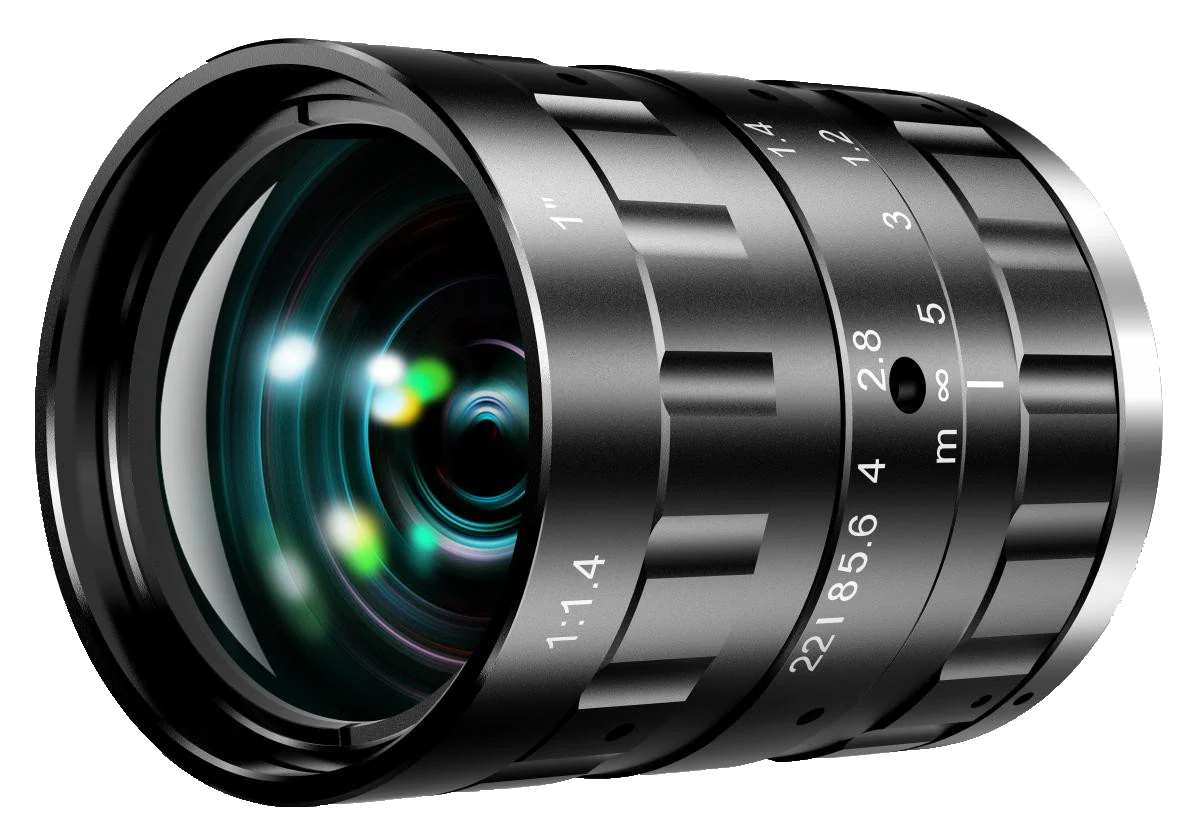

35mm, F1.4, 1", 900-1700nm, C-mount, SWIR lens (LS-KF3514M-5MP-NIR)
  • 35mm, F1.4, 1", 900-1700nm, C-mount, SWIR lens (LS-KF3514M-5MP-NIR)
  • LS-KF3514M-5MP-NIR dimensions (mm)

Machine vision lenses

35mm, F1.4, 1", 900-1700nm, C-mount, SWIR lens (LS-KF3514M-5MP-NIR)

Model LS-KF3514M-5MP-NIR

  • Focal length35mm
  • MountC-mount
  • Sensor1"
  • ApertureF1.4
$449.00

In stock - ships the same business day (5 available, order by 2 PM ET)

0.31 kg shipping weight

Volume pricing, Net 30 or a formal quote?

35mm, F1.4, 1", 900-1700nm, C-mount, SWIR lens. Maximum sensor format 1'' Large-aperture design for high light throughput

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-KF3514M-5MP-NIR
Minimum object distance0.3m

Optics

Focal length35mm
F-numberF1.4
Image size1”
Distortion-0.52%
Iris controlManual
Focus controlManual
Filter threadM34×0.5

Interfaces and I/O

Connector typeC-Mount

Environment and compliance

Temperature-10 ~ 50°C
CertificationRoHS2.0

Mechanical

Flange back length17.526mm
DimensionΦ36.5×46.73mm
Shipping weight (estimated)0.31 kg
