Machine vision lenses

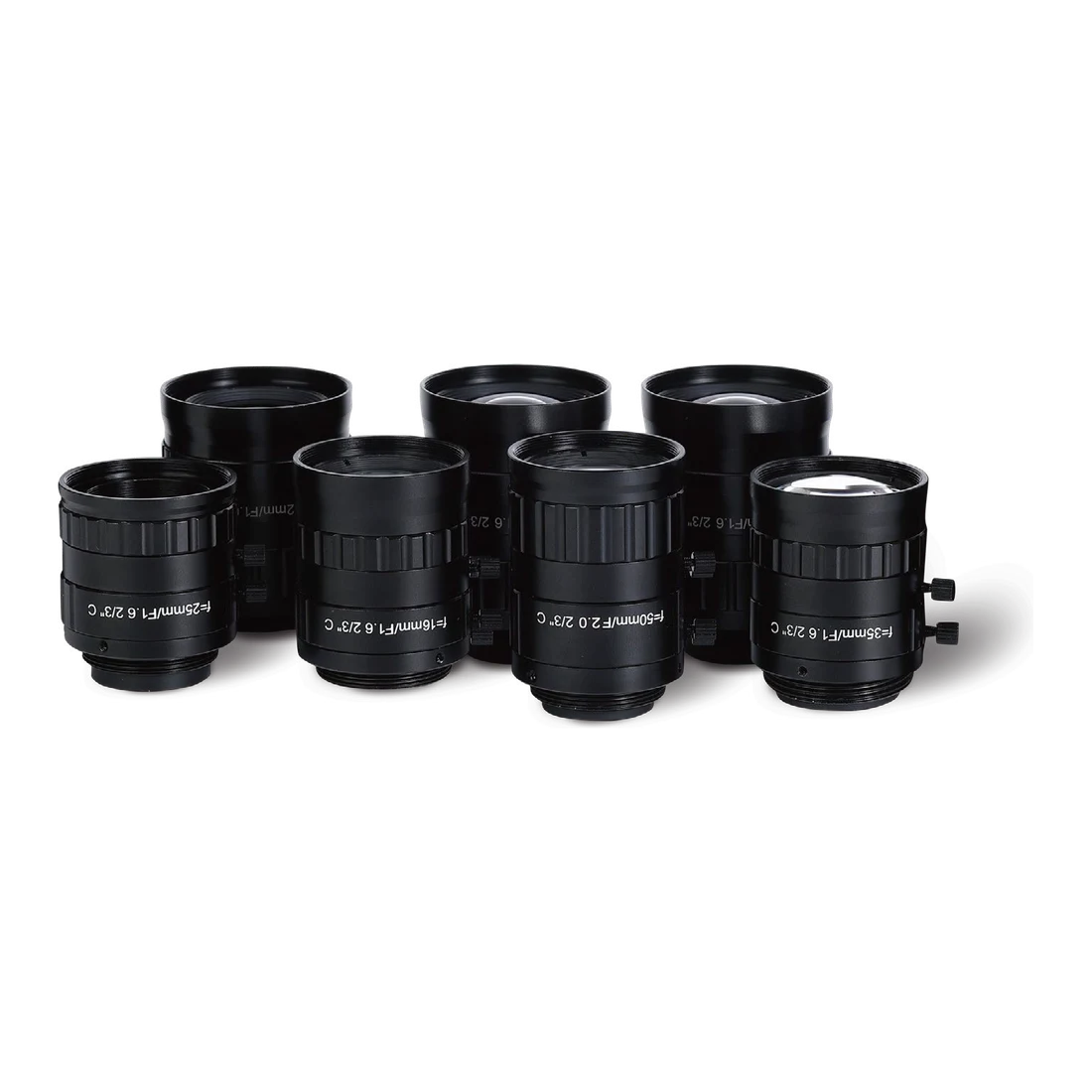

8 mm, 2/3", 12MP, C-mount Machine Vision Lens (LS-XTY085C)
Model LS-XTY085C
- Focal length8 mm
- MountC-mount
- Sensor2/3"
- Working distance150-INF.
$79.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.3 kg shipping weight
Volume pricing, Net 30 or a formal quote?
8 mm, 2/3", 12MP, C-mount Machine Vision Lens. 2/3 Inch 12 MP Industrial Lens.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-XTY085C |
|---|
Optics
| Focal length (mm) | 8 |
|---|---|
| Iris (F/#) | 2.8-11 |
| Working distance (mm) | 150-INF. |
| Distortion (%) | < 1.19 |
| Relative illumination (%) | > 70 |
| Format size (") | 2/3 |
Mechanical
| Mount | C |
|---|---|
| Shipping weight (estimated) | 0.30 kg |
Other models in the 2/3 inch 12MP industrial lens (XTY..5C / SWD..5C) series
See all 8 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-XTY125C | 12 mm, 2/3", 12MP, C-mount | $79.00 | 3 in stock | View |
| LS-XTY165C | 16 mm, 2/3", 12MP, C-mount | $89.00 | 2 in stock | View |
| LS-XTY255C | 25 mm, 2/3", 12MP, C-mount | $99.00 | 5 in stock | View |
| LS-XTY355C | 35 mm, 2/3", 12MP, C-mount | $109.00 | 3 in stock | View |
| LS-SWD355C | 35 mm, 2/3", 12MP, C-mount | $109.00 | 2 in stock | View |
| LS-XTY505C | 50 mm, 2/3", 12MP, C-mount | $129.00 | 3 in stock | View |
| LS-SWD505C | 50 mm, 2/3", 12MP, C-mount | $129.00 | 4 in stock | View |
