Machine vision lenses

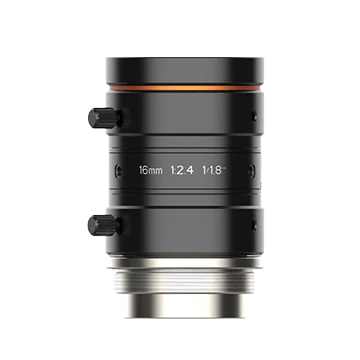

16mm, F2.4, 1/1.8", 10MP Lens, C-Mount (LS-HF1624M-10MP)
Model LS-HF1624M-10MP
- Focal length16 mm
- MountC-mount
- Sensor1/1.8"
- ApertureF2.4 to F16
$89.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.2 kg shipping weight
Volume pricing, Net 30 or a formal quote?
16mm, F2.4, 1/1.8", 10MP Lens, C-Mount. Ultra high resolution and consistency of image clarity Bigger aperture, lower distortion and higher relative illumination rate
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-HF1624M-10MP |
|---|---|
| Minimum object distance | 0.1 m |
| Close-up with extension tube | 10 mm tube, near focus: WD 6.6 mm, magnification -0.778; 10 mm tube, far focus: WD 11.5 mm, magnification -0.607; 5 mm tube, near focus: WD 20.6 mm, magnification -0.459; 5 mm tube, far focus: WD 38.3 mm, magnification -0.305; 2 mm tube, near focus: WD 45.2 mm, magnification -0.267; 2 mm tube, far focus: WD 118 mm, magnification -0.123; 1 mm tube, near focus: WD 64 mm, magnification -0.202; 1 mm tube, far focus: WD 250 mm, magnification -0.062 |
Optics
| Focal length | 16 mm |
|---|---|
| F-number | F2.4 to F16 |
| Image size | Ø9 mm (1/1.8") |
| Distortion | –0.02% |
| Field of view | D (8.96 mm): 30.17°; H (7.38 mm): 25.07°; V (4.92 mm): 16.92° |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M27 × 0.5 |
| Magnification at working distance (mm) | 100: -0.138; 150: -0.097; 200: -0.075; 250: -0.061; 300: -0.051; 350: -0.044; 400: -0.039; 450: -0.035; 500: -0.032; 550: -0.029; 600: -0.027; 650: -0.025; 700: -0.023; 800: -0.020; 900: -0.018; 1000: -0.016 |
| Field of view H x V (mm) at working distance (mm), 1/1.8" sensor (7.38 x 4.92 mm) | 100: 53.71 x 35.74; 150: 76.51 x 50.93; 200: 99.14 x 66.01; 250: 121.70 x 81.05; 300: 144.21 x 96.06; 400: 189.17 x 126.03; 450: 211.63 x 141.01; 500: 234.10 x 155.98; 550: 256.55 x 170.95; 600: 278.99 x 185.92; 650: 301.43 x 200.88; 700: 323.87 x 215.84; 800: 368.74 x 245.75; 900: 413.60 x 275.67; 1000: 458.46 x 305.58 |
| Field of view H x V (mm) at working distance (mm), 1/2" sensor (6.22 x 4.67 mm) | 100: 45.23 x 33.92; 150: 64.44 x 48.33; 200: 83.51 x 62.65; 250: 102.52 x 76.92; 300: 121.50 x 91.17; 350: 140.46 x 105.40; 400: 159.40 x 119.62; 450: 178.34 x 133.83; 500: 197.27 x 148.05; 550: 216.20 x 162.15; 600: 253.12 x 176.46; 650: 254.04 x 190.66; 700: 272.95 x 204.85; 800: 310.78 x 233.25; 900: 348.60 x 261.65; 1000: 386.41 x 290.03 |
Environment and compliance
| Temperature | –10°C to 50°C (14 °F to 122 °F) |
|---|---|
| Certification | RoHS 2.0 |
Mechanical
| Mount | C-mount |
|---|---|
| Flange back length | 17.526 mm |

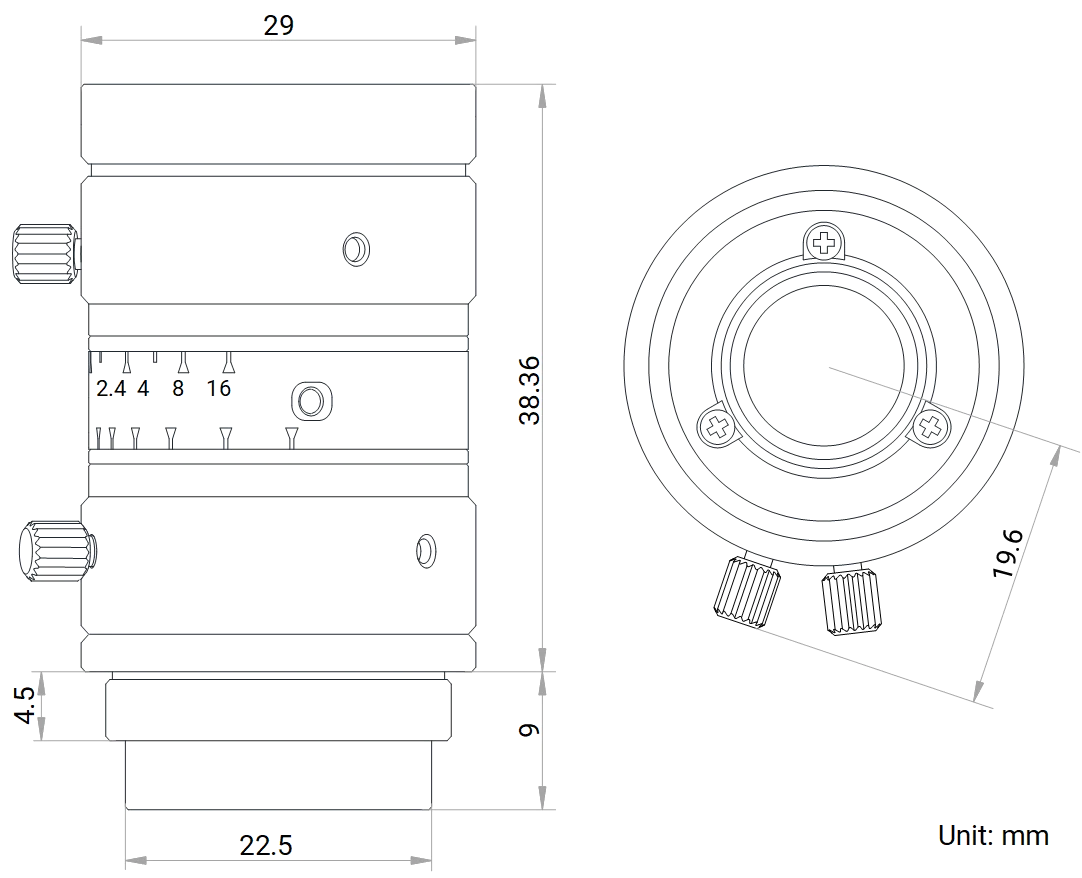

| Dimension | Ø29 mm × 38.36 mm (Ø1.1" x 1.5") |
| Weight | 70.2 g (0.2 lb.) |
| Shipping weight (estimated) | 0.20 kg |
