Machine vision lenses

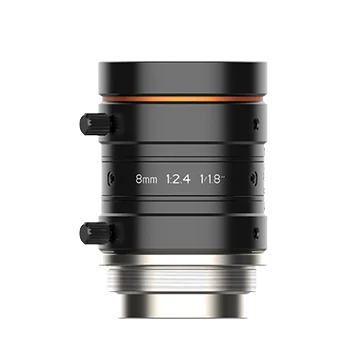

8mm, F2.4, 1/1.8", 10MP Lens, C-Mount (LS-HF0824M-10MP)
Model LS-HF0824M-10MP
- Focal length8 mm
- MountC-mount
- Sensor1/1.8"
- ApertureF2.4 to F16
$89.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.2 kg shipping weight
Volume pricing, Net 30 or a formal quote?
8mm, F2.4, 1/1.8", 10MP Lens, C-Mount. Ultra high resolution and consistency of image clarity Bigger aperture, lower distortion and higher relative illumination rate
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-HF0824M-10MP |
|---|---|
| Minimum object distance | 0.1 m |
Optics
| Focal length | 8 mm |
|---|---|
| F-number | F2.4 to F16 |
| Image size | Ø9 mm (1/1.8") |
| Distortion | –0.67% |
| Field of view | D(8.96 mm):58.81°; H(7.38 mm):49.56°; V(4.92 mm):34.04° |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M27 × 0.5 |
Environment and compliance
| Temperature | –10°C to 50°C (14 °F to 122 °F) |
|---|---|
| Certification | RoHS 2.0 |
Mechanical
| Mount | C-mount |
|---|---|
| Flange back length | 17.526 mm |

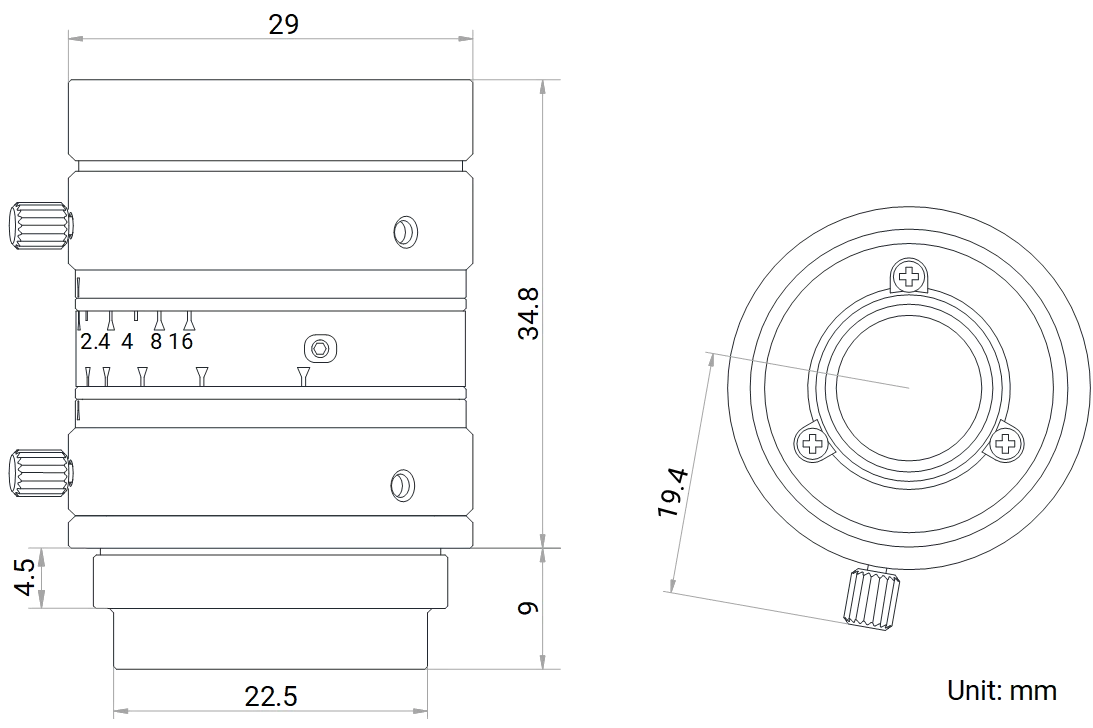

| Dimension | Ø29 mm × 34.8 mm (Ø1.1" x 1.4") |
| Weight | 70.9 g (0.2 lb.) |
| Shipping weight (estimated) | 0.20 kg |
