Machine vision lenses

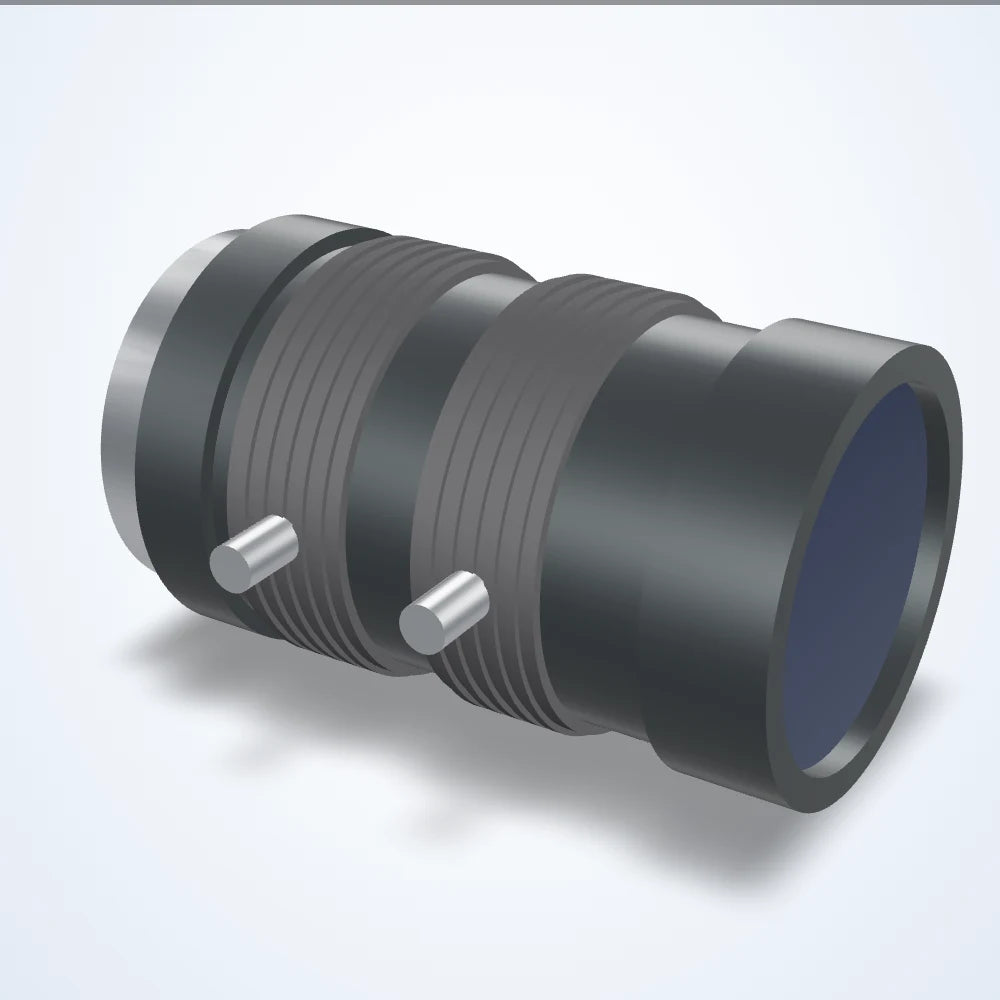

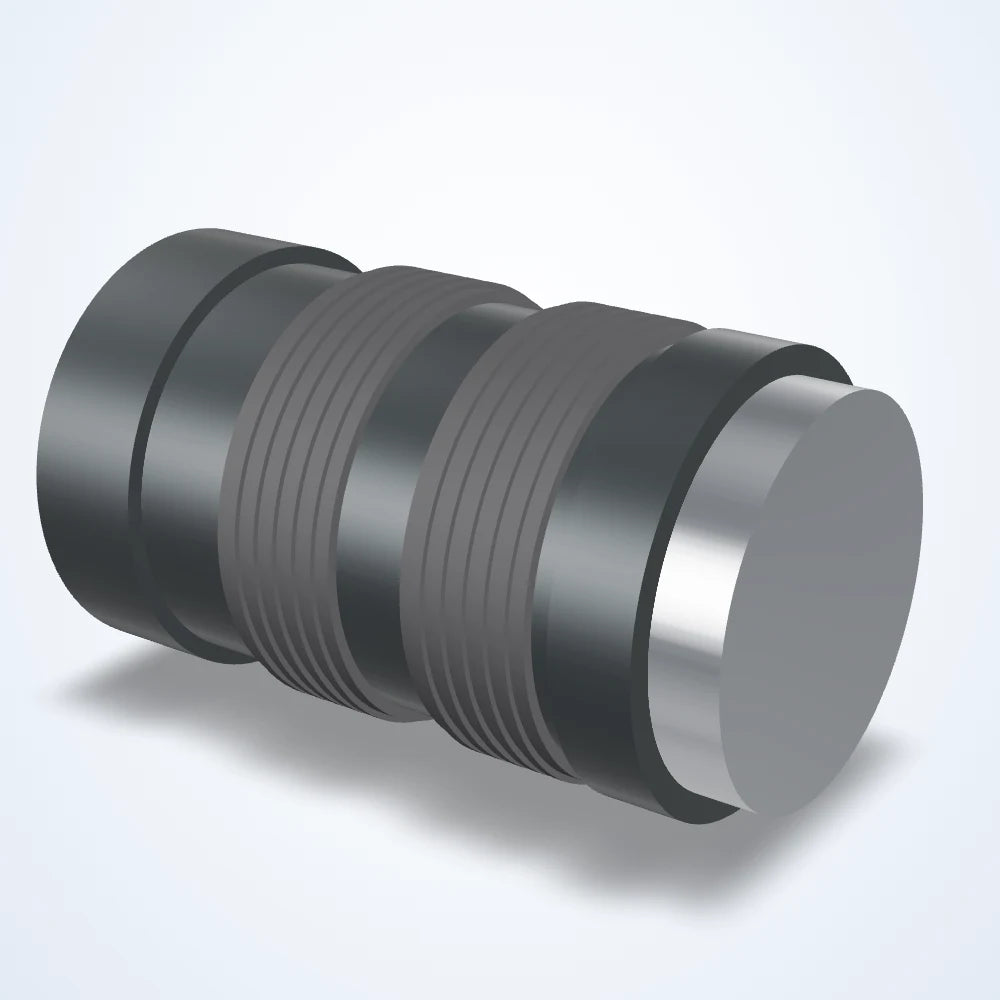

50 mm lens, 1/1.7", C-mount (LS-FFL-0282)
Model LS-FFL-0282
- Focal length50 mm
- MountC-mount
- Sensor1/1.7"
- Aperture2.8-16
- Resolution6
$379.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0282 |
|---|---|
| Angle of view | 8.9 x 6.7 deg |
| Angle of view 1/1.8" | 8.7 x 5.9 deg |
| Angle of view 1/2" | 7.5 x 5.7 deg |
| Angle of view 1/3" | 5.7 x 4.3 deg |
| FOV @ 1/1.7″ | 8.9° × 6.7° |
| FOV @ 1/1.8″ | 8.7° × 5.9° |
| FOV @ 1/2″ | 7.5° × 5.7° |
| FOV @ 1/3″ | 5.7° × 4.3° |
| Flange back | 17.526mm (in air) |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.2 |
| Operation | Focus: manual w/lock / Iris: manual w/lock |
| Rear lens dia. | 17.4mm |
| Rear protrusion | 5.22mm (max) |
| Spectrum | Visible |
Optics
| Focal length | 50 mm |
|---|---|
| Aperture (F) | 2.8-16 |
| Distortion | -0.01% (TV, design value) |
| Filter thread | M27x0.5 |
| Focus control | Manual with Lock |
| Focus range | 0.2m~inf (recommended shooting distance 0.3m) |
| Focus rotation angle | 86.8 deg |
| Iris control | Manual with Lock |
| Iris rotation angle | 76.8 deg |
Sensor and imaging
| Max. sensor format | 1/1.7" |
|---|---|
| Resolution (MP) | 6 |
Interfaces and I/O
| Length max (front extended) | 57.57mm (max) |
|---|
Light
| Wavelength | Visible light |
|---|
Environment and compliance
| Operating temperature | -20~+60 C |
|---|---|
| Operating temperature range | -10 to +60 °C |
Mechanical
| Mount | C-mount |
|---|---|

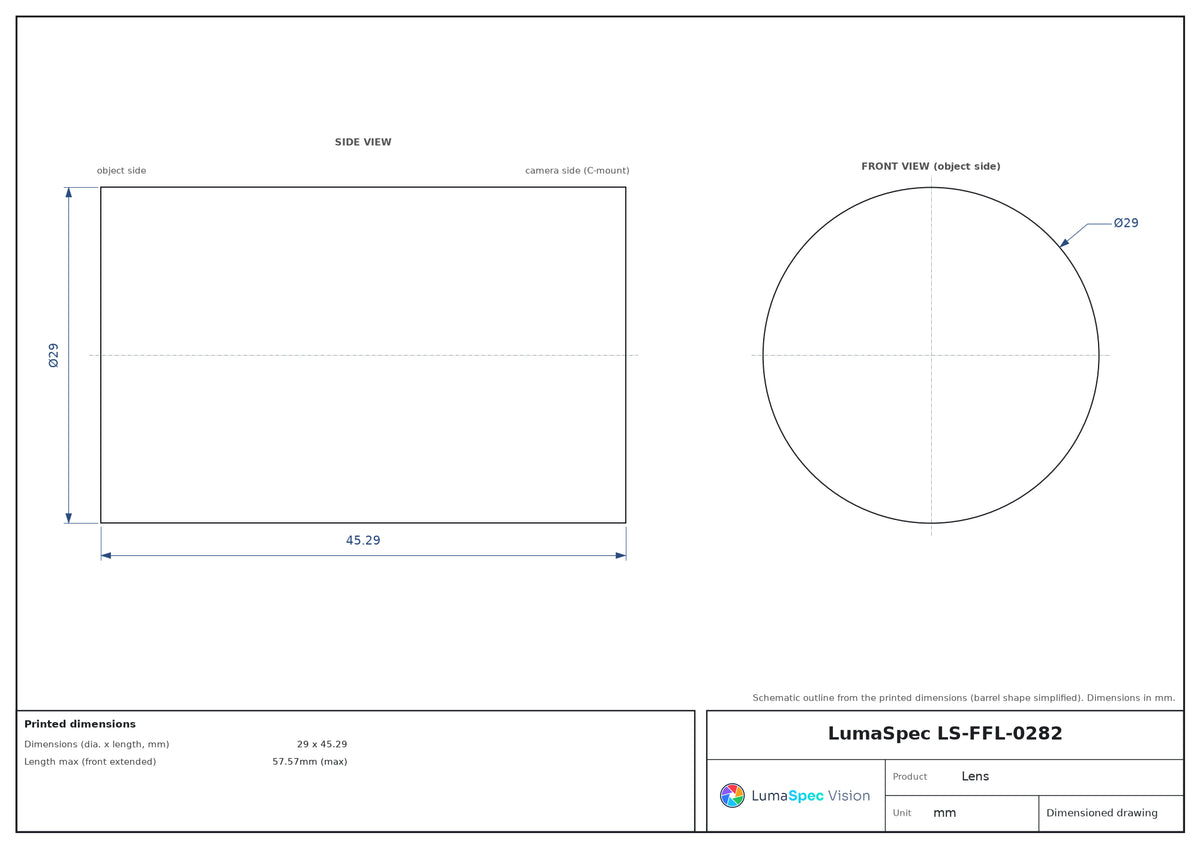

| Dimensions (dia. x length, mm) | 29 x 45.29 |
| Weight (g) | 60 |
