2/3" high resolution 5 MP prime lens
  • 2/3" high resolution 5 MP prime lens

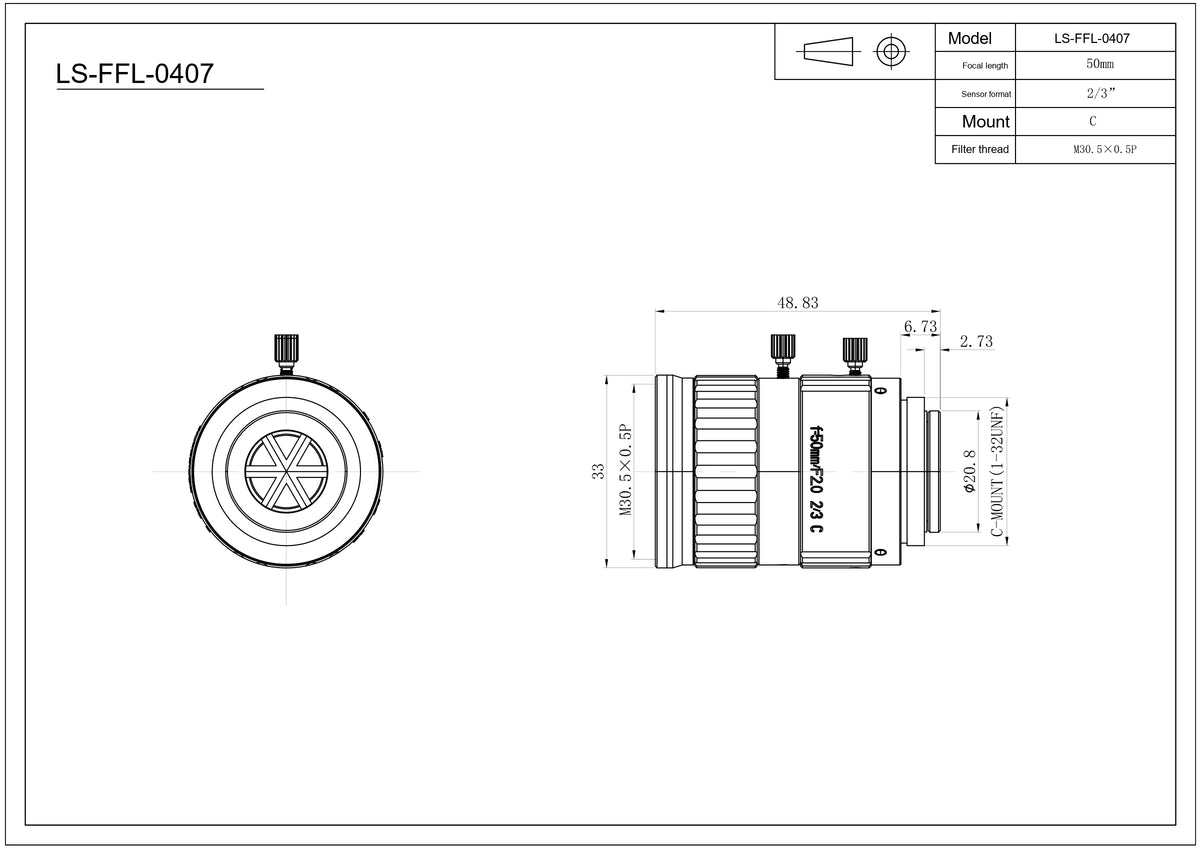

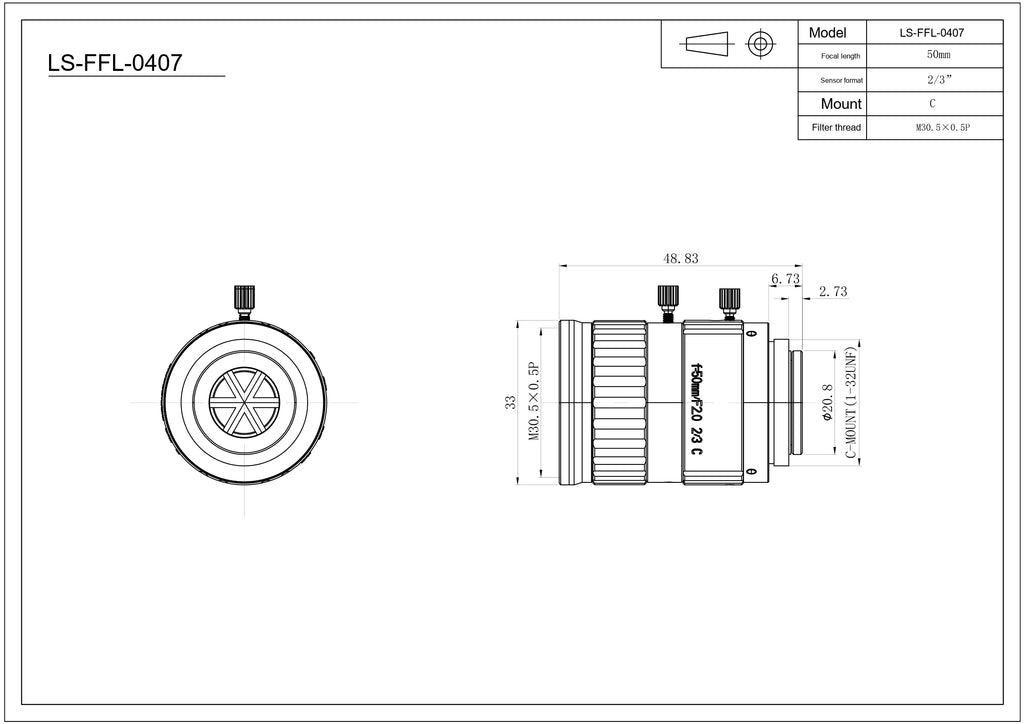

  • LS-FFL-0407 dimensions (mm)

Representative photo of this series

Machine vision lenses

2/3" high resolution 5 MP prime lens, 50 mm, C-mount (LS-FFL-0407)

Model LS-FFL-0407

  • Focal length50 mm
  • MountC-mount
  • Sensor2/3"
  • Working distance300-None
  • Aperture2-16
  • Resolution5 MP
$249.00

Ships in 2-3 weeks

0.38 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

2/3" high resolution 5 MP prime lens, 50 mm, C-mount (LS-FFL-0407)LS-FFL-0407

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

2/3" high resolution 5 million pixel prime lenses with low distortion, large light intake and a short working distance range design.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0407
Format2/3"
Target surface2/3"
WD range (mm)300-INF.

Optics

Focal length (mm)50
Aperture2-16
Optical distortion (%)<0.05
Relative illumination (%)>76
Working distance (mm)300-None

Sensor and imaging

Resolution5 MP
Sensor format2/3"

Mechanical

MountC
Filter sizeM35.5 x P0.5
Shipping weight0.38 kg

Other models in the 2/3" high resolution 5 MP prime lens (LS-FFL-S75) series

See all 7 models
ModelSize / key dataPriceAvailabilityLink
LS-FFL-0402 8 mm, 2/3", C-mount $169.00 Ships in 2-3 weeks View
LS-FFL-0401 8 mm, 2/3", C-mount $169.00 Ships in 2-3 weeks View
LS-FFL-0403 12 mm, 2/3", C-mount $179.00 Ships in 2-3 weeks View
LS-FFL-0405 25 mm, 2/3", C-mount $199.00 Ships in 2-3 weeks View
LS-FFL-0404 16 mm, 2/3", C-mount $209.00 Ships in 2-3 weeks View
LS-FFL-0406 35 mm, 2/3", C-mount $219.00 Ships in 2-3 weeks View
