Machine vision lenses

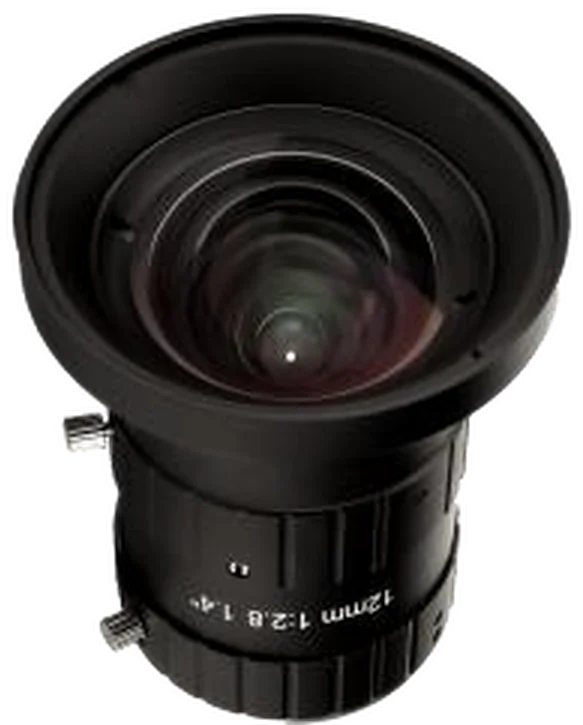

12 mm, 1.4", 45 MP, C-mount Machine Vision Lens (LS-FFL-0579)
Model LS-FFL-0579
- Focal length12 mm
- MountC-mount
- Sensor1.5"
- ApertureF2.8-16 Manual Iris
- Resolution45 Megapixel
- Field of view610 x 502 x 337 mm
$569.00
Ships in 2-3 weeks
0.41 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
12 mm, 1.4", 45 MP, C-mount Machine Vision Lens. A 12 mm, 1.4" format, 45 megapixel C-mount machine vision lens with 0.5% low distortion, matched to 2.3 um pixel sensors (Sony IMX492), for industrial recognition, positioning, measurement and 3D. At a glance: focal length 12 mm; format 1.4" (18.96 x 12.86 mm); resolution 45 Megapixel; aperture F2.8-16 Manual Iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0579 |
|---|---|
| Format | 1.4" (18.96 x 12.86 mm) |
| Angle of view (1.4", DxHxV) | 87 x 77 x 56 deg (field 610 x 502 x 337 mm) |
| B.F.L. | 11.7 mm |
| Flange back | 17.526 mm in air |
| Angle of view (1.4", HxVxD, datasheet) | 76.1 x 55.7 x 86.8 deg |
Optics
| Focal length | 12 mm |
|---|---|
| Aperture | F2.8-16 Manual Iris |
| M.O.D. | 0.15 m |
| Distortion | <0.5% |
| Field of view (1.4", distance not stated) | 610 x 502 x 337 mm |
Sensor and imaging
| Resolution | 45 Megapixel |
|---|
Environment and compliance
| Operating temperature | -10~+50 °C |
|---|---|
| Storage temperature | -20~+60 °C |

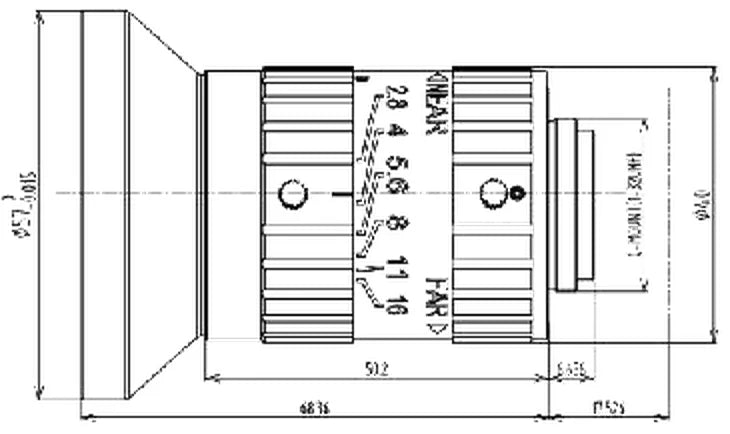

Mechanical
| Size | dia. 57 x 68.36 mm |
|---|---|
| Mount | C |
| Weight | 223 g |
| Optical total length | 85.8 mm |
| Shipping weight (estimated) | 0.41 kg |
