35 mm, 1", 5 MP, C-mount Machine Vision Lens, -0.036x ~ -0.244x (LS-FFL-0623)
Model LS-FFL-0623
- Focal length35 mm
- Magnification-0.036x ~ -0.244x
- MountC-mount
- Sensor1"
- ApertureF1.4 Manual iris
- Resolution5.0 Megapixel
$339.00
Ships in 2-3 weeks
0.32 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
35 mm, 1", 5 MP, C-mount Machine Vision Lens. 35 mm F1.4 5 megapixel 1" machine vision (FA) lens with 0.1% distortion and manual iris, C mount; the 1" format also covers 3/4", 2/3", 1/1.8" and 1/2" cameras. At a glance: magnification -0.036x ~ -0.244x; focal length 35 mm; format 1"; resolution 5.0 Megapixel; aperture F1.4 Manual iris.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0623 |
|---|---|
| Format | 1" |
| Angle of view (1", DxHxV) | 24 x 19 x 14 deg |
| Angle of view (2/3", DxHxV) | 16.5 x 13 x 10 deg |
| Angle of view (1/2", DxHxV) | 12 x 9.5 x 7 deg |
Optics
| Magnification | -0.036x ~ -0.244x |
|---|---|
| Focal length | 35 mm |
| Aperture | F1.4 Manual iris |
| M.O.D. | 0.15 m |
| Distortion | 0.1% |
| Back focal length | 11.2 mm |
| Filter thread | M46 x 0.75 |
Sensor and imaging
| Resolution | 5.0 Megapixel |
|---|

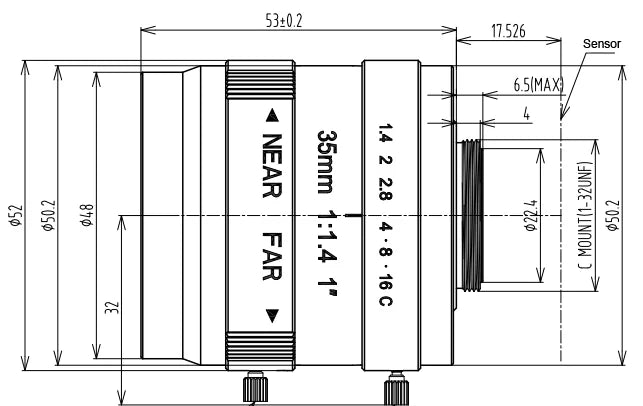

Mechanical
| Size | dia. 52 x 59.5 mm |
|---|---|
| Mount | C |
| Weight | 160 g |
| Optical total length | 70.5 mm |
| Shipping weight (estimated) | 0.32 kg |
