Machine vision lenses
16 mm, 1", 10 MP, C-mount Machine Vision Lens, 10 Megapixel, F1.6 Manual iris (LS-FFL-0610)
Model LS-FFL-0610
- Focal length16 mm
- MountC-mount
- Sensor1"
- ApertureF1.6 Manual iris
- Resolution10 Megapixel
$439.00
Ships in 2-3 weeks
0.37 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
16 mm, 1", 10 MP, C-mount Machine Vision Lens. 1" 10-megapixel FA machine vision lens, 16 mm, F1.6 manual iris, C-mount. At a glance: focal length 16 mm; format 1"; resolution 10 Megapixel; aperture F1.6 Manual iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0610 |
|---|---|
| Format | 1" |
| Angle of view (1") | 53 x 44 x 33.5 deg |
| Angle of view (2/3") | 39 x 31 x 23 deg |
Optics
| Focal length | 16 mm |
|---|---|
| Aperture | F1.6 Manual iris |
| M.O.D. | 0.1 m |
| Distortion | <0.68% |
| Filter thread | M37.5 x P0.5 |
Sensor and imaging
| Resolution | 10 Megapixel |
|---|
Mechanical

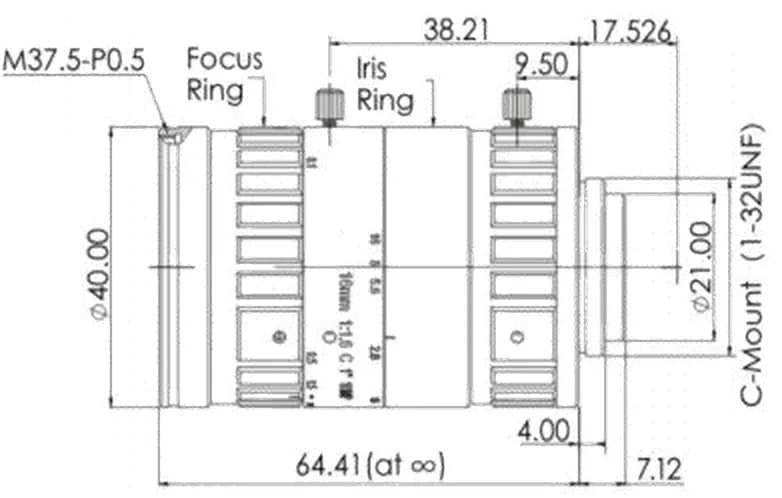

| Size | dia. 40 x 64.4 mm |
|---|---|
| Mount | C |
| Weight | 190 g |
| Shipping weight (estimated) | 0.37 kg |
Photo shows a representative model of this series; see the specifications for this model.
