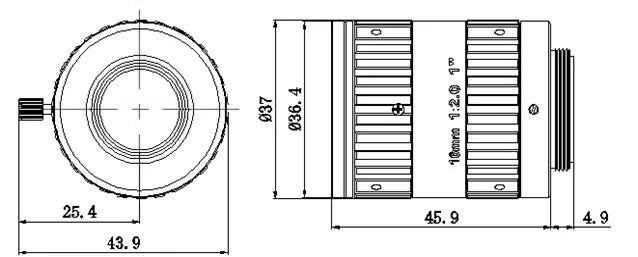

  • LS-FFL-0613 dimensions (mm)

Machine vision lenses

16 mm, 1", 10 MP, C-mount Machine Vision Lens, 10 Megapixel, F2.0 Manual iris (LS-FFL-0613)

Model LS-FFL-0613

  • Focal length16 mm
  • MountC-mount
  • Sensor1"
  • ApertureF2.0 Manual iris
  • Resolution10 Megapixel
  • Field of view115.4 x 89 x 66 mm
$439.00

Ships in 2-3 weeks

0.31 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

16 mm, 1", 10 MP, C-mount Machine Vision Lens, 10 Megapixel, F2.0 Manual iris (LS-FFL-0613)LS-FFL-0613

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

16 mm, 1", 10 MP, C-mount Machine Vision Lens. High resolution: 10 megapixel cover all 4K & 1080P. Large format: 1" size covering 1", 3/4, 2/3", 1/1.8", 1/2" camera. Low distortion: -2.22% low distortion use machine vision ITS. At a glance: focal length 16 mm; format 1"; resolution 10 Megapixel; aperture F2.0 Manual iris; mount C.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0613
Format1"
Angle of view (1", DxHxV)54 x 44 x 33.4 deg
Angle of view (1/2", DxHxV)28 x 22.5 x 17 deg
Angle of view (1/3", DxHxV)21.1 x 17 x 12.7 deg
NotesCan be used for 10MP camera

Optics

Focal length16 mm
Back focal length11.19 mm
ApertureF2.0 Manual iris
Field of view (1", DxHxV, distance not stated)115.4 x 89 x 66 mm
Field of view (1/2", DxHxV, distance not stated)55 x 44 x 33 mm
Field of view (1/3", DxHxV, distance not stated)41 x 33 x 25 mm
M.O.D.0.1 m
Distortion-2.2%@1";-0.72%@1/2";-0.42%@1/3"
Filter threadM34 x 0.5

Sensor and imaging

Resolution10 Megapixel

Mechanical

Sizedia. 37 x 45.9 mm
Optical total length59.78 mm
MountC
Weight151 g
Shipping weight (estimated)0.31 kg
