Machine vision lenses
50 mm, 1", 12 MP, C-mount Machine Vision Lens (LS-FFL-0628)
Model LS-FFL-0628
- Focal length50 mm
- MountC-mount
- Sensor1"
- ApertureF1.3 manual iris
- Resolution12 MP
$499.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.35 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
50 mm, 1", 12 MP, C-mount Machine Vision Lens. 50 mm 1" 12 MP C-mount F1.3 lens with <0.5% distortion for machine vision, automation, ITS / licence-plate recognition, SMT and AOI. At a glance: focal length 50 mm; format 1"; resolution 12 MP; aperture F1.3 manual iris; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0628 |
|---|---|
| Format | 1" |
| Angle of view (1", DxHxV) | 18.5 x 15 x 11.2 deg |
Optics
| Focal length | 50 mm |
|---|---|
| Aperture | F1.3 manual iris |
| Back focal length | 17.27 mm |
| M.O.D. | 0.3 m |
| Distortion | <0.5% |
| TTL | 83 mm |
Sensor and imaging
| Resolution | 12 MP |
|---|

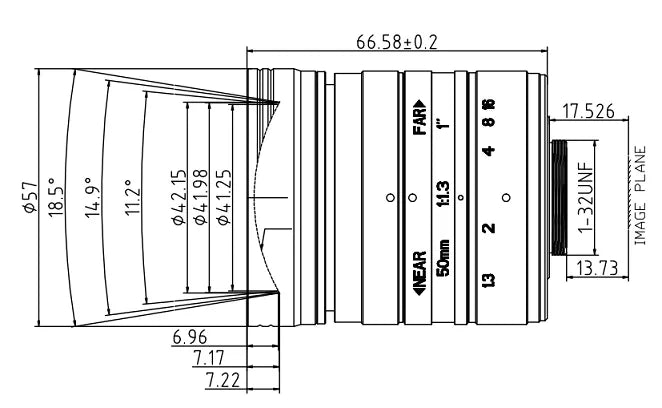

Mechanical
| Size | dia. 57 x 66.58 mm |
|---|---|
| Mount | C |
| Weight | 180 g |
| Shipping weight (estimated) | 0.35 kg |
Other models in the 1" machine vision lenses (LS-FFL-S89) series
See all 40 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-0626 | 35 mm, 1", 5 MP, C-mount | $339.00 | 5 in stock | View |
| LS-FFL-0629 | 50 mm, 1", 5 MP, C-mount | $369.00 | 3 in stock | View |
| LS-FFL-0631 | 50 mm, 1", 5 MP, C-mount | $369.00 | 5 in stock | View |
| LS-FFL-0600 | 8 mm, 1", 10 MP, C-mount | $429.00 | 2 in stock | View |
| LS-FFL-0601 | 8 mm, 1", 10 MP, C-mount | $429.00 | 3 in stock | View |
| LS-FFL-0602 | 8.5 mm, 1", 10 MP, C-mount | $429.00 | 2 in stock | View |
| LS-FFL-0606 | 12 mm, 1", 10 MP, C-mount | $429.00 | 3 in stock | View |
| LS-FFL-0634 | 75 mm, 1", 5 MP, C-mount | $429.00 | 2 in stock | View |
| LS-FFL-0638 | 16 mm, 1", 10 MP, C-mount | $439.00 | 2 in stock | View |
| LS-FFL-0607 | 16 mm, 1", 12 MP, C-mount | $439.00 | 2 in stock | View |
| LS-FFL-0610 | 16 mm, 1", 10 MP, C-mount | $439.00 | 3 in stock | View |
| LS-FFL-0613 | 16 mm, 1", 10 MP, C-mount | $439.00 | 2 in stock | View |
| LS-FFL-0616 | 25 mm, 1", 10 MP, C-mount | $459.00 | 3 in stock | View |
| LS-FFL-0619 | 25 mm, 1", 10 MP, C-mount | $459.00 | 4 in stock | View |
| LS-FFL-0621 | 25 mm, 1", 10 MP, C-mount | $459.00 | 5 in stock | View |
| LS-FFL-0637 | 100 mm, 1", 8 MP, C-mount | $469.00 | 4 in stock | View |
| LS-FFL-0622 | 35 mm, 1", 10 MP, C-mount | $479.00 | 3 in stock | View |
| LS-FFL-0624 | 35 mm, 1", 10 MP, C-mount | $479.00 | 5 in stock | View |
| LS-FFL-0627 | 35 mm, 1", 10 MP, C-mount | $479.00 | 3 in stock | View |
| LS-FFL-0630 | 50 mm, 1", 12 MP, C-mount | $499.00 | 2 in stock | View |
| LS-FFL-0632 | 50 mm, 1", 10 MP, C-mount | $499.00 | 4 in stock | View |
| LS-FFL-0633 | 50 mm, 1", 10 MP, C-mount | $499.00 | 4 in stock | View |
| LS-FFL-0635 | 75 mm, 1", 10 MP, C-mount | $549.00 | 4 in stock | View |
| LS-FFL-0636 | 75 mm, 1", 10 MP, C-mount | $549.00 | 5 in stock | View |
