Machine vision lenses

75 mm, 1", 10 MP, C-mount Machine Vision Lens, 1" (16 mm) (LS-FFL-0636)

Model LS-FFL-0636

Focal length75 mm
MountC-mount
Sensor1"
ApertureF2.8 Manual iris
Resolution10 Megapixel
Field of view89.2 x 72 x 54 mm

$549.00

Ships in 2-3 weeks

0.36 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

75 mm, 1", 10 MP, C-mount Machine Vision Lens. High resolution: 10 megapixel cover all 4K & 1080P. Large format: 1" size covering 1", 3/4, 2/3", 1/1.8", 1/2" camera. Low distortion: 0.75% low distortion use machine vision ITS. At a glance: focal length 75 mm; format 1" (16 mm); resolution 10 Megapixel; aperture F2.8 Manual iris; mount C.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-FFL-0636
Format	1" (16 mm)
Angle of view (1", DxHxV)	12.5 x 10 x 7.3 deg
Angle of view (1/2", DxHxV)	6.1 x 4.9 x 3.7 deg
Angle of view (1/3", DxHxV)	4.6 x 3.7 x 2.8 deg
Notes	Be used for 10MP camera
Angle of view (2/3", DxHxV)	8.2 x 6.7 x 5 deg

Optics

Focal length	75 mm
Back focal length	23.15 mm
Aperture	F2.8 Manual iris
Field of view (1", DxHxV, distance not stated)	89.2 x 72 x 54 mm
Field of view (1/2", DxHxV, distance not stated)	44.8 x 35.8 x 26.9 mm
Field of view (1/3", DxHxV, distance not stated)	33.6 x 26.7 x 20.2 mm
M.O.D.	0.5 m
Distortion	0.75%@1"; 0.18%@1/2"; 0.11%@1/3"
Filter thread	M39 x 0.5 mm

Sensor and imaging

Resolution	10 Megapixel

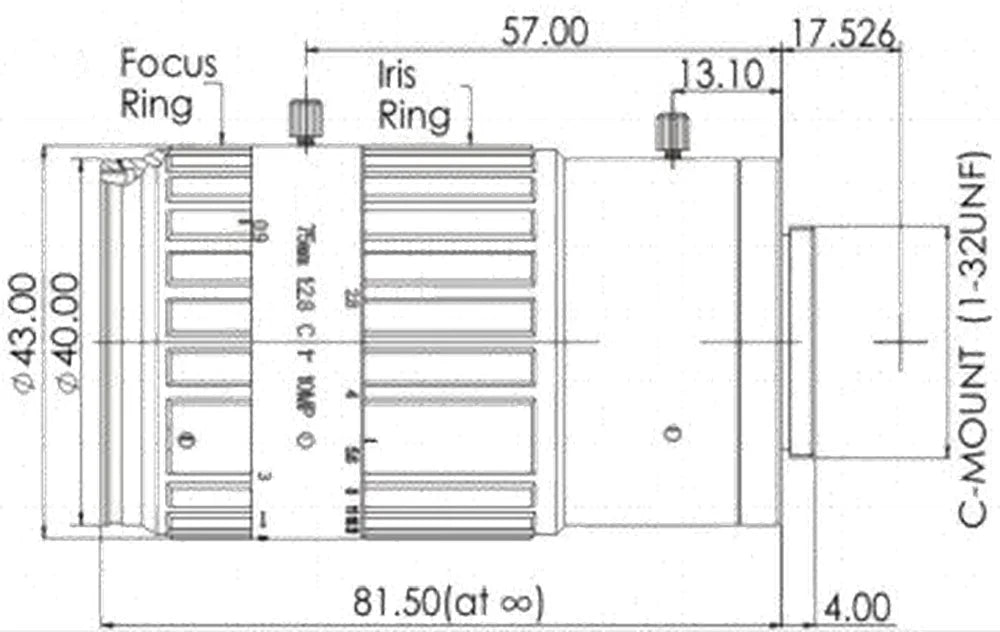

Mechanical

Size	dia. 42.7 x 60.35 mm
Optical total length	76.75 mm
Mount	C
Weight	187 g
Shipping weight (estimated)	0.36 kg
