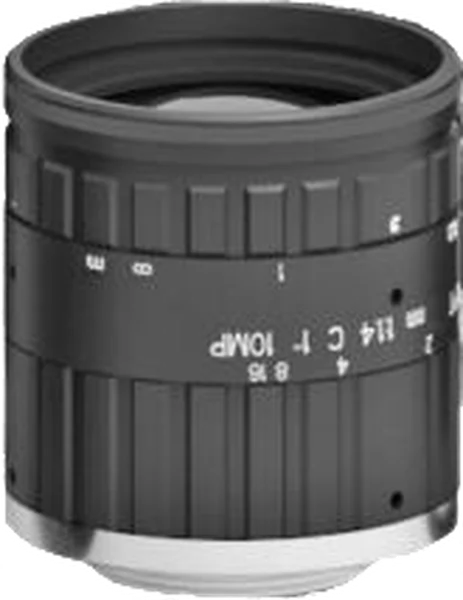

35 mm, 1", 10 MP, C-mount Machine Vision Lens, F1.4 Manual iris (LS-FFL-0624)
  • 35 mm, 1", 10 MP, C-mount Machine Vision Lens, F1.4 Manual iris (LS-FFL-0624)

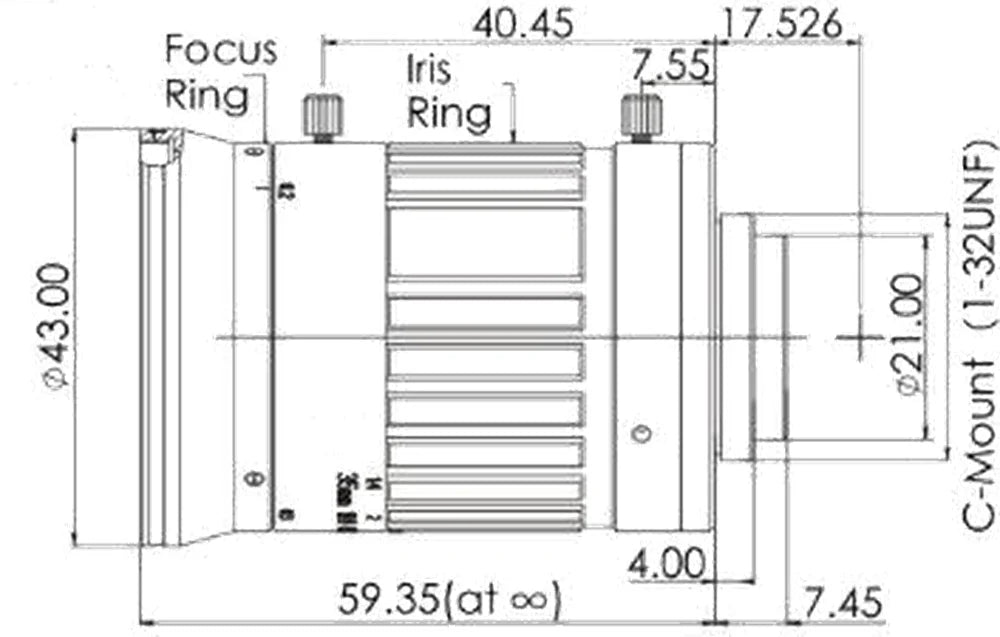

  • LS-FFL-0624 dimensions (mm)

Machine vision lenses

35 mm, 1", 10 MP, C-mount Machine Vision Lens, F1.4 Manual iris (LS-FFL-0624)

Model LS-FFL-0624

  • Focal length35 mm
  • MountC-mount
  • Sensor1"
  • ApertureF1.4 Manual iris
  • Resolution10 Megapixel
$479.00

Ships in 2-3 weeks

0.27 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

35 mm, 1", 10 MP, C-mount Machine Vision Lens, F1.4 Manual iris (LS-FFL-0624)LS-FFL-0624

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

35 mm, 1", 10 MP, C-mount Machine Vision Lens. 1" format, 10 megapixel C-mount FA machine vision lenses with manual iris, 35 to 75 mm, rated for 1" and 2/3" sensors. At a glance: focal length 35 mm; format 1"; resolution 10 Megapixel; aperture F1.4 Manual iris; mount C.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0624
Format1"
Angle of view (1", DxHxV)28 x 22.4 x 17 deg
Angle of view (2/3", DxHxV)18 x 14.5 x 11 deg

Optics

Focal length35 mm
ApertureF1.4 Manual iris
M.O.D.0.16 m
Distortion<0.39%
Filter threadM40.5 x P0.5

Sensor and imaging

Resolution10 Megapixel

Mechanical

MountC
Sizedia. 43 x 59.35 mm
Weight120 g
Shipping weight (estimated)0.27 kg
