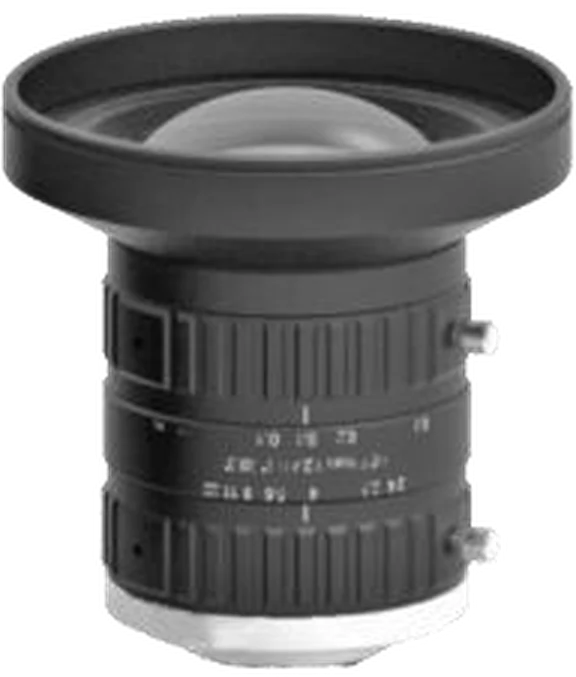

8.5 mm, 1", 10 MP, C-mount Machine Vision Lens (LS-FFL-0602)
  • 8.5 mm, 1", 10 MP, C-mount Machine Vision Lens (LS-FFL-0602)

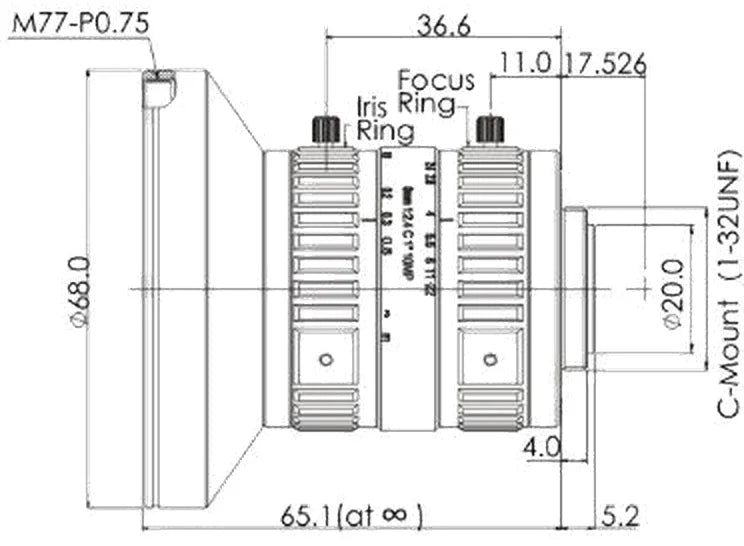

  • LS-FFL-0602 dimensions (mm)

Machine vision lenses

8.5 mm, 1", 10 MP, C-mount Machine Vision Lens (LS-FFL-0602)

Model LS-FFL-0602

  • Focal length8.5 mm
  • MountC-mount
  • Sensor1"
  • ApertureF2.4 Manual iris
  • Resolution10 Megapixel
$429.00

Ships in 2-3 weeks

0.48 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

8.5 mm, 1", 10 MP, C-mount Machine Vision Lens (LS-FFL-0602)LS-FFL-0602

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

8.5 mm, 1", 10 MP, C-mount Machine Vision Lens. 1" 10-megapixel FA machine vision lens, 8.5 mm, F2.4 manual iris, C-mount. At a glance: focal length 8.5 mm; format 1"; resolution 10 Megapixel; aperture F2.4 Manual iris; mount C.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0602
Format1"
Angle of view (1")92 x 79.3 x 63.7 deg
Angle of view (2/3")66 x 54.7 x 42.4 deg

Optics

Focal length8.5 mm
ApertureF2.4 Manual iris
M.O.D.0.1 m
Distortion<0.7%
Filter threadM77 x P0.75

Sensor and imaging

Resolution10 Megapixel

Mechanical

Sizedia. 80 x 67.1 mm
MountC
Weight270 g
Shipping weight (estimated)0.48 kg
