Machine vision lenses

8 mm, 1", 10 MP, C-mount Machine Vision Lens, F1.4-16 Manual iris (LS-FFL-0600)

Model LS-FFL-0600

Focal length8 mm
MountC-mount
Sensor1"
ApertureF1.4-16 Manual iris
Resolution10 Megapixel

$429.00

Ships in 2-3 weeks

0.41 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

8 mm, 1", 10 MP, C-mount Machine Vision Lens. Machine vision 8 mm lens with a 1" format covering 1", 3/4", 2/3", 1/1.8" and 1/2" cameras. F1.4 aperture and <1.5% low distortion. At a glance: focal length 8 mm; format 1"; resolution 10 Megapixel; aperture F1.4-16 Manual iris; mount C.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-FFL-0600
Format	1"
Angle of view (1")	88 x 71 x 53 deg

Optics

Focal length	8 mm
Aperture	F1.4-16 Manual iris
M.O.D.	0.2 m
Distortion	<1.5%
Back focal length	7.8 mm

Sensor and imaging

Resolution	10 Megapixel

Mechanical

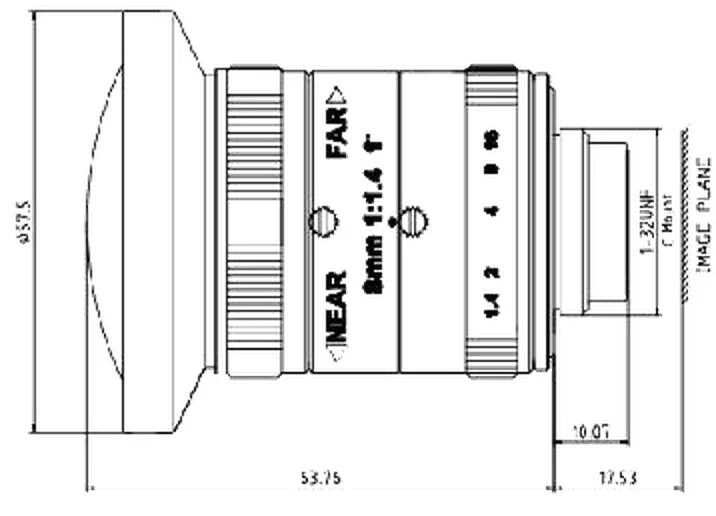

Size	dia. 57.5 x 63.76 mm
Mount	C
Weight	220 g
Optical total length	81.2 mm
Shipping weight (estimated)	0.41 kg

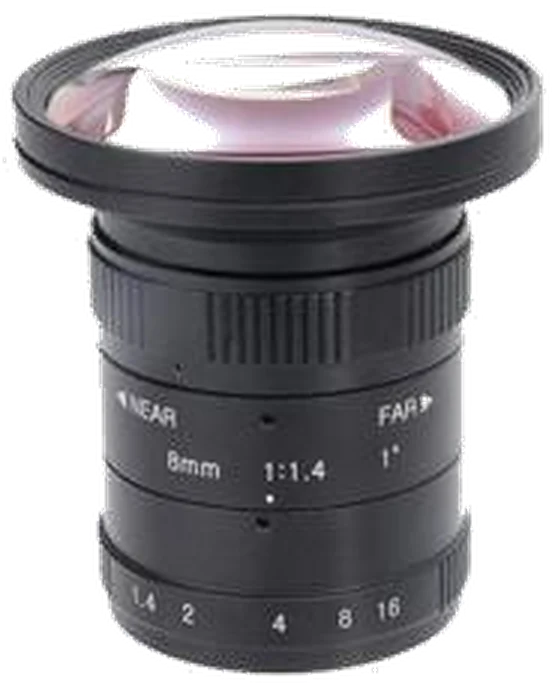

Photo shows a representative model of this series; see the specifications for this model.

Downloads

Datasheet (PDF)LS-FFL-0600 · 997 KB

Features

High resolution: 5.0 megapixel cover all 4K & 1080P
Large format: 1" size covering 1", 3/4, 2/3", 1/1.8", 1/2" camera
Big aperture: F1.4 big aperture makes imaging far better
Low distortion: <1.5% low distortion use machine vision ITS
10 megapixel, covers 4K and 1080P
Large format: 1" covering 1", 2/3", 1/1.8", 1/2" cameras
Low distortion <1.5%

Applications

Automation
Machine vision
Medical
Life science
ITS
SMT
