16 mm, 1", 5 MP, C-mount Machine Vision Lens, -0.016x ~ -0.146x, F1.4 Manual iris (LS-FFL-0609)
  • 16 mm, 1", 5 MP, C-mount Machine Vision Lens, -0.016x ~ -0.146x, F1.4 Manual iris (LS-FFL-0609)

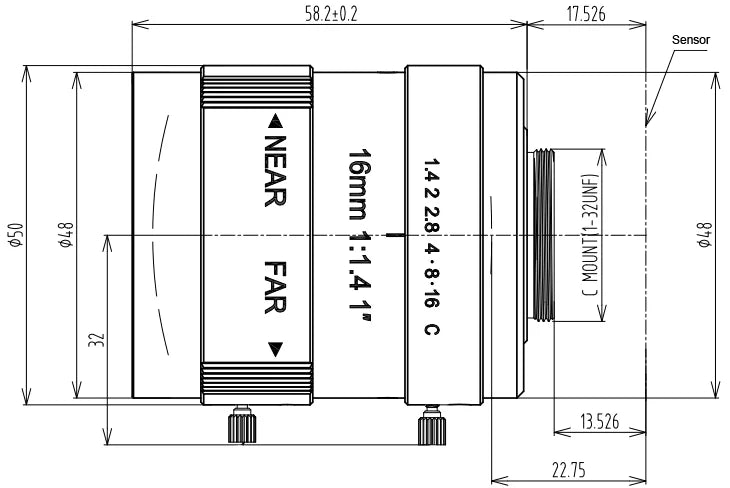

  • LS-FFL-0609 dimensions (mm)

Machine vision lenses

16 mm, 1", 5 MP, C-mount Machine Vision Lens, -0.016x ~ -0.146x, F1.4 Manual iris (LS-FFL-0609)

Model LS-FFL-0609

  • Focal length16 mm
  • Magnification-0.016x ~ -0.146x
  • MountC-mount
  • Sensor1"
  • ApertureF1.4 Manual iris
  • Resolution5.0 Megapixel
$339.00

Ships in 2-3 weeks

0.27 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

16 mm, 1", 5 MP, C-mount Machine Vision Lens, -0.016x ~ -0.146x, F1.4 Manual iris (LS-FFL-0609)LS-FFL-0609

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

16 mm, 1", 5 MP, C-mount Machine Vision Lens. 16 mm F1.4 5 megapixel 1" machine vision (FA) lens with 0.2% distortion and manual iris, C mount; the 1" format also covers 3/4", 2/3", 1/1.8" and 1/2" cameras. At a glance: magnification -0.016x ~ -0.146x; focal length 16 mm; format 1"; resolution 5.0 Megapixel; aperture F1.4 Manual iris.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0609
Format1"
Angle of view (1", DxHxV)51.6 x 42.4 x 32.4 deg
Angle of view (2/3", DxHxV)37 x 30 x 22.7 deg
Angle of view (1/2", DxHxV)27 x 21 x 16.5 deg

Optics

Magnification-0.016x ~ -0.146x
Focal length16 mm
ApertureF1.4 Manual iris
M.O.D.0.1 m
Distortion0.2%
Back focal length22.75 mm
Filter threadM46 x 0.75

Sensor and imaging

Resolution5.0 Megapixel

Mechanical

Sizedia. 50 x 62.2 mm
MountC
Weight120 g
Optical total length75.7 mm
Shipping weight (estimated)0.27 kg
