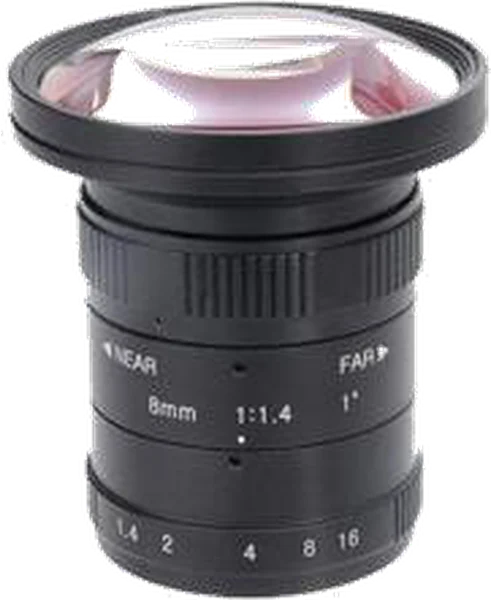

8 mm, 1", 5 MP, C-mount Machine Vision Lens (LS-FFL-0599)
  • 8 mm, 1", 5 MP, C-mount Machine Vision Lens (LS-FFL-0599)

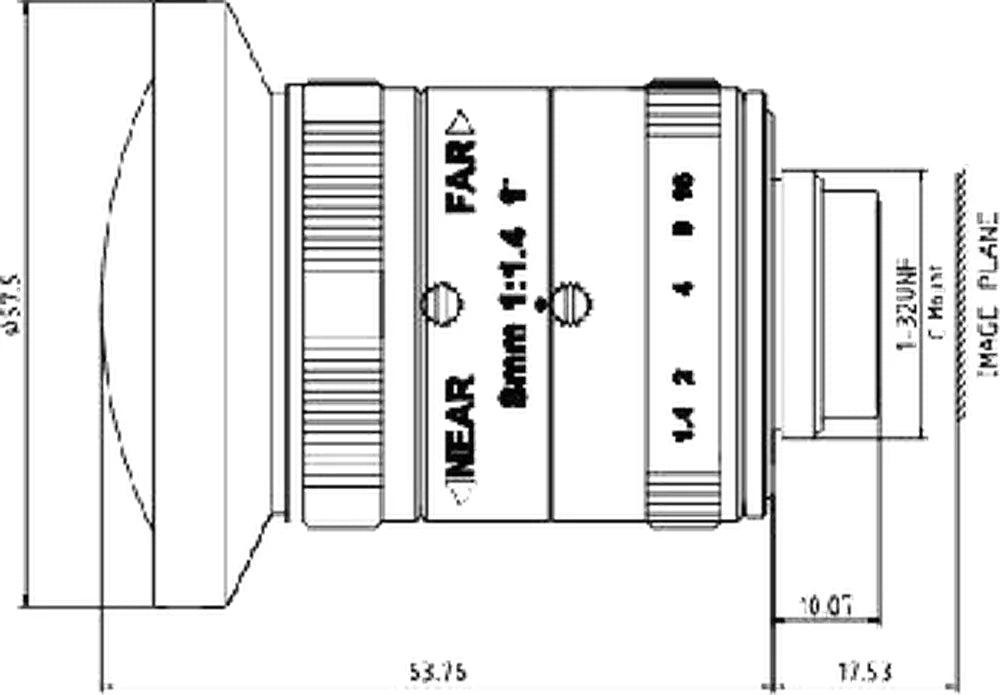

  • LS-FFL-0599 dimensions (mm)

Machine vision lenses

8 mm, 1", 5 MP, C-mount Machine Vision Lens (LS-FFL-0599)

Model LS-FFL-0599

  • Focal length8 mm
  • MountC-mount
  • Sensor1"
  • ApertureF1.4-16 Manual iris
  • Resolution5.0 Megapixel
$289.00

Ships in 2-3 weeks

0.41 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

8 mm, 1", 5 MP, C-mount Machine Vision Lens (LS-FFL-0599)LS-FFL-0599

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

8 mm, 1", 5 MP, C-mount Machine Vision Lens. 1" format, 5 megapixel C-mount FA machine vision lenses with manual iris, 8 to 50 mm. At a glance: focal length 8 mm; format 1"; resolution 5.0 Megapixel; aperture F1.4-16 Manual iris; mount C.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0599
Format1"
Angle of view (1")88 x 71 x 53 deg

Optics

Focal length8 mm
ApertureF1.4-16 Manual iris
M.O.D.0.2 m
Distortion<1.5%

Sensor and imaging

Resolution5.0 Megapixel

Mechanical

MountC
Sizedia. 57.5 x 63.76 mm
Weight220 g
Shipping weight (estimated)0.41 kg

Other models in the 1" machine vision lenses (LS-FFL-S89) series

See all 40 models
ModelSize / key dataPriceAvailabilityLink
LS-FFL-0603 12 mm, 1", 5 MP, C-mount $299.00 Ships in 2-3 weeks View
LS-FFL-0604 12 mm, 1", 5 MP, C-mount $299.00 Ships in 2-3 weeks View
LS-FFL-0605 12 mm, 1", 5 MP, C-mount $299.00 Ships in 2-3 weeks View
LS-FFL-0614 20 mm, 1", 8 MP, C-mount $309.00 Ships in 2-3 weeks View
LS-FFL-0615 20 mm, 1", 5 MP, C-mount $309.00 Ships in 2-3 weeks View
LS-FFL-0617 25 mm, 1", 5 MP, C-mount $319.00 Ships in 2-3 weeks View
LS-FFL-0618 25 mm, 1", 5 MP, C-mount $319.00 Ships in 2-3 weeks View
LS-FFL-0620 25 mm, 1", 5 MP, C-mount $319.00 Ships in 2-3 weeks View
LS-FFL-0608 16 mm, 1", 5 MP, C-mount $339.00 Ships in 2-3 weeks View
LS-FFL-0609 16 mm, 1", 5 MP, C-mount $339.00 Ships in 2-3 weeks View
LS-FFL-0611 16 mm, 1", 5 MP, C-mount $339.00 Ships in 2-3 weeks View
LS-FFL-0612 16 mm, 1", 5 MP, C-mount $339.00 Ships in 2-3 weeks View
LS-FFL-0623 35 mm, 1", 5 MP, C-mount $339.00 Ships in 2-3 weeks View
LS-FFL-0625 35 mm, 1", 5 MP, C-mount $339.00 Ships in 2-3 weeks View
LS-FFL-0626 35 mm, 1", 5 MP, C-mount $339.00 Ships in 2-3 weeks View
LS-FFL-0629 50 mm, 1", 5 MP, C-mount $369.00 Ships in 2-3 weeks View
LS-FFL-0631 50 mm, 1", 5 MP, C-mount $369.00 Ships in 2-3 weeks View
LS-FFL-0600 8 mm, 1", 10 MP, C-mount $429.00 Ships in 2-3 weeks View
LS-FFL-0601 8 mm, 1", 10 MP, C-mount $429.00 Ships in 2-3 weeks View
LS-FFL-0602 8.5 mm, 1", 10 MP, C-mount $429.00 Ships in 2-3 weeks View
LS-FFL-0606 12 mm, 1", 10 MP, C-mount $429.00 Ships in 2-3 weeks View
LS-FFL-0634 75 mm, 1", 5 MP, C-mount $429.00 Ships in 2-3 weeks View
LS-FFL-0638 16 mm, 1", 10 MP, C-mount $439.00 Ships in 2-3 weeks View
LS-FFL-0607 16 mm, 1", 12 MP, C-mount $439.00 Ships in 2-3 weeks View
