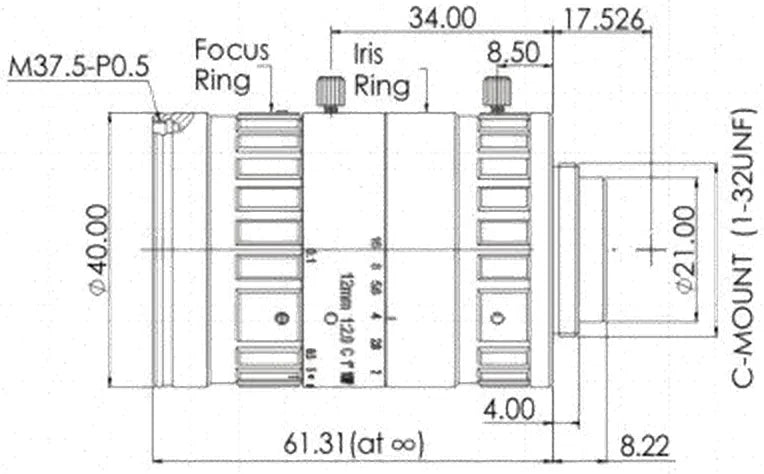

  • LS-FFL-0606 dimensions (mm)

Machine vision lenses

12 mm, 1", 10 MP, C-mount Machine Vision Lens (LS-FFL-0606)

Model LS-FFL-0606

  • Focal length12 mm
  • MountC-mount
  • Sensor1"
  • ApertureF2.0 Manual iris
  • Resolution10 Megapixel
  • Field of view70 x 61 x 44.3 mm
$429.00

Ships in 2-3 weeks

0.36 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

12 mm, 1", 10 MP, C-mount Machine Vision Lens (LS-FFL-0606)LS-FFL-0606

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

12 mm, 1", 10 MP, C-mount Machine Vision Lens. High resolution: 10 megapixel cover all 4K & 1080P. Large format: 1" size covering 1", 3/4, 2/3", 1/1.8", 1/2" camera. Low distortion: -4.1% low distortion use machine vision ITS. At a glance: focal length 12 mm; format 1"; resolution 10 Megapixel; aperture F2.0 Manual iris; mount C.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0606
Format1"
Angle of view (1", DxHxV)70 x 61 x 44 deg
Angle of view (1/2", DxHxV)37.3 x 30 x 22.7 deg
Angle of view (1/3", DxHxV)28.2 x 23 x 17.1 deg
NotesCan be used for 10MP camera
Angle of view (2/3")50 x 40 x 31 deg

Optics

Focal length12 mm
Back focal length15.07 mm
ApertureF2.0 Manual iris
Field of view (1", DxHxV, distance not stated)70 x 61 x 44.3 mm
Field of view (1/2", DxHxV, distance not stated)75 x 60 x 45 mm
Field of view (1/3", DxHxV, distance not stated)56 x 45 x 34 mm
M.O.D.0.08 m
Distortion-4.1%@1"; -1.2%@1/2"; -0.74%@1/3"
Filter threadM35 x 0.5

Sensor and imaging

Resolution10 Megapixel

Mechanical

Sizedia. 37.7 x 48.9 mm
MountC
Weight186 g
Optical total length85.33 mm
Shipping weight (estimated)0.36 kg
