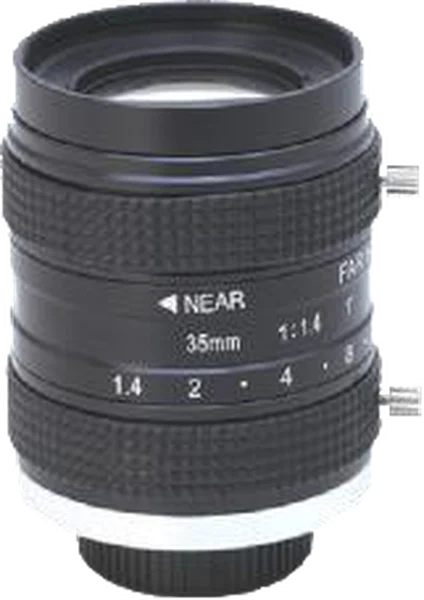

35 mm, 1", 5 MP, C-mount Machine Vision Lens, -0.09x (LS-FFL-0625)
  • 35 mm, 1", 5 MP, C-mount Machine Vision Lens, -0.09x (LS-FFL-0625)

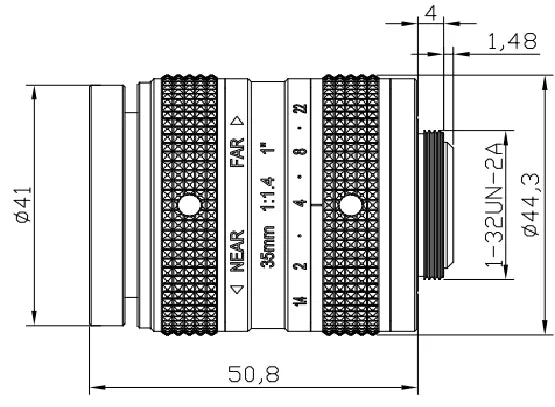

  • LS-FFL-0625 dimensions (mm)

Machine vision lenses

35 mm, 1", 5 MP, C-mount Machine Vision Lens, -0.09x (LS-FFL-0625)

Model LS-FFL-0625

  • Focal length35 mm
  • Magnification-0.09x
  • MountC-mount
  • Sensor1"
  • ApertureF1.6 Manual iris
  • Resolution5.0 Megapixel
$339.00

Ships in 2-3 weeks

0.32 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

35 mm, 1", 5 MP, C-mount Machine Vision Lens, -0.09x (LS-FFL-0625)LS-FFL-0625

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

35 mm, 1", 5 MP, C-mount Machine Vision Lens. 35 mm, 5 megapixel C-mount machine vision lens for 1" sensors (also 3/4", 2/3", 1/1.8", 1/2") with F1.6 aperture and -0.26% distortion. At a glance: magnification -0.09x; focal length 35 mm; format 1"; resolution 5.0 Megapixel; aperture F1.6 Manual iris.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0625
Format1"
Angle of view (1", DxHxV)25.7 x 20.1 x 15.6 deg (FOV 117 x 142 x 106mm)
Angle of view (1/2", DxHxV)13.1 x 10.5 x 7.8 deg (FOV 89 x 71 x 53mm)
NotesB.F.L 12.82 mm

Optics

Focal length35 mm
ApertureF1.6 Manual iris
M.O.D.0.4 m
Distortion-0.26%@y=8.0 mm / -0.07%@y=4.0 mm
Magnification-0.09x
Filter threadM39 x 0.5 mm
Field of view (1", DxHxV)117 x 142 x 106 mm
Field of view (1/2", DxHxV)89 x 71 x 53 mm

Sensor and imaging

Resolution5.0 Megapixel

Mechanical

Sizedia. 44.3 x 50.8 mm
MountC
Weight156 g
Shipping weight (estimated)0.32 kg
