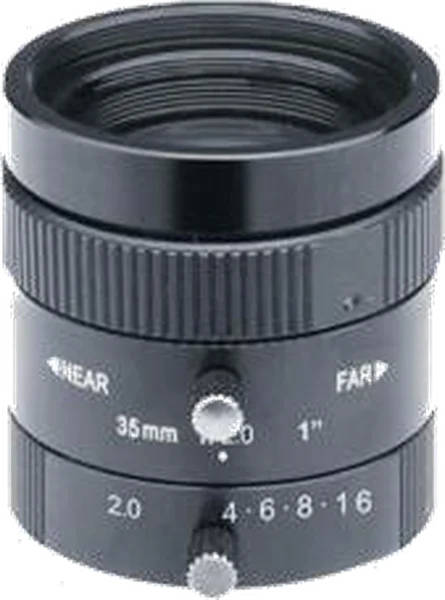

35 mm, 1", 5 MP, C-mount Machine Vision Lens (LS-FFL-0626)
  • 35 mm, 1", 5 MP, C-mount Machine Vision Lens (LS-FFL-0626)

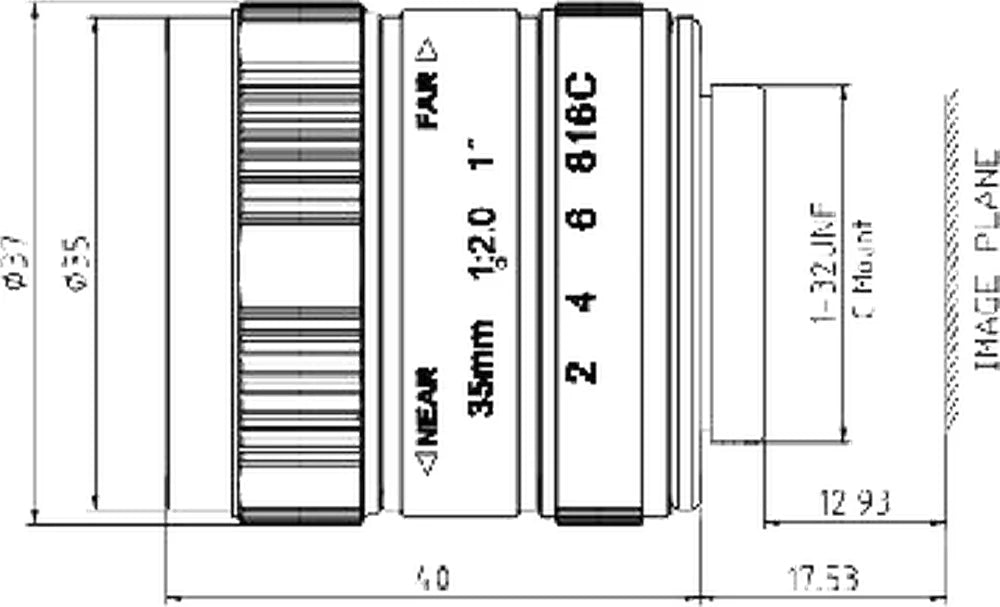

  • LS-FFL-0626 dimensions (mm)

Machine vision lenses

35 mm, 1", 5 MP, C-mount Machine Vision Lens (LS-FFL-0626)

Model LS-FFL-0626

  • Focal length35 mm
  • MountC-mount
  • Sensor1"
  • ApertureF2.0 Manual Iris
  • Resolution5.0 Megapixel
$339.00

Ships in 2-3 weeks

0.24 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

35 mm, 1", 5 MP, C-mount Machine Vision Lens (LS-FFL-0626)LS-FFL-0626

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

35 mm, 1", 5 MP, C-mount Machine Vision Lens. 5.0 megapixel 35 mm machine vision lens with a 1" format covering 1", 3/4", 2/3", 1/1.8" and 1/2" cameras, with <1% low distortion. At a glance: focal length 35 mm; format 1"; resolution 5.0 Megapixel; aperture F2.0 Manual Iris; mount C.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0626
Format1"
Angle of view (1", DxHxV)26 x 21 x 15.5 deg
Angle of view (1")26 x 22.5 x 17.5 deg

Optics

Focal length35 mm
ApertureF2.0 Manual Iris
M.O.D.0.5 m
Distortion<1.0%
Back focal length17.8 mm

Sensor and imaging

Resolution5.0 Megapixel

Mechanical

Sizedia. 37 x 41 mm
MountC
Weight100 g
Optical total length48.6 mm
Shipping weight (estimated)0.24 kg
