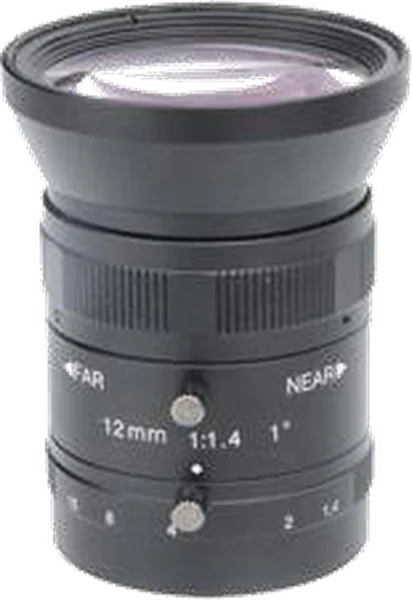

12 mm, 1", 5 MP, C-mount Machine Vision Lens (LS-FFL-0603)
  • 12 mm, 1", 5 MP, C-mount Machine Vision Lens (LS-FFL-0603)

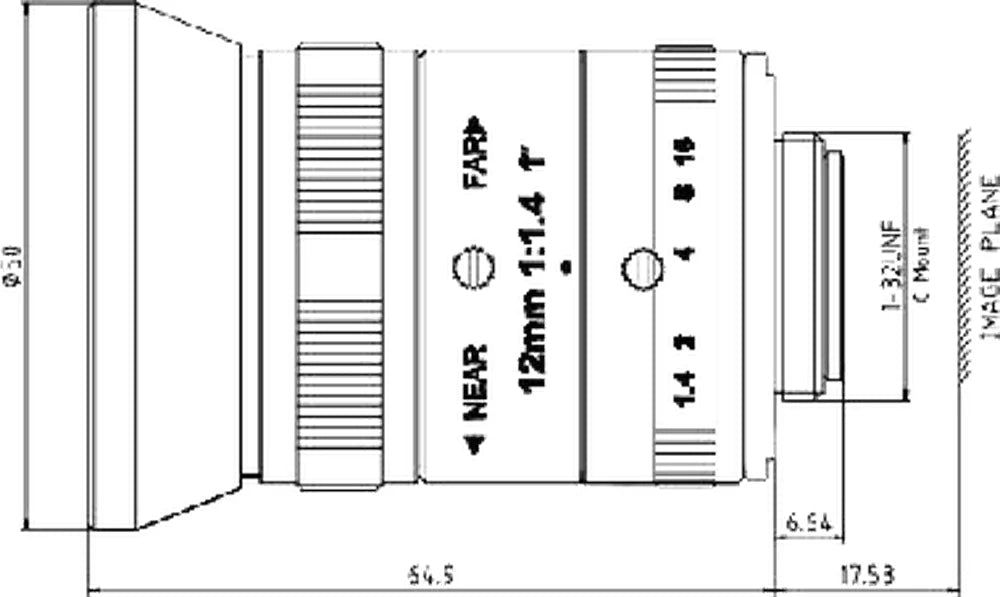

  • LS-FFL-0603 dimensions (mm)

Machine vision lenses

12 mm, 1", 5 MP, C-mount Machine Vision Lens (LS-FFL-0603)

Model LS-FFL-0603

  • Focal length12 mm
  • MountC-mount
  • Sensor1"
  • ApertureF1.4 Manual Iris
  • Resolution5.0 Megapixel
$299.00

Ships in 2-3 weeks

0.44 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

12 mm, 1", 5 MP, C-mount Machine Vision Lens (LS-FFL-0603)LS-FFL-0603

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

12 mm, 1", 5 MP, C-mount Machine Vision Lens. 5.0 megapixel 12 mm machine vision lens with a 1" format covering 1", 3/4", 2/3", 1/1.8" and 1/2" cameras, with <1.5% low distortion. At a glance: focal length 12 mm; format 1"; resolution 5.0 Megapixel; aperture F1.4 Manual Iris; mount C.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0603
Format1"
Angle of view (1", DxHxV)66 x 53 x 40 deg
Angle of view (1")66 x 49.6 x 43 deg

Optics

Focal length12 mm
ApertureF1.4 Manual Iris
M.O.D.0.3 m
Distortion<1.5%
Back focal length11 mm

Sensor and imaging

Resolution5.0 Megapixel

Mechanical

Sizedia. 50 x 64.9 mm
MountC
Weight246 g
Optical total length81.5 mm
Shipping weight (estimated)0.44 kg
