50 mm, 1", 10 MP, C-mount Machine Vision Lens, F2.4 Manual iris (LS-FFL-0633)
  • 50 mm, 1", 10 MP, C-mount Machine Vision Lens, F2.4 Manual iris (LS-FFL-0633)

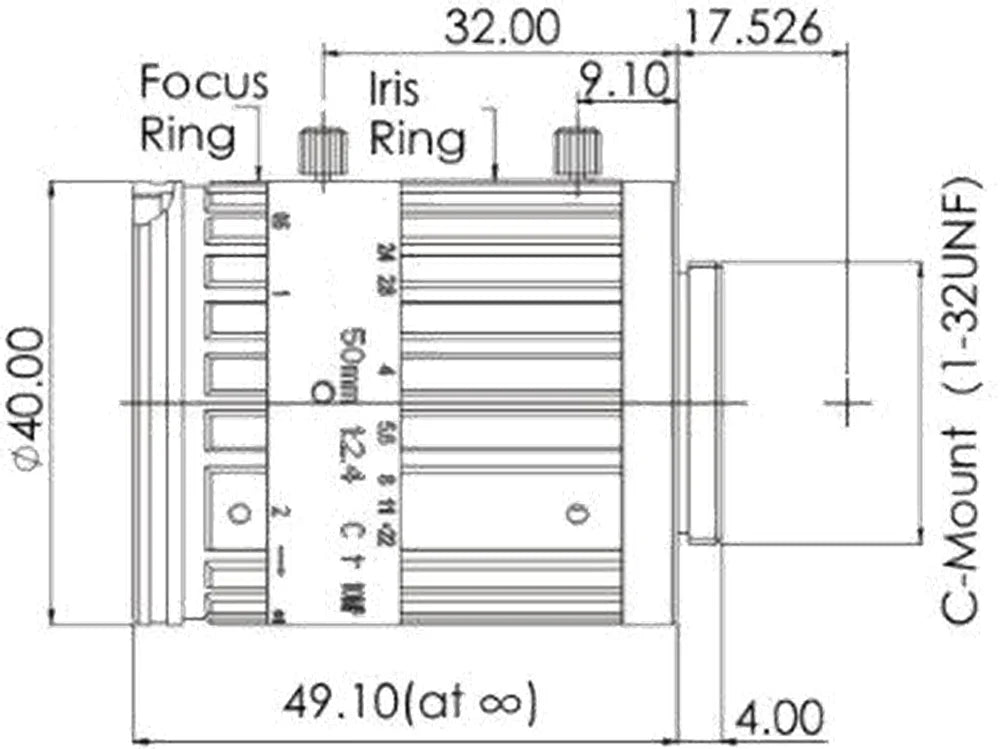

  • LS-FFL-0633 dimensions (mm)

Machine vision lenses

50 mm, 1", 10 MP, C-mount Machine Vision Lens, F2.4 Manual iris (LS-FFL-0633)

Model LS-FFL-0633

  • Focal length50 mm
  • MountC-mount
  • Sensor1"
  • ApertureF2.4 Manual iris
  • Resolution10 Megapixel
$499.00

Ships in 2-3 weeks

0.28 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

50 mm, 1", 10 MP, C-mount Machine Vision Lens, F2.4 Manual iris (LS-FFL-0633)LS-FFL-0633

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

50 mm, 1", 10 MP, C-mount Machine Vision Lens. 1" format, 10 megapixel C-mount FA machine vision lenses with manual iris, 35 to 75 mm, rated for 1" and 2/3" sensors. At a glance: focal length 50 mm; format 1"; resolution 10 Megapixel; aperture F2.4 Manual iris; mount C.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0633
Format1"
Angle of view (1", DxHxV)19.5 x 15.6 x 11.8 deg
Angle of view (2/3", DxHxV)12.2 x 10 x 7.6 deg

Optics

Focal length50 mm
ApertureF2.4 Manual iris
M.O.D.0.55 m
Distortion<0.1%
Filter threadM37.5 x P0.5

Sensor and imaging

Resolution10 Megapixel

Mechanical

MountC
Sizedia. 40 x 49.1 mm
Weight130 g
Shipping weight (estimated)0.28 kg

Other models in the 1" machine vision lenses (LS-FFL-S89) series

See all 40 models
ModelSize / key dataPriceAvailabilityLink
LS-FFL-0626 35 mm, 1", 5 MP, C-mount $339.00 Ships in 2-3 weeks View
LS-FFL-0629 50 mm, 1", 5 MP, C-mount $369.00 Ships in 2-3 weeks View
LS-FFL-0631 50 mm, 1", 5 MP, C-mount $369.00 Ships in 2-3 weeks View
LS-FFL-0600 8 mm, 1", 10 MP, C-mount $429.00 Ships in 2-3 weeks View
LS-FFL-0601 8 mm, 1", 10 MP, C-mount $429.00 Ships in 2-3 weeks View
LS-FFL-0602 8.5 mm, 1", 10 MP, C-mount $429.00 Ships in 2-3 weeks View
LS-FFL-0606 12 mm, 1", 10 MP, C-mount $429.00 Ships in 2-3 weeks View
LS-FFL-0634 75 mm, 1", 5 MP, C-mount $429.00 Ships in 2-3 weeks View
LS-FFL-0638 16 mm, 1", 10 MP, C-mount $439.00 Ships in 2-3 weeks View
LS-FFL-0607 16 mm, 1", 12 MP, C-mount $439.00 Ships in 2-3 weeks View
LS-FFL-0610 16 mm, 1", 10 MP, C-mount $439.00 Ships in 2-3 weeks View
LS-FFL-0613 16 mm, 1", 10 MP, C-mount $439.00 Ships in 2-3 weeks View
LS-FFL-0616 25 mm, 1", 10 MP, C-mount $459.00 Ships in 2-3 weeks View
LS-FFL-0619 25 mm, 1", 10 MP, C-mount $459.00 Ships in 2-3 weeks View
LS-FFL-0621 25 mm, 1", 10 MP, C-mount $459.00 Ships in 2-3 weeks View
LS-FFL-0637 100 mm, 1", 8 MP, C-mount $469.00 Ships in 2-3 weeks View
LS-FFL-0622 35 mm, 1", 10 MP, C-mount $479.00 Ships in 2-3 weeks View
LS-FFL-0624 35 mm, 1", 10 MP, C-mount $479.00 Ships in 2-3 weeks View
LS-FFL-0627 35 mm, 1", 10 MP, C-mount $479.00 Ships in 2-3 weeks View
LS-FFL-0628 50 mm, 1", 12 MP, C-mount $499.00 Ships in 2-3 weeks View
LS-FFL-0630 50 mm, 1", 12 MP, C-mount $499.00 Ships in 2-3 weeks View
LS-FFL-0632 50 mm, 1", 10 MP, C-mount $499.00 Ships in 2-3 weeks View
LS-FFL-0635 75 mm, 1", 10 MP, C-mount $549.00 Ships in 2-3 weeks View
LS-FFL-0636 75 mm, 1", 10 MP, C-mount $549.00 Ships in 2-3 weeks View
