Lense
  • Lense

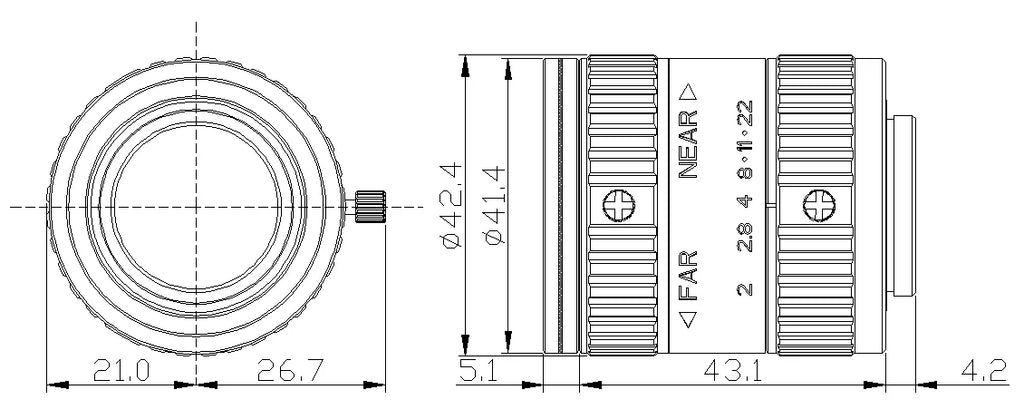

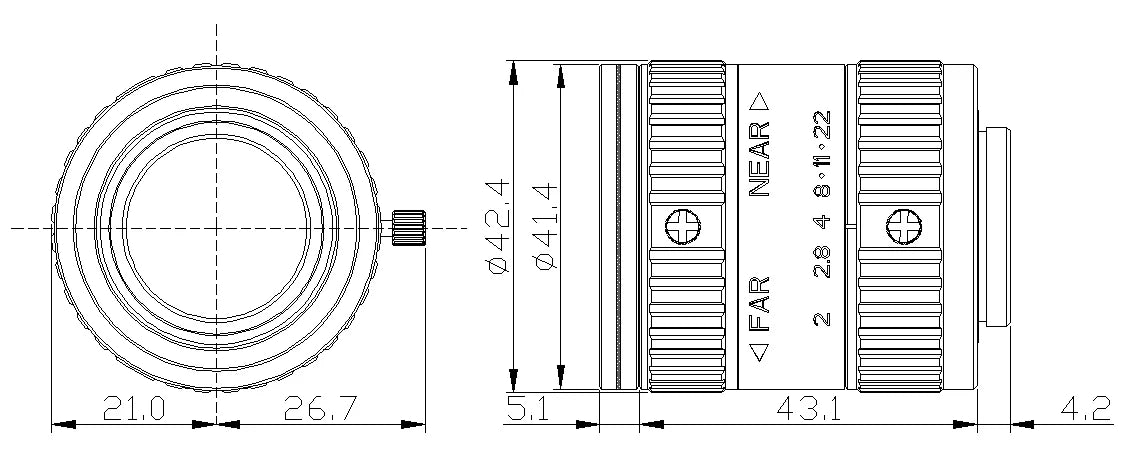

  • LS-FFL-0632 dimensions (mm)

Machine vision lenses

50 mm, 1", 10 MP, C-mount Machine Vision Lens, F2.0 Manual iris (LS-FFL-0632)

Model LS-FFL-0632

  • Focal length50 mm
  • MountC-mount
  • Sensor1"
  • ApertureF2.0 Manual iris
  • Resolution10 Megapixel
  • Field of view72.4 x 58.8 x 43.4 mm
$499.00

Ships in 2-3 weeks

0.27 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

50 mm, 1", 10 MP, C-mount Machine Vision Lens, F2.0 Manual iris (LS-FFL-0632)LS-FFL-0632

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

50 mm, 1", 10 MP, C-mount Machine Vision Lens. High resolution: 10 megapixel cover all 4K & 1080P. Large format: 1" size covering 1", 3/4, 2/3", 1/1.8", 1/2" camera. Low distortion: -0.01% low distortion use machine vision ITS. At a glance: focal length 50 mm; format 1"; resolution 10 Megapixel; aperture F2.0 Manual iris; mount C.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0632
Format1"
Angle of view (1", DxHxV)18.2 x 15 x 11 deg
Angle of view (1/2", DxHxV)9.2 x 7.3 x 5.5 deg
Angle of view (1/3", DxHxV)6.9 x 5.5 x 4.2 deg
NotesBe used for 10MP camera

Optics

Focal length50 mm
Back focal length21.35 mm
ApertureF2.0 Manual iris
Field of view (1", DxHxV, distance not stated)72.4 x 58.8 x 43.4 mm
Field of view (1/2", DxHxV, distance not stated)36.1 x 29 x 22 mm
Field of view (1/3", DxHxV, distance not stated)27.1 x 21.7 x 16.3 mm
M.O.D.0.25 m
Distortion-0.01%@1"; 0.012%@1/2"; 0.008%@1/3"
Filter threadM37 x 0.5

Sensor and imaging

Resolution10 Megapixel

Mechanical

Sizedia. 41.4 x 43.1 mm
MountC
Weight120 g
Shipping weight (estimated)0.27 kg
