Area scan cameras

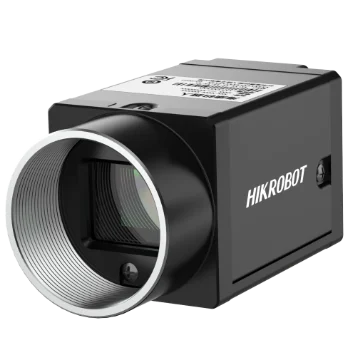

CU Series GigE Area Scan Cameras
- 108 models
- from $159.00
- Series HIK-CU-GIGE
The CU Series GigE Area Scan Cameras is a range of 108 area scan cameras from Hikrobot, from $159.00. It comes in 47 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.4 MP, 1/2.9", GigE, Color, 0.4 MP, 1/2.9", GigE, Mono, 0.4 MP, GigE, Color, 0.4 MP, GigE, Mono, 1.3 MP, 1/2", GigE, Color, 1.3 MP, 1/2", GigE, Mono, 1.3 MP, 1/2.7", GigE, Color, 1.3 MP, 1/2.7", GigE, Mono, 1.3 MP, GigE, Color, 1.3 MP, GigE, Mono, 1.6 MP, 1/2.9", GigE, Color, 1.6 MP, 1/2.9", GigE, Mono, 1.6 MP, GigE, Color, 1.6 MP, GigE, Mono, 1.9 MP, 1/2.6", GigE, Color, 1.9 MP, 1/2.6", GigE, Mono and 31 more
- Interface
- GigE
- Resolution
- Up to 3 MP, 5 MP, 6-10 MP, 12 MP, 16-25 MP
- Shutter
- Global, Rolling
- Colour
- Color, Mono
- Lens mount
- C-mount
- Sensor format
- 1/2.5" and smaller, 1/2", 1/1.8" - 1/1.56"
Features
- Optimized hardware design: stable performance and low power consumption
- Automatic and manual adjustment of gain, exposure time and other parameters
- Supports hardware trigger, software trigger and free-run modes
- Gigabit Ethernet interface: up to 100 m transmission without a repeater
- Compatible with GigE Vision V2.0 and the GenICam standard for seamless integration with third-party software platforms
- Adopts low power consumption design with stable performance.
- Supports auto and manual adjustment of gain, exposure time, etc.
- Supports hardware trigger, software trigger, free run, etc.
All 108 models in the CU Series GigE Area Scan Cameras
| Link | ||||||
|---|---|---|---|---|---|---|
| MV-CU004-10GC(NPOE) | 0.4 MP, GigE, Color | 720 × 540 | 126.5 fps @720 × 540 Bayer RG 8 | 1/2.9'' | $159.00 | View |
| MV-CU004-10GM(NPOE) | 0.4 MP, GigE, Mono | 720 × 540 | 126.5 fps @720 × 540 Mono 8 | 1/2.9'' | $159.00 | View |
| MV-CU004-10GC(NPOE) V2 | 0.4 MP, GigE, Color | 720 × 540 | 126.5 fps @720 × 540 Bayer RG 8 | 1/2.9'' | $159.00 | View |
| MV-CU004-10GM(NPOE) V2 | 0.4 MP, GigE, Mono | 720 × 540 | 126.5 fps @720 × 540 Mono 8 | 1/2.9'' | $159.00 | View |
| MV-CU050-30GC | 5 MP, 1/2.5", GigE, Color | 2592 × 1944 | 24 fps @ 2592 × 1944 Bayer GR 8 | 1/2.5" | $199.00 | View |
| MV-CU050-30GC V2 | 5 MP, 1/2.5", GigE, Color | 2592 × 1944 | 24 fps @ 2592 × 1944 Bayer GR 8 | 1/2.5" | $199.00 | View |
| MV-CU050-30GM V2 | 5 MP, 1/2.5", GigE, Mono | 2592 × 1944 | 24 fps @ 2592 × 1944 Mono 8 | 1/2.5" | $199.00 | View |
| MV-CU050-30GM | 5 MP, 1/2.5", GigE, Mono | 2592 × 1944 | 24 fps @ 2592 × 1944 Mono 8 | 1/2.5" | $199.00 | View |
| MV-CU013-A0GM | 1.3 MP, 1/2", GigE, Mono | 1280 × 1024 | 90.2 fps@1280 × 1024 Mono 8 | 1/2" | $229.00 | View |
| MV-CU013-A0GM V2 | 1.3 MP, 1/2", GigE, Mono | 1280 × 1024 | 90.2 fps @ 1280 × 1024 Mono 8 | 1/2" | $229.00 | View |
| MV-CU013-A0GC | 1.3 MP, 1/2", GigE, Color | 1280 × 1024 | 90.2 fps@1280 × 1024 Bayer GB 8 | 1/2" | $229.00 | View |
| MV-CU013-A0GC V2 | 1.3 MP, 1/2", GigE, Color | 1280 × 1024 | 90.2 fps @ 1280 × 1024 Bayer GB 8 | 1/2" | $229.00 | View |
| MV-CU013-A1GC | 1.3 MP, 1/2", GigE, Color | 1280 × 1024 | 90 fps @ 1280 × 1024 Bayer GB 8 | 1/2" | $229.00 | View |
| MV-CU013-A0GM(NPOE) | 1.3 MP, GigE, Mono | 1280 × 1024 | 90.2 fps @1280 × 1024 Mono 8 | 1/2'' | $229.00 | View |
| MV-CU013-A0GC(NPOE) | 1.3 MP, GigE, Color | 1280 × 1024 | 90.2 fps @1280 × 1024 Bayer GB 8 | 1/2'' | $229.00 | View |
| MV-CU013-80GM(NPOE) | 1.3 MP, 1/2.7", GigE, Mono | 1280 × 1024 | 89.9 fps@1280×1024 Mono 8 | 1/2.7" | $229.00 | View |
| MV-CU013-80GC(NPOE) | 1.3 MP, 1/2.7", GigE, Color | 1280 × 1024 | 89.9 fps@1280×1024 Bayer BG 8 | 1/2.7" | $229.00 | View |
| MV-CU013-80GM(NPOE) V2 | 1.3 MP, 1/2.7", GigE, Mono | 1280 × 1024 | 89.9 fps @1280 × 1024 Mono 8 | 1/2.7" | $229.00 | View |
| MV-CU013-80GC(NPOE) V2 | 1.3 MP, 1/2.7", GigE, Color | 1280 × 1024 | 89.9 fps @1280 × 1024 Bayer BG 8 | 1/2.7" | $229.00 | View |
| MV-CU013-A0GM(NPOE) V2 | 1.3 MP, GigE, Mono | 1280 × 1024 | 90.2 fps @1280 × 1024 Mono 8 | 1/2'' | $229.00 | View |
| MV-CU013-A0GC(NPOE) V2 | 1.3 MP, GigE, Color | 1280 × 1024 | 90.2 fps @1280 × 1024 Bayer GB 8 | 1/2'' | $229.00 | View |
| MV-CU013-80GM | 1.3 MP, 1/2.7", GigE, Mono | 1280 × 1024 | 89.9 fps @1280 × 1024 Mono 8 | 1/2.7" | $239.00 | View |
| MV-CU013-80GM V2 | 1.3 MP, 1/2.7", GigE, Mono | 1280 × 1024 | 89.9 fps @ 1280 × 1024 Mono 8 | 1/2.7" | $239.00 | View |
| MV-CU013-80GC | 1.3 MP, 1/2.7", GigE, Color | 1280 × 1024 | 89.9 fps @1280 × 1024 Bayer BG 8 | 1/2.7" | $239.00 | View |
| MV-CU013-80GC V2 | 1.3 MP, 1/2.7", GigE, Color | 1280 × 1024 | 89.9 fps @ 1280 × 1024 Bayer BG 8 | 1/2.7" | $239.00 | View |
| MV-CU004-10GM | 0.4 MP, 1/2.9", GigE, Mono | 720 × 540 | 126.5 fps @720 × 540 Mono 8 | 1/2.9" | $249.00 | View |
| MV-CU004-10GM V2 | 0.4 MP, 1/2.9", GigE, Mono | 720 × 540 | 126.5 fps @ 720 × 540 Mono 8 | 1/2.9" | $249.00 | View |
| MV-CU004-10GC | 0.4 MP, 1/2.9", GigE, Color | 720 × 540 | 126.5 fps @720 × 540 Bayer RG 8 | 1/2.9" | $249.00 | View |
| MV-CU004-10GC V2 | 0.4 MP, 1/2.9", GigE, Color | 720 × 540 | 126.5 fps @ 720 × 540 Bayer RG 8 | 1/2.9" | $249.00 | View |
| MV-CU016-10GC(NPOE) | 1.6 MP, GigE, Color | 1440 × 1080 | 65.8 fps @1440 × 1080 Bayer RG 8 | 1/2.9'' | $249.00 | View |
| MV-CU016-10GM(NPOE) | 1.6 MP, GigE, Mono | 1440 × 1080 | 65.8 fps @1440 × 1080 Mono 8 | 1/2.9'' | $249.00 | View |
| MV-CU016-10GM(NPOE) V2 | 1.6 MP, GigE, Mono | 1440 × 1080 | 65.8 fps @1440 × 1080 Mono 8 | 1/2.9'' | $249.00 | View |
| MV-CU016-10GC(NPOE) V2 | 1.6 MP, GigE, Color | 1440 × 1080 | 65.8 fps @1440 × 1080 Bayer RG 8 | 1/2.9'' | $249.00 | View |
| MV-CU016-10GM | 1.6 MP, 1/2.9", GigE, Mono | 1440 × 1080 | 65.8 fps @1440 × 1080 Mono 8 | 1/2.9" | $259.00 | View |
| MV-CU016-10GM V2 | 1.6 MP, 1/2.9", GigE, Mono | 1440 × 1080 | 65.8 fps @ 1440 × 1080 Mono 8 | 1/2.9" | $259.00 | View |
| MV-CU016-10GC | 1.6 MP, 1/2.9", GigE, Color | 1440 × 1080 | 65.8 fps @1440 × 1080 Bayer RG 8 | 1/2.9" | $259.00 | View |
| MV-CU016-10GC V2 | 1.6 MP, 1/2.9", GigE, Color | 1440 × 1080 | 65.8 fps @ 1440 × 1080 Bayer RG 8 | 1/2.9" | $259.00 | View |
| MV-CU020-80GM | 1.9 MP, 1/2.6", GigE, Mono | 1600 × 1200 | 53.5 fps @ 1600 × 1200 Mono 8 | 1/2.6" | $279.00 | View |
| MV-CU020-80GM V2 | 1.9 MP, 1/2.6", GigE, Mono | 1600 × 1200 | 53.5 fps @ 1600 × 1200 Mono 8 | 1/2.6" | $279.00 | View |
| MV-CU020-80GC | 1.9 MP, 1/2.6", GigE, Color | 1600 × 1200 | 53.5 fps @ 1600 × 1200 Bayer BG 8 | 1/2.6" | $279.00 | View |
| MV-CU020-80GC V2 | 1.9 MP, 1/2.6", GigE, Color | 1600 × 1200 | 53.5 fps @ 1600 × 1200 Bayer BG 8 | 1/2.6" | $279.00 | View |
| MV-CU020-80GC(NPOE) | 1.9 MP, 1/2.6", GigE, Color | 1600 × 1200 | 53.5 fps@1600 × 1200 Bayer BG 8 | 1/2.6" | $279.00 | View |
| MV-CU020-80GM(NPOE) | 1.9 MP, 1/2.6", GigE, Mono | 1600 × 1200 | 53.5 fps@1600 × 1200 Mono 8 | 1/2.6" | $279.00 | View |
| MV-CU020-80GC(NPOE) V2 | 1.9 MP, 1/2.6", GigE, Color | 1600 × 1200 | 53.5 fps@1600 × 1200 Bayer BG 8 | 1/2.6" | $279.00 | View |
| MV-CU020-80GM(NPOE) V2 | 1.9 MP, 1/2.6", GigE, Mono | 1600 × 1200 | 53.5 fps@1600 × 1200 Mono 8 | 1/2.6" | $279.00 | View |
| MV-CU020-19GM V3 | 2.1 MP, 1/2.8", GigE, Mono | 1920 × 1080 | 56 fps @ 1920 × 1080 Mono 8 | 1/2.8" | $289.00 | View |
| MV-CU020-19GC V3 | 2.1 MP, 1/2.8", GigE, Color | 1920 × 1080 | 56 fps @ 1920 × 1080 Mono 8 | 1/2.8" | $289.00 | View |
| MV-CU020-19GC(850nm) V3 | 2.1 MP, 1/2.8", GigE, Mono | 1920 × 1080 | 56 fps @ 1920 × 1080 Mono 8 | 1/2.8" | $289.00 | View |
| MV-CU060-10GM | 6.3 MP, 1/1.8", GigE, Mono | 3072 × 2048 | 19.1 fps @3072 × 2048 Mono 8 | 1/1.8" | $289.00 | View |
| MV-CU060-10GM V2 | 6.3 MP, 1/1.8", GigE, Mono | 3072 × 2048 | 19.1 fps @ 3072 × 2048 Mono 8 | 1/1.8" | $289.00 | View |
| MV-CU060-10GC | 6.3 MP, 1/1.8", GigE, Color | 3072 × 2048 | 19.1 fps @3072 × 2048 Bayer RG 8 | 1/1.8" | $289.00 | View |
| MV-CU060-10GC V2 | 6.3 MP, 1/1.8", GigE, Color | 3072 × 2048 | 19.1 fps @ 3072 × 2048 Bayer RG 8 | 1/1.8" | $289.00 | View |
| MV-CU050-60GM | 5 MP, 1/2.5", GigE, Mono | 2592 × 1944 | 23.1 fps @2592 × 1944 Mono 8 | 1/2.5" | $299.00 | View |
| MV-CU020-90GM | 2.5 MP, 1/1.7", GigE, Mono | 2048 × 1200 | 49 fps @ 2048 × 1200 Mono 8 | 1/1.7" | $309.00 | View |
| MV-CU020-90GC | 2.5 MP, 1/1.7", GigE, Color | 2048 × 1200 | 49 fps @ 2048 × 1200 Bayer GB 8 | 1/1.7" | $309.00 | View |
| MV-CU020-90GM V2 | 2.5 MP, 1/1.7", GigE, Mono | 2048 × 1200 | 49 fps @ 2048 × 1200 Mono 8 | 1/1.7" | $309.00 | View |
| MV-CU020-90GC V2 | 2.5 MP, 1/1.7", GigE, Color | 2048 × 1200 | 49 fps @ 2048 × 1200 Bayer GB 8 | 1/1.7" | $309.00 | View |
| MV-CU020-90GC(NPOE) | 2.5 MP, GigE, Color | 2048 × 1200 | 49 fps@2048 x 1200 Bayer GB 8 | 1/1.7'' | $309.00 | View |
| MV-CU020-90GM(NPOE) | 2.5 MP, GigE, Mono | 2048 × 1200 | 49 fps@2048 x 1200 Mono 8 | 1/1.7'' | $309.00 | View |
| MV-CU020-90GM(NPOE) V2 | 2.5 MP, GigE, Mono | 2048 × 1200 | 49 fps@2048 x 1200 Bayer GB 8 | 1/1.7” | $309.00 | View |
| MV-CU020-90GC(NPOE) V2 | 2.5 MP, GigE, Color | 2048 × 1200 | 49 fps@2048 x 1200 Bayer GB 8 | 1/1.7” | $309.00 | View |
| HK-YX31Z-2WM(NPOE) | 1.3 MP, 1/2.7", GigE, Mono | 1280 × 1024 | 89.9 fps@1280×1024 Mono 8 | 1/2.7" | $419.00 | View |
| XXV-013C-XAG | 1.3 MP, GigE, Color | 1280 × 1024 | 90.2 fps @1280 × 1024 Bayer GB 8 | 1/2'' | $419.00 | View |
| XXV-013M-XAG | 1.3 MP, GigE, Mono | 1280 × 1024 | 90.2 fps @1280 × 1024 Mono 8 | 1/2'' | $419.00 | View |
| MV-CU050-30GM(NPOE) | 5 MP, GigE, Mono | 2592 × 1944 | 24 fps @2592 × 1944 Mono 8 | 1/2.5'' | $449.00 | View |
| MV-CU050-30GC(NPOE) | 5 MP, GigE, Color | 2592 × 1944 | 24 fps @2592 × 1944 Bayer GR 8 | 1/2.5'' | $449.00 | View |
| MV-CU050-30GM(NPOE) V2 | 5 MP, GigE, Mono | 2592 × 1944 | 24 fps @2592 × 1944 Mono 8 | 1/2.5'' | $449.00 | View |
| MV-CU050-30GC(NPOE) V2 | 5 MP, GigE, Color | 2592 × 1944 | 24 fps @2592 × 1944 Bayer GR 8 | 1/2.5'' | $449.00 | View |
| MV-CU050-90GM(NPOE) | 5.6 MP, GigE, Mono | 2600 × 2160 | 21 fps@2600 x 2160 Mono 8 | 1/2” | $469.00 | View |
| MV-CU050-90GC(NPOE) | 5.6 MP, GigE, Color | 2600 × 2160 | 21 fps@2600 x 2160 Bayer BG 8 | 1/2” | $469.00quote | View |
| MV-CU060-60GM | 6.2 MP, 1/2.4", GigE, Mono | 3200 × 1944 | 19 fps @ 3200 × 1944 Mono 8 | 1/2.4" | $489.00 | View |
| MV-CU060-60GM V2 | 6.2 MP, 1/2.4", GigE, Mono | 3200 × 1944 | 19 fps @ 3200 × 1944 Mono 8 | 1/2.4" | $489.00 | View |
| MV-CU060-60GC | 6.2 MP, 1/2.4", GigE, Color | 3200 × 1944 | 19 fps @ 3200 × 1944 Bayer BG 8 | 1/2.4" | $489.00 | View |
| MV-CU060-60GC V2 | 6.2 MP, 1/2.4", GigE, Color | 3200 × 1944 | 19 fps @ 3200 × 1944 Bayer BG 8 | 1/2.4" | $489.00 | View |
| MV-CU060-60GC(NPOE) | 6.2 MP, GigE, Color | 3200 × 1944 | 19 fps@3200 × 1944 Bayer BG 8 | 1/2.4'' | $489.00 | View |
| MV-CU060-60GM(NPOE) | 6.2 MP, GigE, Mono | 3200 × 1944 | 19 fps@3200 × 1944 Mono 8 | 1/2.4'' | $489.00 | View |
| MV-CU060-60GM(NPOE) V2 | 6.2 MP, GigE, Mono | 3200 × 1944 | 19 fps@3200 × 1944 Mono 8 | 1/2.4'' | $489.00 | View |
| MV-CU060-60GC(NPOE) V2 | 6.2 MP, GigE, Color | 3200 × 1944 | 19 fps@3200 × 1944 Bayer BG 8 | 1/2.4'' | $489.00 | View |
| MV-CU060-10GC(NPOE) | 6.3 MP, GigE, Color | 3072 × 2048 | 19.1 fps @3072 × 2048 Bayer RG 8 | 1/1.8'' | $499.00 | View |
| MV-CU060-10GM(NPOE) | 6.3 MP, GigE, Mono | 3072 × 2048 | 19.1 fps @3072 × 2048 Mono 8 | 1/1.8'' | $499.00 | View |
| MV-CU060-10GM(NPOE) V2 | 6.3 MP, GigE, Mono | 3072 × 2048 | 19.1 fps @3072 × 2048 Mono 8 | 1/1.8'' | $499.00 | View |
| MV-CU060-10GC(NPOE) V2 | 6.3 MP, GigE, Color | 3072 × 2048 | 19.1 fps @3072 × 2048 Bayer RG 8 | 1/1.8'' | $499.00 | View |
| MV-CU050-90GM | 5.6 MP, 1/2", GigE, Mono | 2600 × 2160 | 21 fps @2600 × 2160 Mono 8 | 1/2" | $529.00 | View |
| MV-CU050-90GC | 5.6 MP, 1/2", GigE, Color | 2600 × 2160 | 21 fps @2600 × 2160 Bayer BG 8 | 1/2" | $529.00quote | View |
| MV-NT002-60GN | 2.1 MP, GigE, Mono | 1920 × 1080 | 56 fps @1920 × 1080 Mono8 | 1/2.8'' | $529.00 | View |
| MV-CU120-10GM | 12.2 MP, 1/1.7", GigE, Mono | 4024 × 3036 | 9.7 fps @4024 × 3036 Mono 8 | 1/1.7" | $539.00 | View |
| MV-CU120-10GM V2 | 12.2 MP, 1/1.7", GigE, Mono | 4024 × 3036 | 9.7 fps @ 4024 × 3036 Mono 8 | 1/1.7" | $539.00 | View |
| MV-CU120-10GC | 12.2 MP, 1/1.7", GigE, Color | 4024 × 3036 | 9.7 fps @4024 × 3036 Bayer RG 8 | 1/1.7" | $539.00 | View |
| MV-CU120-10GC V2 | 12.2 MP, 1/1.7", GigE, Color | 4024 × 3036 | 9.7 fps @ 4024 × 3036 Bayer RG 8 | 1/1.7" | $539.00 | View |
| MV-CU120-10GC(NPOE) | 12.2 MP, GigE, Color | 4024 × 3036 | 9.7 fps @4024 × 3036 Bayer RG 8 | 1/1.7'' | $689.00 | View |
| MV-CU120-10GM(NPOE) | 12.2 MP, GigE, Mono | 4024 × 3036 | 9.7 fps @4024 × 3036 Mono 8 | 1/1.7'' | $689.00 | View |
| MV-CU120-10GM(NPOE) V2 | 12.2 MP, GigE, Mono | 4024 × 3036 | 9.7 fps @4024 × 3036 Mono 8 | 1/1.7'' | $689.00 | View |
| MV-CU120-10GC(NPOE) V2 | 12.2 MP, GigE, Color | 4024 × 3036 | 9.7 fps @4024 × 3036 Bayer RG 8 | 1/1.7'' | $689.00 | View |
| MV-DV2592-300GM | 5 MP, GigE, Mono | 2592 × 1944 | 23.1 fps @2592 × 1944 Mono8 | 1/2.5'' | $819.00 | View |
| MV-CU200-20GC | 19.7 MP, 1/1.8", GigE, Color | 5120 × 3840 | 5.9 fps @ 5120 × 3840 Bayer GR 8 | 1/1.8" | $879.00 | View |
| MV-CU200-20GC V2 | 19.7 MP, 1/1.8", GigE, Color | 5120 × 3840 | 5.9 fps @ 5120 × 3840 Bayer GR 8 | 1/1.8" | $879.00 | View |
| MV-CU200-20GM | 19.7 MP, 1/1.8", GigE, Mono | 5120 × 3840 | 5.9 fps @ 5120 × 3840 Mono 8 | 1/1.8" | $879.00 | View |
| MV-CU200-20GM V2 | 19.7 MP, 1/1.8", GigE, Mono | 5120 × 3840 | 5.9 fps @ 5120 × 3840 Mono 8 | 1/1.8" | $879.00 | View |
| MV-CU200-20GC(NPOE) | 19.7 MP, GigE, Color | 5120 × 3840 | 5.9 fps @5120 × 3840 Bayer GR 8 | 1/1.8'' | $879.00 | View |
| MV-CU200-20GM(NPOE) | 19.7 MP, GigE, Mono | 5120 × 3840 | 5.9 fps @5120 × 3840 Mono 8 | 1/1.8'' | $879.00 | View |
| MV-CU200-20GM(NPOE) V2 | 19.7 MP, GigE, Mono | 5120 × 3840 | 5.9 fps @5120 × 3840 Mono 8 | 1/1.8'' | $879.00 | View |
| MV-CU200-20GC(NPOE) V2 | 19.7 MP, GigE, Color | 5120 × 3840 | 5.9 fps @5120 × 3840 Bayer GR 8 | 1/1.8'' | $879.00 | View |
| SY-600M | 6.3 MP, GigE, Mono | 3072 × 2048 | 19.1 fps @3072 × 2048 Mono 8 | 1/1.8'' | $909.00 | View |
| MV-DV4024-50GM | 12.2 MP, 1/1.7", GigE, Mono | 4024 × 3036 | 9.7 fps @ 4024 × 3036 Mono 8 | 1/1.7" | $1,259.00 | View |
| HK-YX021-9WM(NPOE) | 12.2 MP, GigE, Mono | 4024 × 3036 | 9.7 fps @4024 × 3036 Mono 8 | 1/1.7'' | $1,259.00 | View |
| MV-XD0120-10GM | 12.2 MP, GigE, Mono | 4024 × 3036 | 9.7 fps @4024 × 3036 Mono 8 | 1/1.7'' | $1,259.00 | View |
| MV-XD0120-10GC | 12.2 MP, GigE, Color | 4024 × 3036 | 9.7 fps @4024 × 3036 Bayer RG 8 | 1/1.7'' | $1,259.00 | View |
| SY-1200M | 12.2 MP, GigE, Mono | 4024 × 3036 | 9.7 fps @4024 × 3036 Mono 8 | 1/1.7'' | $1,259.00 | View |
