Area scan cameras

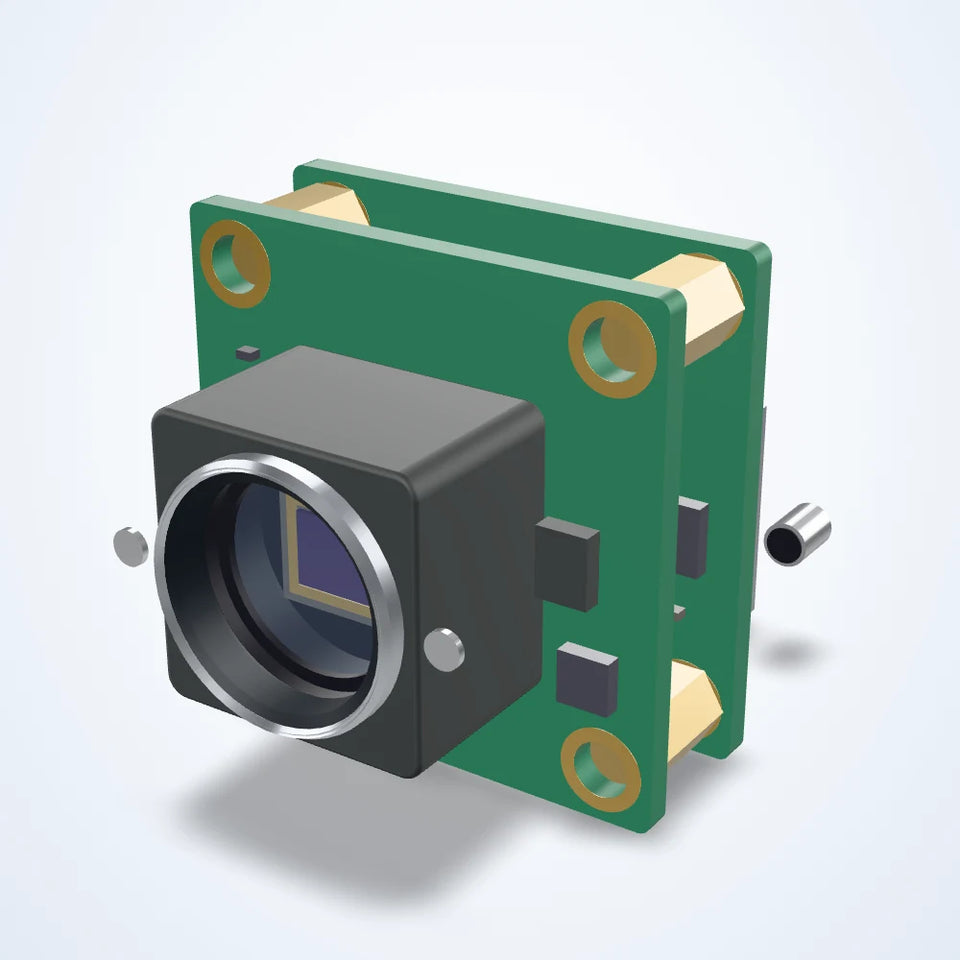

GigE area scan cameras (LS-CMR-S03)
- 64 models
- from $305.00
- Series LS-CMR-S03
The GigE area scan cameras (LS-CMR-S03) is a range of 64 area scan cameras from LumaSpec Vision, from $305.00. It comes in 48 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.3 MP, 1/4", GigE, Mono/Color, 0.4 MP, 1/2.2", GigE, Mono, 0.4 MP, 1/2.9", GigE, Mono/Color, 0.5 MP, 1/3.6", GigE, Mono, 0.5 MP, 1/3.6", GigE, Mono/Color, 1 MP, 1/4", GigE, Mono, 1.2 MP, 1/3", GigE, Mono/Color, 1.3 MP, 1/1.22", GigE, Mono, 1.3 MP, 1/2", GigE, Mono/Color, 1.3 MP, 1/2.7", GigE, Mono/Color, 1.6 MP, 1/2.9", GigE, Mono/Color, 1.8 MP, 1.1", GigE, Mono/Color, 2 MP, 1/1.7", GigE, Mono/Color, 2.1 MP, 1/2.8", GigE, Mono/Color, 2.3 MP, 1/1.2", GigE, Mono/Color, 2.3 MP, 1/2.2", GigE, Mono and 32 more
- Interface
- GigE
- Resolution
- Up to 3 MP, 5 MP, 6-10 MP, 12 MP, 16-25 MP, 29 MP +
- Shutter
- Global, Rolling
- Colour
- Color, Mono
- Lens mount
- M12, M58, C-mount
- Sensor format
- 1/2.5" and smaller, 1/2", 1/1.8" - 1/1.56", 2/3", 1/1.2", 1", 1.1" - 1.2", 4/3" - APS-C, APS-H / Full frame
Features
- Global shutter: moving parts are imaged without skew
- GigE Vision / GenICam compatible software interface
- Hardware trigger input and strobe output for lights and sensors
- Power over Ethernet: power and data on one cable
All 64 models in the GigE area scan cameras (LS-CMR-S03)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-CMR-0009 | 0.4 MP, 1/2.2", GigE, Mono | 720 x 540 | 313 fps | GigE | Price on request | View |
| LS-CMR-0022 | 1 MP, 1/4", GigE, Mono | 1000 x 1000 | 120 fps | GigE | Price on request | View |
| LS-CMR-0015 | 1.3 MP, 1/1.22", GigE, Mono | 1280 x 1024 | 93 fps | GigE | Price on request | View |
| LS-CMR-0018 | 1.3 MP, 1/1.22", GigE, Mono | 1280 x 1024 | 93 fps | GigE | Price on request | View |
| LS-CMR-0014 | 1.2 MP, 1/3", GigE, Mono/Color | 1280 px x 960 px | 54 fps | GigE | $305.00 | View |
| LS-CMR-0005 | 0.3 MP, 1/4", GigE, Mono/Color | 640 px x 480 px | 120 fps | GigE | $320.00 | View |
| LS-CMR-0016 | 1.3 MP, 1/2.7", GigE, Mono/Color | 1280 px x 1024 px | 85 fps | GigE | $330.00 | View |
| LS-CMR-0020 | 1.6 MP, 1/2.9", GigE, Mono/Color | 1440 px x 1080 px | 77 fps | GigE | $330.00 | View |
| LS-CMR-0034 | 5 MP, 1/2.5", GigE, Mono | 2592 px x 1944 px | 14 fps | GigE | $340.00 | View |
| LS-CMR-0006 | 0.3 MP, 1/4", GigE, Mono/Color | 640 px x 480 px | 300 fps | GigE | $350.00 | View |
| LS-CMR-0007 | 0.4 MP, 1/2.9", GigE, Mono/Color | 720 px x 540 px | 300 fps | GigE | $350.00 | View |
| LS-CMR-0008 | 0.4 MP, 1/2.9", GigE, Mono/Color | 720 × 540 (0.4MP) | 310 fps | GigE (1 Gbps, up to 100 m) | $350.00 | View |
| LS-CMR-0010 | 0.5 MP, 1/3.6", GigE, Mono | 800 px x 600 px | 120 fps | GigE | $350.00 | View |
| LS-CMR-0011 | 0.5 MP, 1/3.6", GigE, Mono/Color | 800 px x 600 px | 120 fps | GigE | $350.00 | View |
| LS-CMR-0013 | 1.2 MP, 1/3", GigE, Mono/Color | 1280 px x 960 px | 30 fps | GigE | $350.00 | View |
| LS-CMR-0023 | 2.1 MP, 1/2.8", GigE, Mono/Color | 1920 px x 1080 px | 22 fps | GigE | $350.00 | View |
| LS-CMR-0046 | 6.3 MP, 1/1.8", GigE, Mono/Color | 3072 px x 2048 px | 19.1 fps | GigE | $350.00 | View |
| LS-CMR-0017 | 1.3 MP, 1/2", GigE, Mono/Color | 1280 px x 1024 px | 90 fps | GigE | $360.00 | View |
| LS-CMR-0047 | 6.3 MP, 1/1.8", GigE, Mono/Color | 3072 px x 2048 px | 19.1 fps | GigE | $360.00 | View |
| LS-CMR-0045 | 6.3 MP, 1/1.8", GigE, Mono/Color | 3072 px x 2048 px | 18 fps | GigE | $370.00 | View |
| LS-CMR-0012 | 0.5 MP, 1/3.6", GigE, Mono/Color | 800 px x 600 px | 200 fps | GigE | $375.00 | View |
| LS-CMR-0019 | 1.6 MP, 1/2.9", GigE, Mono/Color | 1440 × 1080 (1.6MP) | 77 fps | GigE | $395.00 | View |
| LS-CMR-0036 | 5 MP, 1/2.5", GigE, Mono/Color | 2592 px x 1944 px | 23 fps | GigE | $400.00 | View |
| LS-CMR-0037 | 5 MP, 1/2.5", GigE, Mono/Color | 2592 px x 1944 px | 23 fps | GigE | $400.00 | View |
| LS-CMR-0035 | 5 MP, 2/3", GigE, Mono/Color | 2448 px x 2048 px | 20 fps | GigE | $470.00 | View |
| LS-CMR-0041 | 5 MP, 2/3", GigE, Mono | 2448 px x 2048 px | 24.2 fps | GigE | $470.00 | View |
| LS-CMR-0042 | 5 MP, 2/3", GigE, Color | 2448 px x 2048 px | 24.2 fps | GigE | $470.00 | View |
| LS-CMR-0033 | 5.3 MP, 2/3", GigE, Mono/Color | 2592 px x 2048 px | 21 fps | GigE | $471.00 | View |
| LS-CMR-0024 | 2.3 MP, 1/1.2", GigE, Mono/Color | 1920 px x 1200 px | 40 fps | GigE | $500.00 | View |
| LS-CMR-0030 | 3.1 MP, 1/1.8", GigE, Color/Mono | 2048 px x 1536 px | 35 fps | GigE | $520.00 | View |
| LS-CMR-0026 | 2.3 MP, 1/2.2", GigE, Mono | 1920 px x 1200 px | 52 fps | GigE | $535.00 | View |
| LS-CMR-0043 | 5 MP, 2/3", GigE, Mono/Color | 2448 px x 2048 px | 24.2 fps | GigE | $550.00 | View |
| LS-CMR-0053 | 12 MP, 1/1.7", GigE, Mono/Color | 4000 px x 3000 px | 9 fps | GigE | $560.00 | View |
| LS-CMR-0040 | 5 MP, 2/3", GigE, Mono/Color | 2448 px x 2048 px | 24 fps (36 fps Lossless Compression) | GigE | $570.00 | View |
| LS-CMR-0027 | 2 MP, 1/1.7", GigE, Mono/Color | 1624 px x 1240 px | 56 fps | GigE | $575.00 | View |
| LS-CMR-0028 | 2 MP, 1/1.7", GigE, Mono/Color | 1624 × 1240 (2MP) | 60 fps | GigE Vision | $595.00 | View |
| LS-CMR-0025 | 2.3 MP, 2/3", GigE, Mono/Color | 1920 px x 1200 px | 50 fps | GigE | $600.00 | View |
| LS-CMR-0031 | 3 MP, 1/1.8", GigE, Mono/Color | 3 MP | 38 fps | GigE | $620.00 | View |
| LS-CMR-0032 | 5.3 MP, 1", GigE, Mono/Color | 2592 px x 2048 px | 20 fps | GigE | $650.00 | View |
| LS-CMR-0060 | 19 MP, 1", GigE, Mono/Color | 5472 px x 3468 px | 19.2 fps | USB3.0 | $700.00 | View |
| LS-CMR-0058 | 19 MP, 1", GigE, Mono/Color | 5472 px x 3468 px | 5 fps | GigE | $774.00 | View |
| LS-CMR-0063 | 19.7 MP, GigE, Mono/Color | 5120 x 3840 | 5.9 fps | GigE | $790.00 | View |
| LS-CMR-0021 | 1.8 MP, 1.1", GigE, Mono/Color | 1604 px x 1100 px | 66 fps | GigE | $800.00 | View |
| LS-CMR-0051 | 8.8 MP, 1/1.1", GigE, Mono | 4096 px x 2160 px | 14 fps | GigE | $985.00 | View |
| LS-CMR-0052 | 9.1 MP, 2/3", GigE, Mono | 4200 px x 2160 px | 13 fps | GigE | $985.00 | View |
| LS-CMR-0056 | 12.6 MP, 1", GigE, Mono/Color | 4096 px x 3072 px | 9 fps | GigE | $1,040.00 | View |
| LS-CMR-0057 | 12.6 MP, 1", GigE, Mono | 4096 px x 3072 px | 9 fps | GigE | $1,040.00 | View |
| LS-CMR-0054 | 12.3 MP, 1.1", GigE, Mono/Color | 4096 × 3000 (12MP) | 30.5 fps | GigE | $1,320.00 | View |
| LS-CMR-0050 | 8.8 MP, GigE, Mono/Color | 4096 × 2160 | 13.7 fps (22 fps with Lossless Compression) | GigE | $1,415.00 | View |
| LS-CMR-0055 | 12.3 MP, 1/1.1", GigE, Mono/Color | 4096 × 3000 (12MP) | 9.5 fps | GigE | $1,540.00 | View |
| LS-CMR-0049 | 8.8 MP, 1/1.1", GigE, Mono/Color | 4096 × 2160 (9MP) | 9.5 fps | GigE | $1,540.00 | View |
| LS-CMR-0066 | 26.2 MP, 1.1", GigE, Mono/Color | 5120 px x5120 px | 4 fps | GigE, PoE | $1,550.00 | View |
| LS-CMR-0062 | 20 MP, GigE, Mono/Color | 5.9 fps | GigE | $1,755.00 | View | |
| LS-CMR-0065 | 26.2 MP, GigE, Mono/Color | 5120 x 5120 | 4.5 fps (7 fps Lossless Compression) | GigE | $1,790.00 | View |
| LS-CMR-0061 | 20.3 MP, 1.1", GigE, Mono/Color | 4504 × 4504 | 5.9 fps (8 fps Lossless Compression) | GigE, PoE | $1,800.00 | View |
| LS-CMR-0048 | 8.8 MP, 1", GigE, Mono/Color | 4096 px x 2160 px | 13 fps | GigE | $1,880.00 | View |
| LS-CMR-0064 | 24.6 MP, GigE, Mono/Color | 5328 × 4608 | 4.9 fps / 7 fps (lossless) | GigE, PoE | $2,165.00 | View |
| LS-CMR-0039 | 5 MP, 2/3", GigE, Mono | 2448 px x 2048 px | 24 fps | GigE | $3,660.00 | View |
| LS-CMR-0044 | 5 MP, 2/3", GigE, Color | 2448 px x 2048 px | 24.2 fps | GigE | $4,250.00 | View |
| LS-CMR-0038 | 5 MP, 2/3", GigE, Color | 2448 px x 2048 px | 24 fps | GigE | $4,290.00 | View |
| LS-CMR-0069 | 65.4 MP, GigE, Mono/Color | 9344 x 7000 (65MP) | 1.7 fps | GigE | $4,970.00 | View |
| LS-CMR-0070 | 65 MP, GigE, Mono/Color | 9344px x 7000px | 1.7 fps | GigE | $4,970.00 | View |
| LS-CMR-0067 | 31.4 MP, GigE, Mono/Color | 6464 px x4852 px | 3 fps | GigE | $5,565.00 | View |
| LS-CMR-0068 | 46.7 MP, GigE, Mono/Color | 9344px x 5000px | 2.6 fps | GigE | from $6,850.00 | View |
