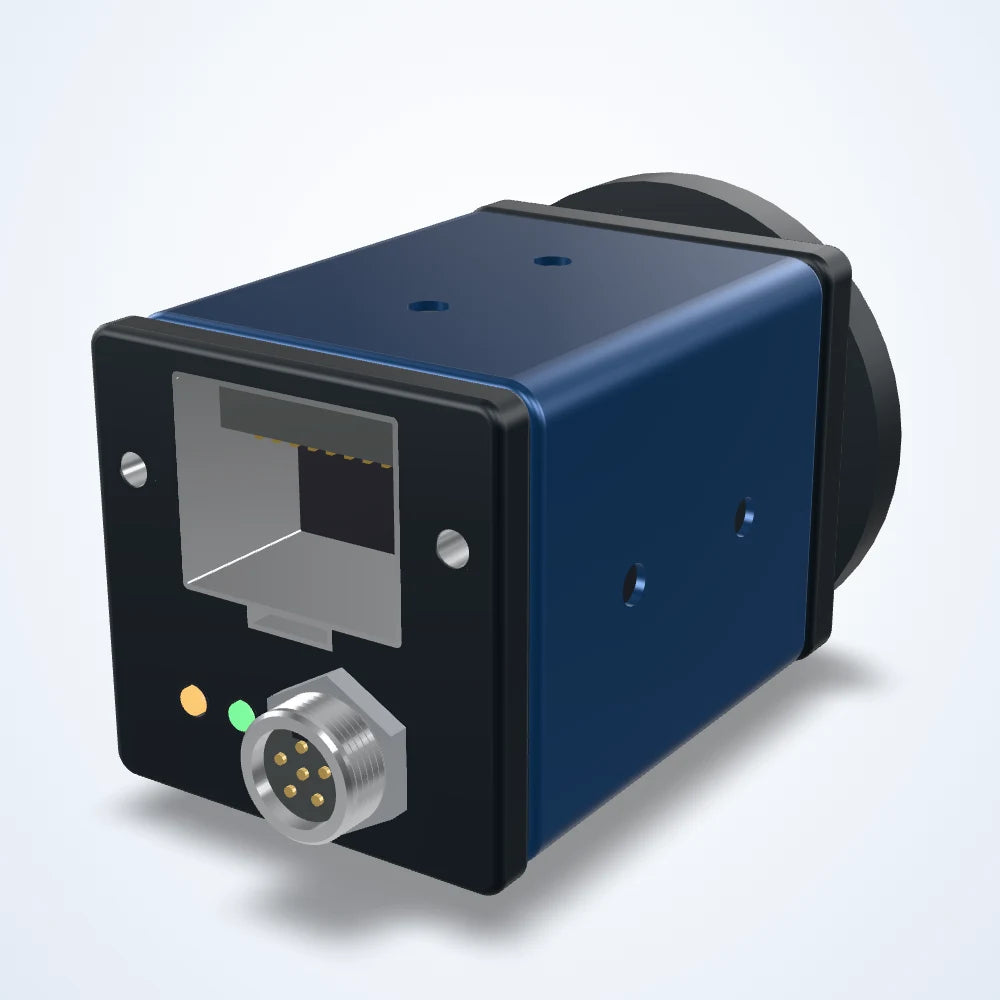

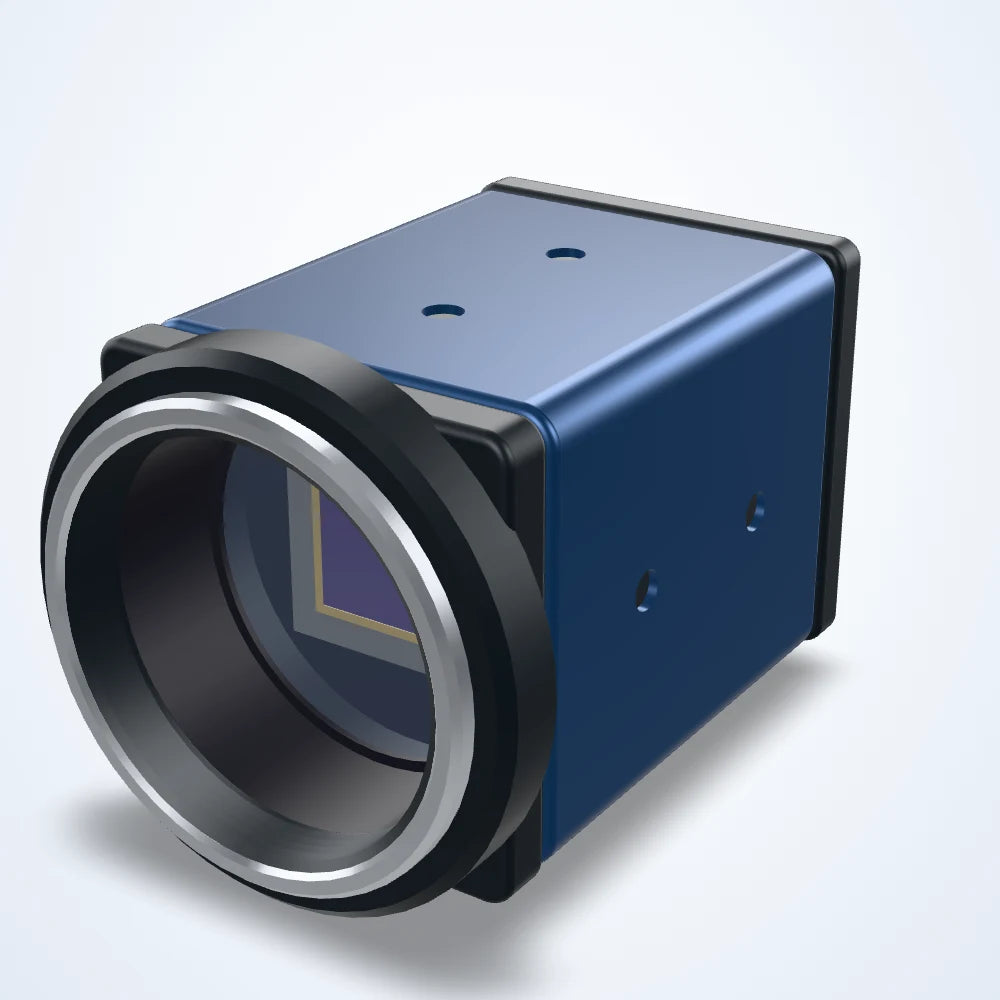

5 MP GigE area scan camera, IMX250MZR, 2/3" global shutter, 24 fps

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

5 MP GigE area scan camera, IMX250MZR, 2/3" global shutter, 24 fps (LS-CMR-0039)

Model LS-CMR-0039

Resolution2448 px x 2048 px
Sensor2/3"
InterfaceGigE
Speed24 fps
Lens mountC-mount
Pixel size3.45 μm x 3.45 μm

$3,660.00

Ships in 3-4 weeks

0.26 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

5 MP area scan camera for inspection, measurement and guidance on the production line. IMX250MZR CMOS sensor (2/3"); 2448 x 2048 pixels of 3.45 μm; up to 24 frames per second; global shutter; GigE interface; C-mount lens mount.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CMR-0039

Sensor and imaging

Resolution	2448 px x 2048 px
Pixel size	3.45 μm x 3.45 μm
Max. frame rate	24 fps
Sensor make	Sony
Sensor model	IMX 250MZR
Shutter	Global Shutter
Sensor size	2/3"
Sensor type	CMOS
Dynamic range	70.0 dB
SNR	>38.0 dB
Pixel bit depth	8 / 10 / 12 bits

Interfaces and I/O

Data interface	GigE
Digital I/O	1 input(opto-isolated), ; 1 output(opto-isolated),; 1 bi-directional custom non-isolated I/O

Environment and compliance

Operating temperature	-30 - 50°C(Operating), -30 - 80°C(Storage)
Certification	GigE Vision and GenICam

Computing

Operating system	Windows, Linux

Electrical

Trigger mode	● Soft Trigger; ● Hardware Trigger; ● Free Run
Power supply	PoE or 6-24 VDC

Mechanical

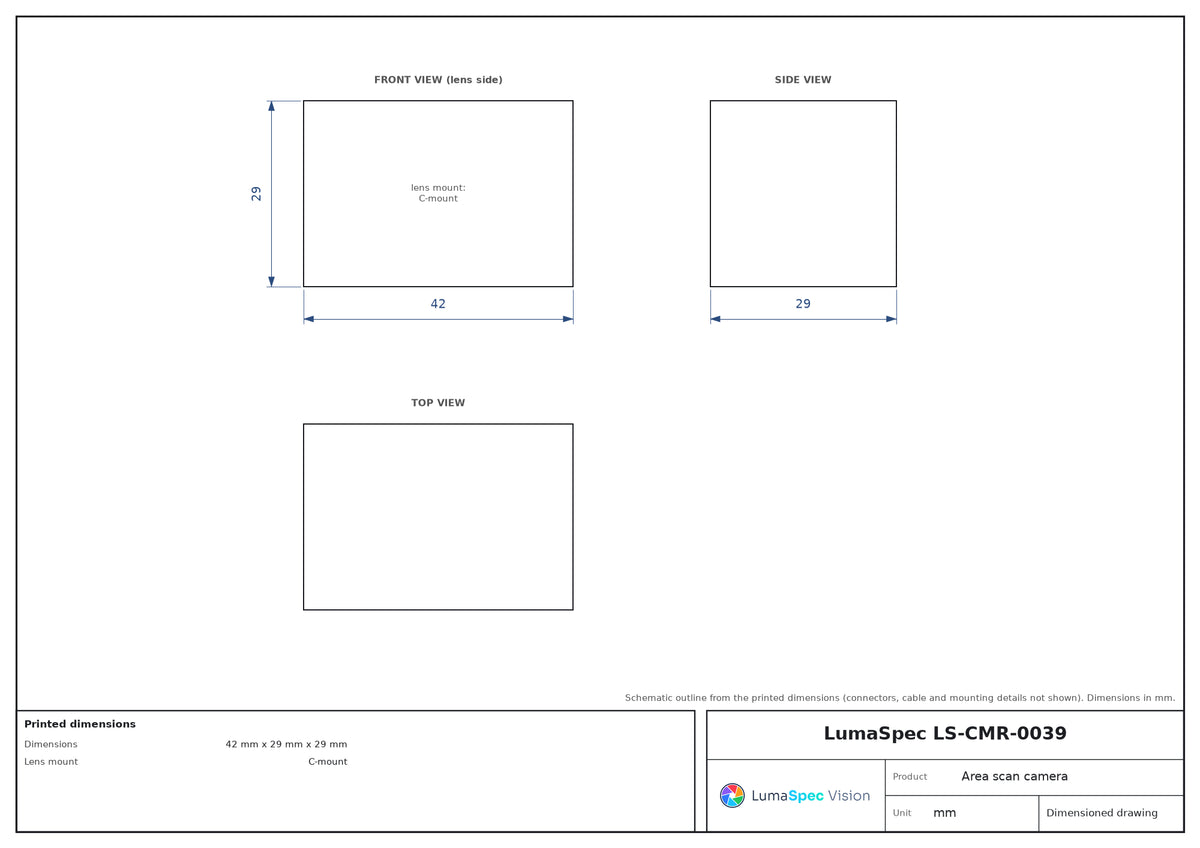

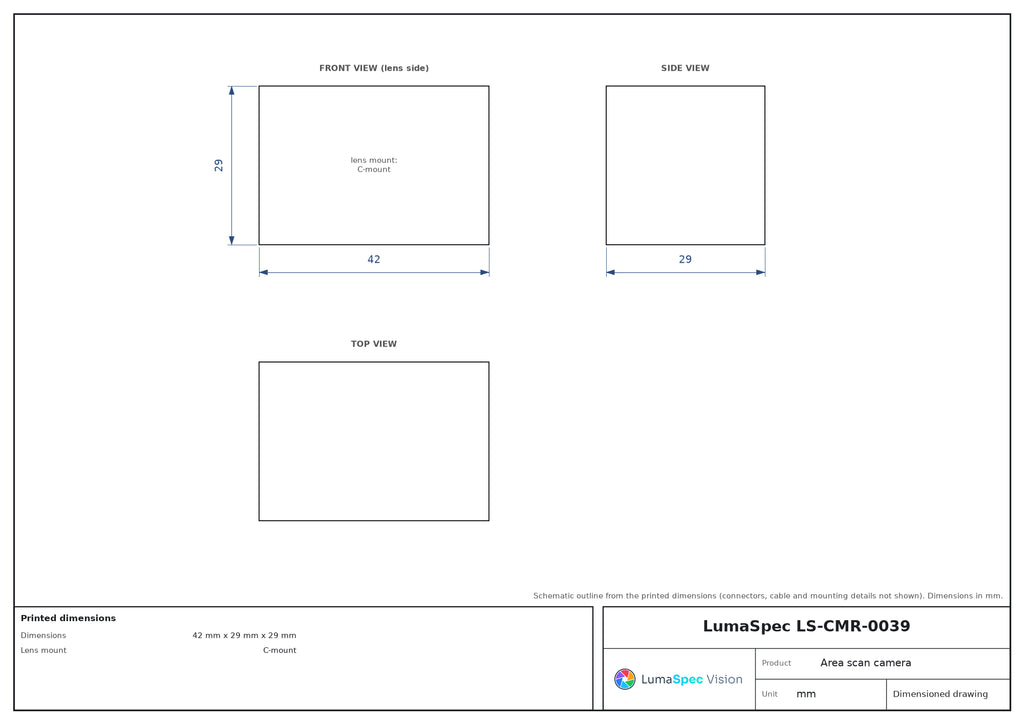

Dimensions	42 mm x 29 mm x 29 mm
Lens mount	C-mount
Weight	88g
