9.1 MP GigE area scan camera, GMAX2509, 2/3" global shutter, 13 fps

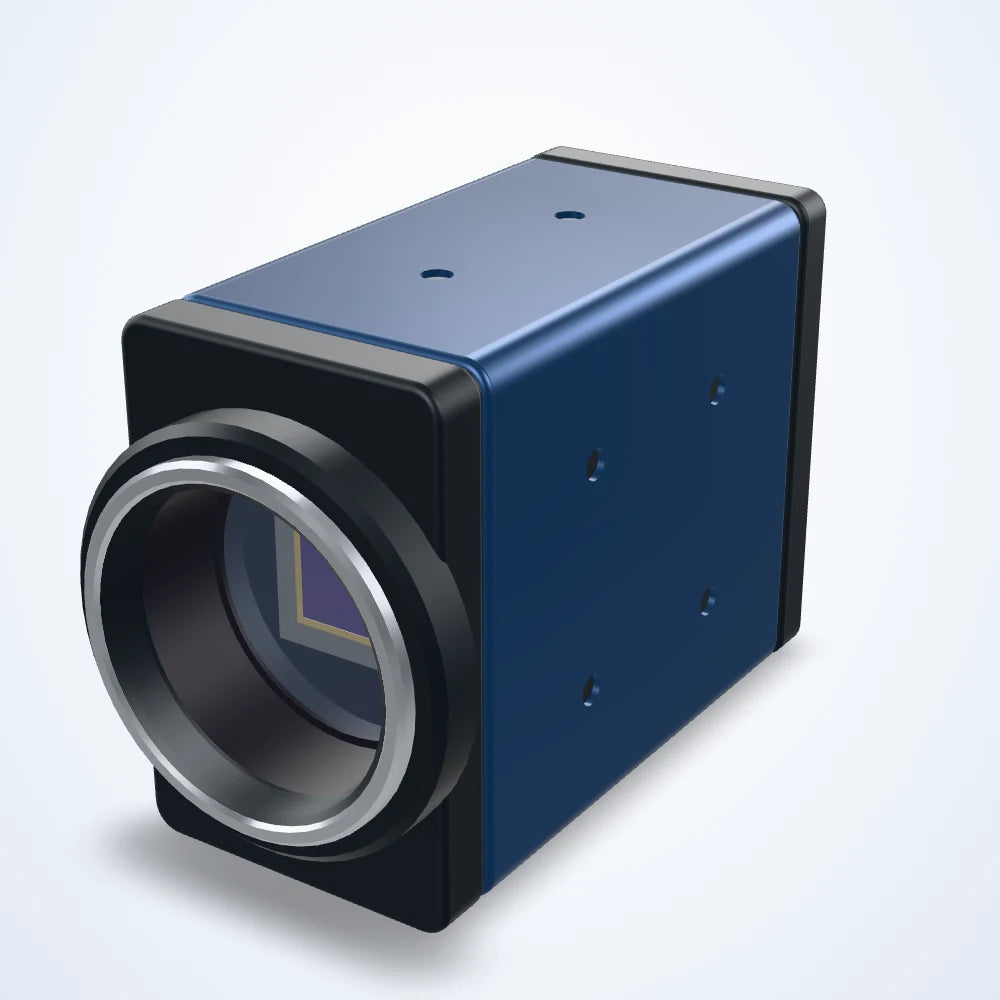

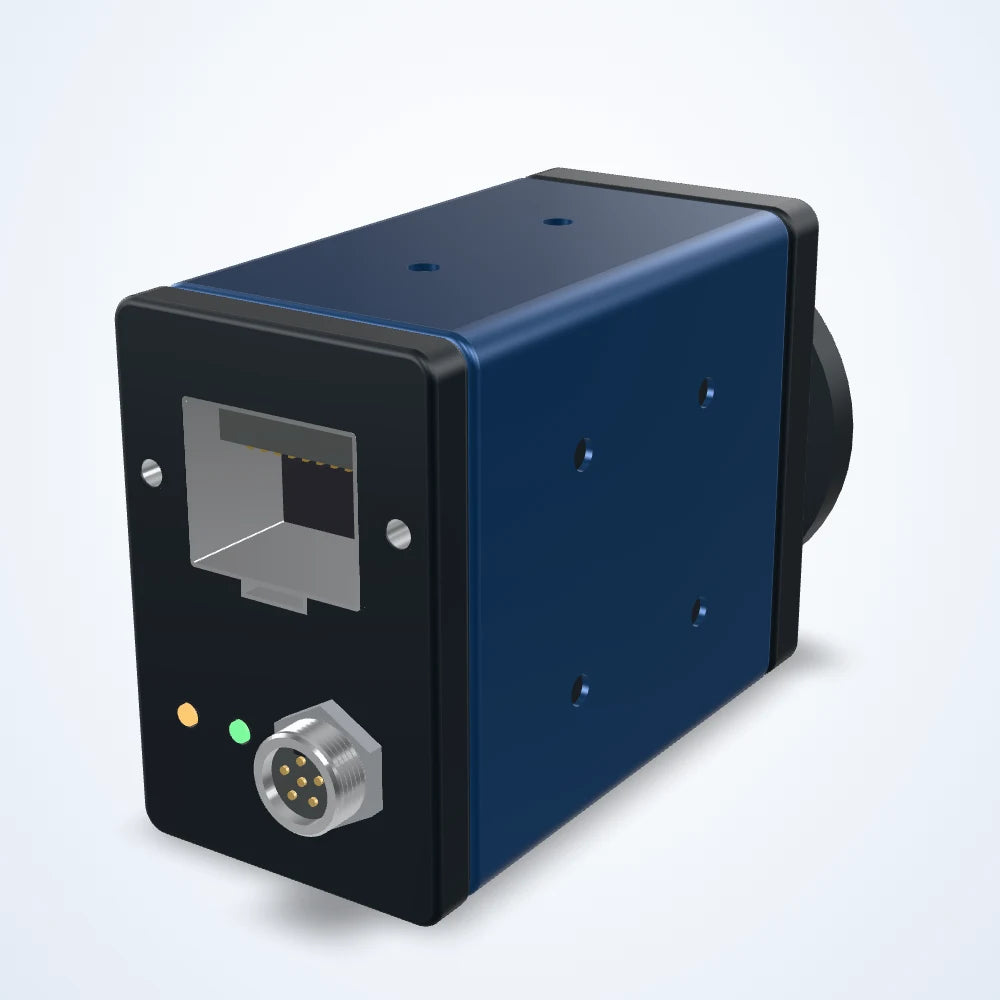

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

9.1 MP GigE area scan camera, GMAX2509, 2/3" global shutter, 13 fps (LS-CMR-0052)

Model LS-CMR-0052

Resolution4200 px x 2160 px
Sensor2/3"
InterfaceGigE
Speed13 fps
Lens mountC-mount
Pixel size2.5 μm x 2.5 μm

$985.00

Ships in 3-4 weeks

0.28 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

9.1 MP area scan camera for inspection, measurement and guidance on the production line. GMAX2509 CMOS sensor (2/3"); 4200 x 2160 pixels of 2.5 μm; up to 13 frames per second; global shutter; GigE interface; C-mount lens mount.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CMR-0052

Sensor and imaging

Resolution	4200 px x 2160 px
Pixel size	2.5 μm x 2.5 μm
Max. frame rate	13 fps
Sensor make	Gpixel
Sensor model	GMAX2509
Shutter	Global Shutter
Sensor size	2/3"
Sensor type	CMOS
Dynamic range	60.0 dB
Pixel bit depth	12 bit

Interfaces and I/O

Data interface	GigE
Digital I/O	Opto-isolated input x 1, opto-isolated output x 1, and bi-directional custom non-isolated I/O x 1

Environment and compliance

Operating temperature	-30 - 50°C(Working), -30 - 80°C(Storage)
Certification	GigE Vision and GenICam

Computing

Operating system	Windows, Linux

Electrical

Trigger mode	Soft Trigger,Hardware Trigger,Free Run
Power supply	PoE or 9-24 VDC

Mechanical

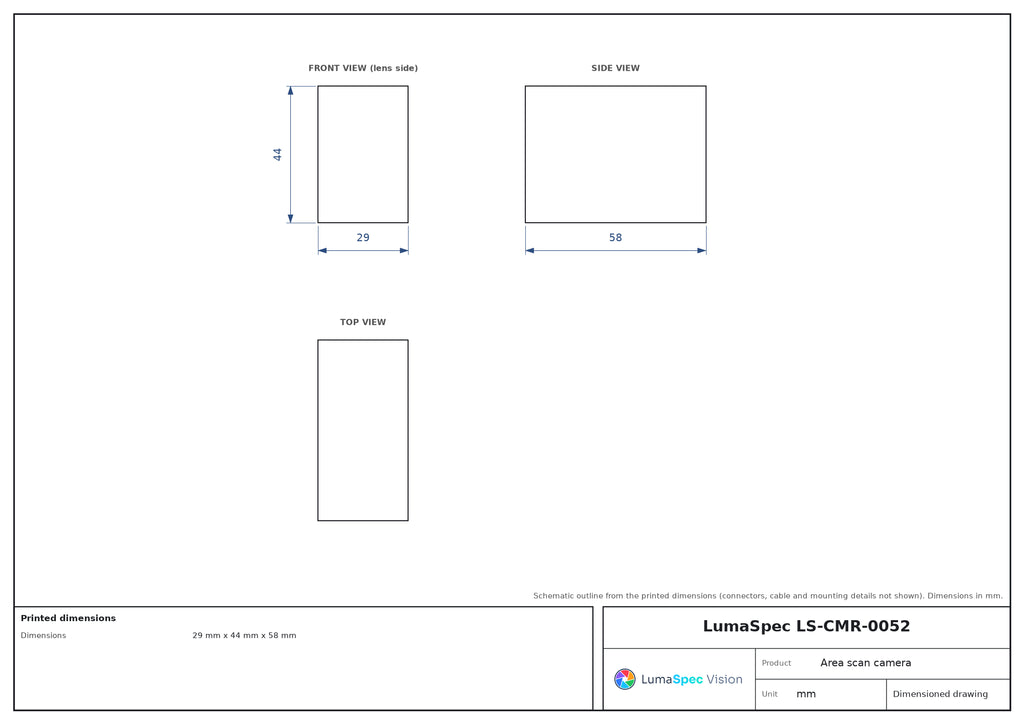

Dimensions	29 mm x 44 mm x 58 mm
Lens mount	C-mount (CS-Mount can be customized )
Weight	100g
