2 MP GigE area scan camera, IMX430, 1/1.7" global shutter, 60 fps

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

2 MP GigE area scan camera, IMX430, 1/1.7" global shutter, 60 fps (LS-CMR-0027)

Model LS-CMR-0027

Resolution1624 px x 1240 px
Sensor1/1.7"
InterfaceGigE
Speed56 fps
Lens mountC-mount
Pixel size4.5 μm x 4.5 μm

$575.00

Ships in 3-4 weeks

0.26 kg shipping weight

Not available in the United States. Available for delivery to other countries.

2 MP area scan camera for inspection, measurement and guidance on the production line. IMX430 CMOS sensor (1/1.7"); 1624 x 1240 pixels of 4.5 μm; up to 60 frames per second; global shutter; GigE interface; C-mount lens mount; mono or colour version.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CMR-0027

Sensor and imaging

Resolution	1624 px x 1240 px
Pixel size	4.5 μm x 4.5 μm
Max. frame rate	56 fps
Sensor model	Sony IMX430
Shutter	Global Shutter
Sensor size	1/1.7"
Sensor type	CMOS
Exposure time	26 μs ~1s
Sensor make	Sony
SNR	>38.0 dB
Pixel bit depth	8 / 10 bits
Dynamic range	60.0 dB

Interfaces and I/O

Data interface	GigE
Digital I/O	Opto-isolated input x 1, opto-isolated output x 1, and bi-directional custom non-isolated I/O x 1

Environment and compliance

Operating temperature	-30 - 70°C(Storage), 0 - 50°C(Working)
Certification	GigE Vision and GenICam

Computing

Operating system	Windows, Linux

Electrical

Trigger mode	Via hardware trigger, software trigger or free run mode
Power supply	DC 6-24 V, Supporting PoE
Power consumption	12 V @≈3.4 W

Mechanical

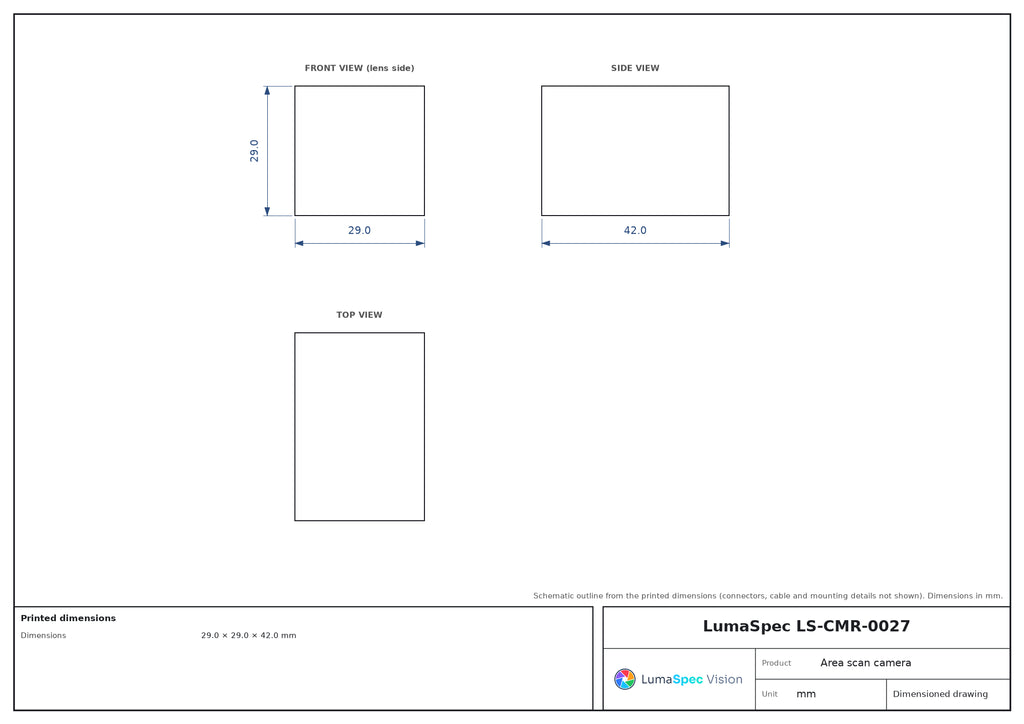

Dimensions	29.0 × 29.0 × 42.0 mm (88g)
Lens mount	C-mount(CS-Mount can be customized)
Weight	88g
Mounting holes	4-M2X3.5; 3-M3X3.5; 2-M2X3
