Area scan cameras
5 MP GigE area scan camera, IMX264, 2/3" global shutter, 24 fps (LS-CMR-0040)
Model LS-CMR-0040
- Resolution2448 px x 2048 px
- Sensor2/3"
- InterfaceGigE
- Speed24 fps (36 fps Lossless Compression)
- Lens mountC-mount
- Pixel size3.45 μm x 3.45 μm
$570.00
Ships in 3-4 weeks
0.28 kg shipping weight
Not available in the United States. Available for delivery to other countries.
5 MP area scan camera for inspection, measurement and guidance on the production line. IMX264 CMOS sensor (2/3"); 2448 x 2048 pixels of 3.45 μm; up to 24 frames per second; global shutter; GigE interface; C-mount lens mount; mono or colour version.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0040 |
|---|
Sensor and imaging
| Resolution | 2448 px x 2048 px |
|---|---|
| Pixel size | 3.45 μm x 3.45 μm |
| Max. frame rate | 24 fps (36 fps Lossless Compression) |
| Sensor make | Sony |
| Sensor model | IMX 264 |
| Shutter | Global Shutter |
| Sensor size | 2/3" |
| Sensor type | CMOS |
| Dynamic range | 71.1 dB |
| SNR | >39.8 dB |
| Pixel bit depth | 8 / 10 / 12 bits |
Interfaces and I/O
| Data interface | GigE |
|---|---|
| Digital I/O | 6-pin Hirose connector: 1 opto-isolated input, 1 opto-isolated output, 1 configurable non-isolated input/output |
Environment and compliance
| Operating temperature | 0 - +50°C(Operating), -30 - +80°C(Storage) |
|---|---|
| Certification | GigE Vision and GenICam |
Computing
| Operating system | Windows, Linux |
|---|
Electrical
| Trigger mode | ● Soft Trigger; ● Hardware Trigger; ● Free Run |
|---|---|
| Power supply | PoE or 9-24 V DC (via Hirose) |
Mechanical

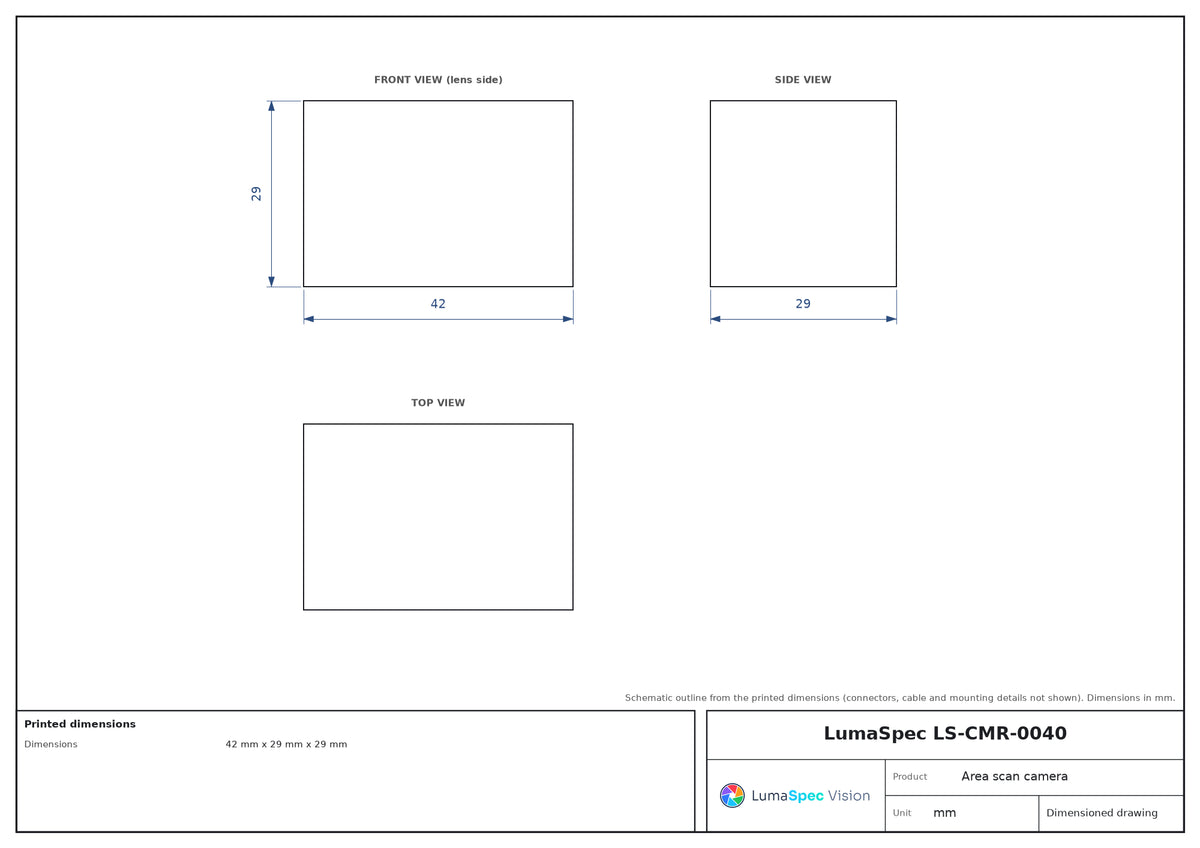

| Dimensions | 42 mm x 29 mm x 29 mm |
|---|---|
| Lens mount | C-mount(CS-Mount can be customized) |
| Weight | 98g |
