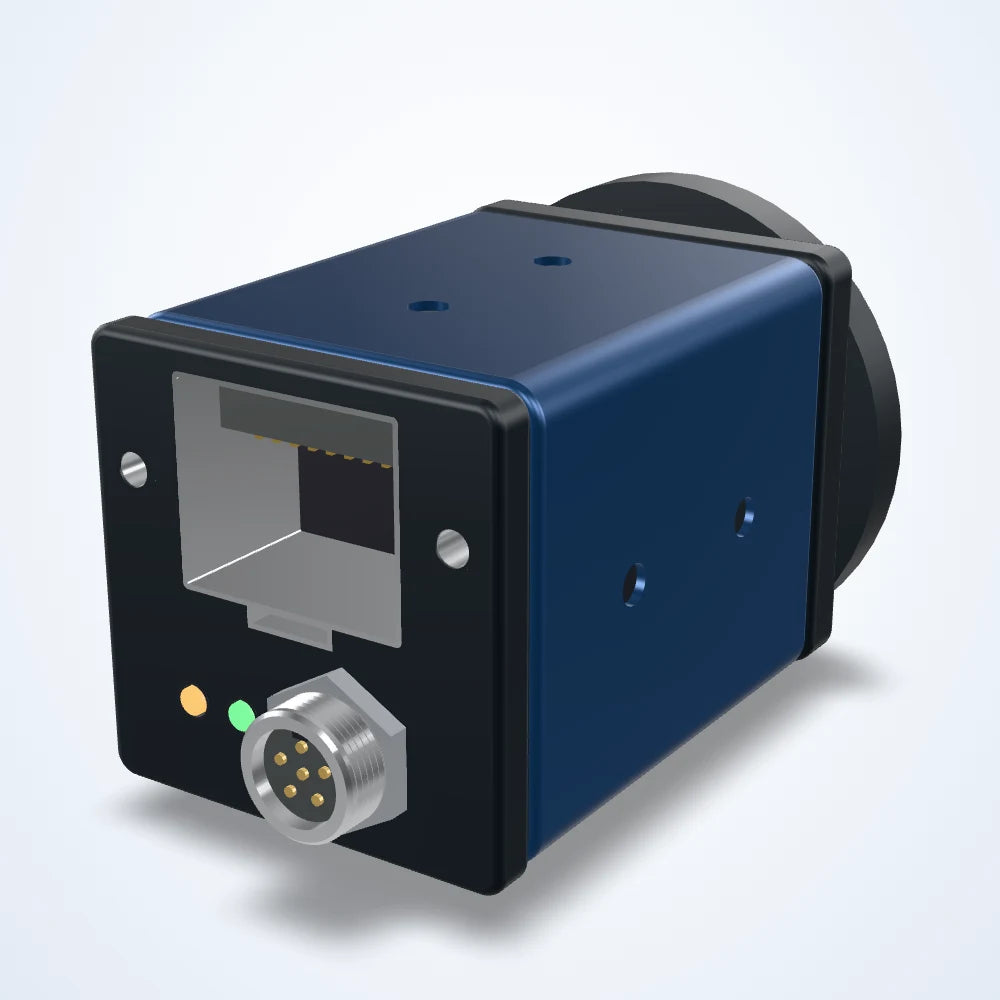

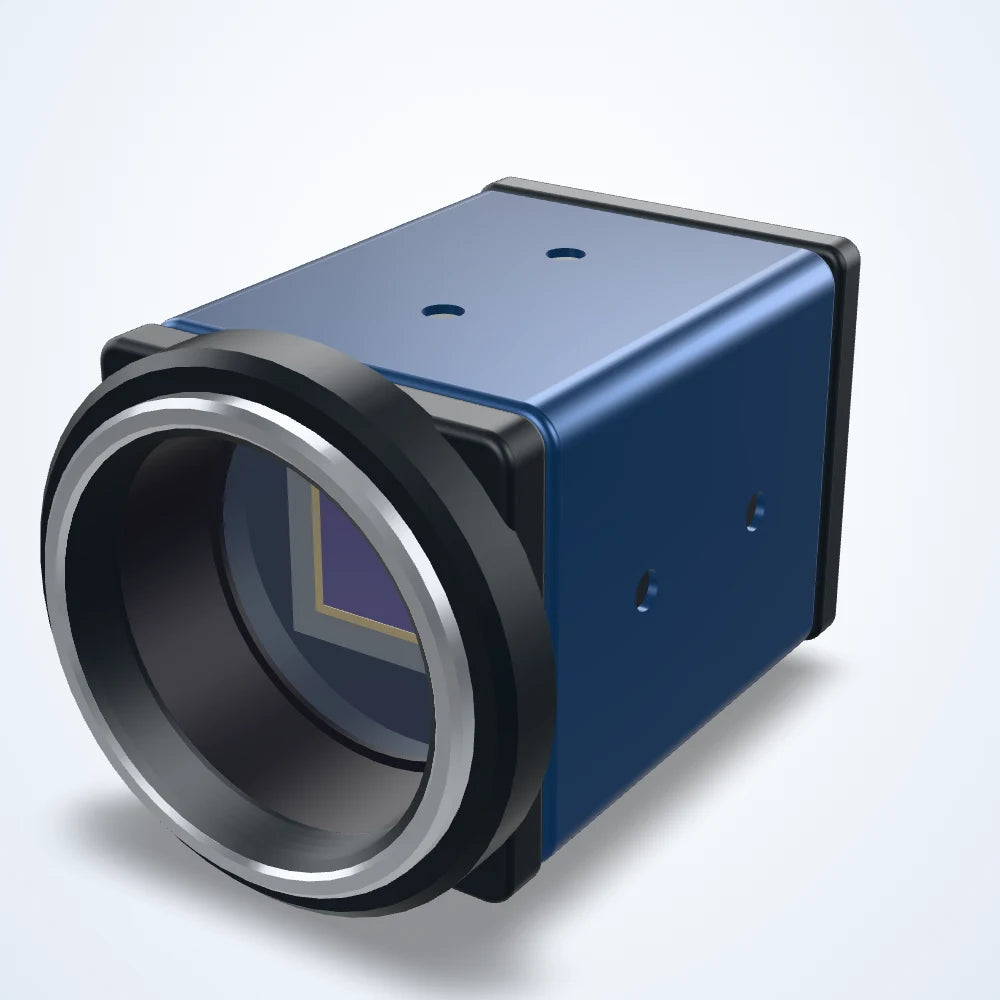

Rendered illustration: the actual product may differ in appearance.
Area scan cameras
19.7 MP GigE area scan camera, AR2020, rolling shutter, 5.9 fps (LS-CMR-0063)
Model LS-CMR-0063
- Resolution5120 x 3840
- Sensor1/1.8"
- InterfaceGigE
- Speed5.9 fps
- Lens mountC-mount
- Pixel size1.4 μm
$790.00
Ships in 3-4 weeks
0.5 kg shipping weight
Not available in the United States. Available for delivery to other countries.
19.7 MP area scan camera for inspection, measurement and guidance on the production line. AR2020 sensor; 5120 x 3840 pixels of 1.4 μm; up to 5.9 frames per second; rolling shutter; GigE interface; C-mount lens mount; mono or colour version.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0063 |
|---|
Sensor and imaging
| Sensor model | AR2020 |
|---|---|
| Resolution | 5120 x 3840 |
| Max. frame rate | 5.9 fps |
| Pixel size | 1.4 μm |
| Shutter | Rolling Shutter |
| Sensor size | 1/1.8" |
Interfaces and I/O
| Data interface | GigE |
|---|
Mechanical
| Lens mount | C-Mount |
|---|---|
| Shipping weight | 0.50 kg |
