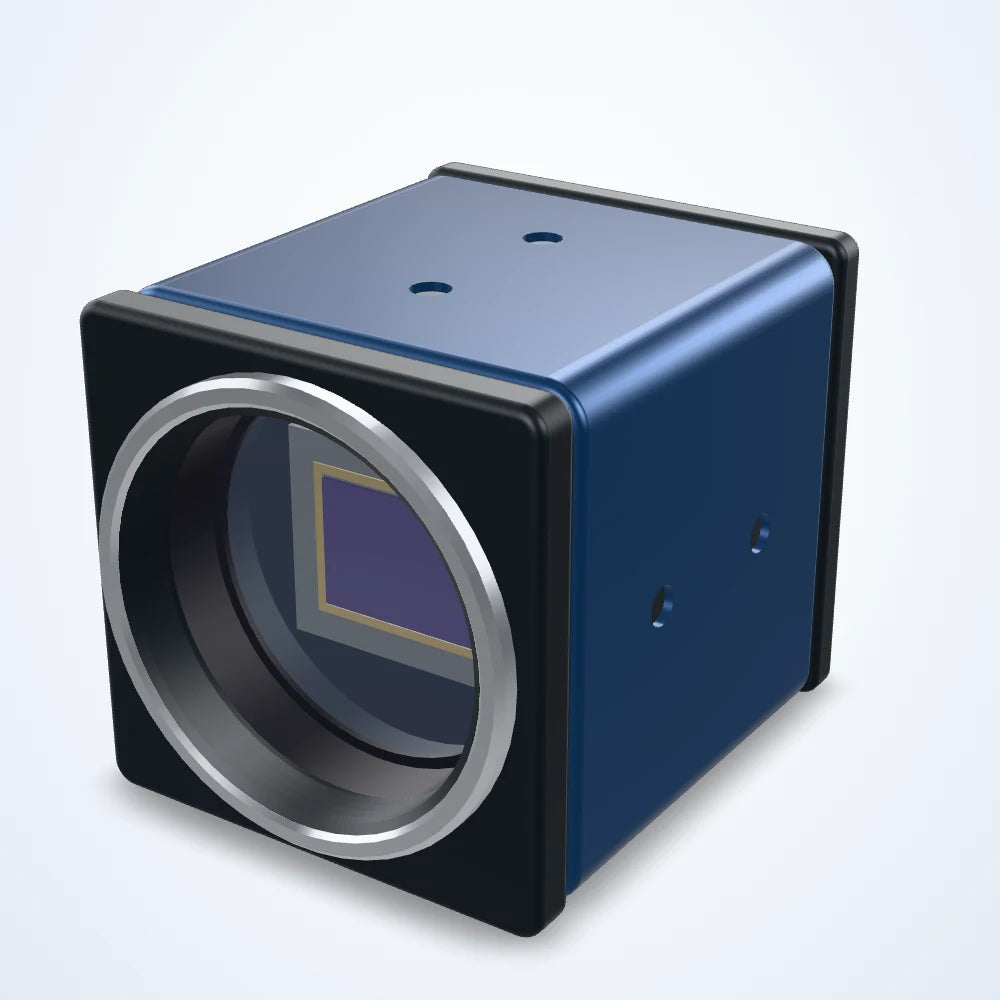

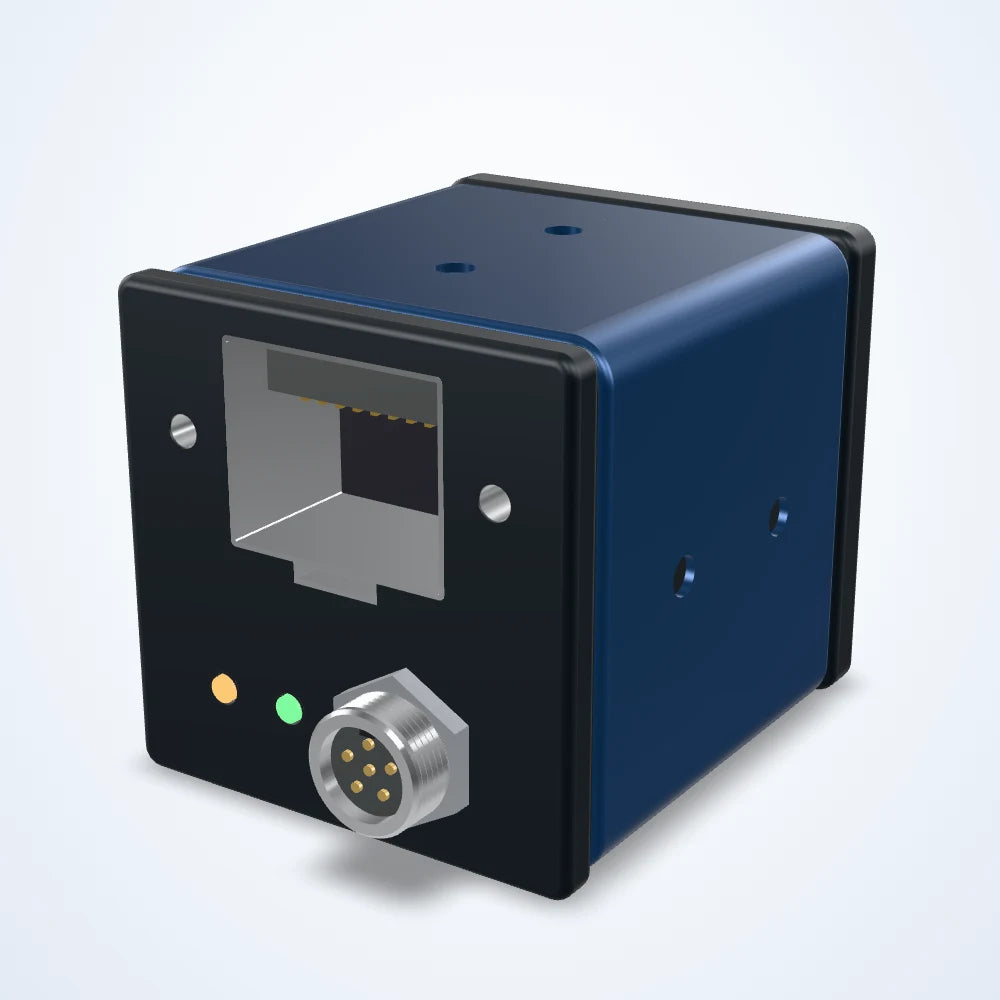

Rendered illustration: the actual product may differ in appearance.
Area scan cameras
12.3 MP GigE area scan camera, IMX304, 1.1" global shutter, 9.9 fps (LS-CMR-0054)
Model LS-CMR-0054
- Resolution4096 × 3000 (12MP)
- Sensor1.1"
- InterfaceGigE
- Speed30.5 fps
- Pixel size3.45 μm
$1,320.00
Ships in 3-4 weeks
1.0 kg shipping weight
Not available in the United States. Available for delivery to other countries.
12.3 MP area scan camera for inspection, measurement and guidance on the production line. IMX304 sensor (1.1"); 4096 x 3000 pixels of 3.45 μm; up to 9.9 frames per second; global shutter; GigE interface; mono or colour version.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0054 |
|---|
Sensor and imaging
| Sensor model | Sony IMX304 |
|---|---|
| Resolution | 4096 × 3000 (12MP) |
| Max. frame rate | 30.5 fps |
| Pixel size | 3.45 μm |
| Sensor size | 1.1" |
| Shutter | Global |
| Pixel bit depth | 12-bit |
Interfaces and I/O
| Data interface | GigE |
|---|
Mechanical
| Shipping weight | 1.00 kg |
|---|
