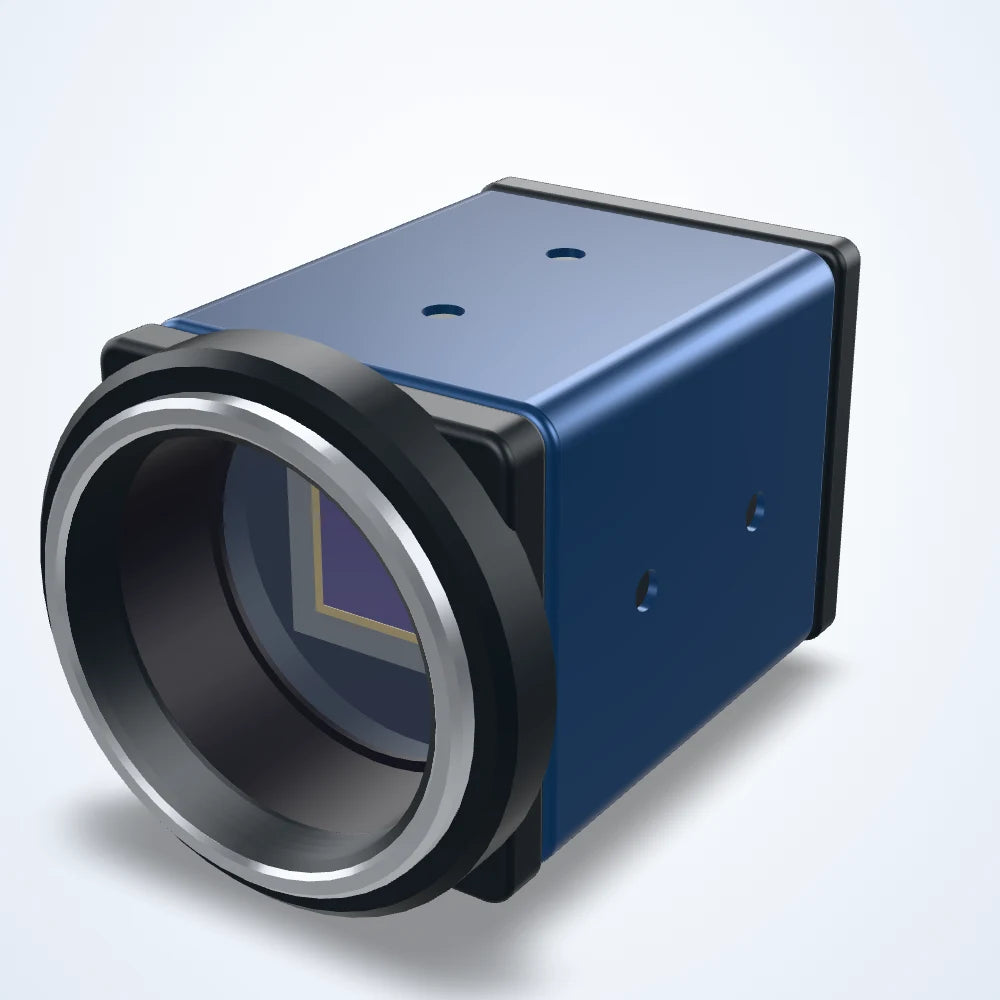

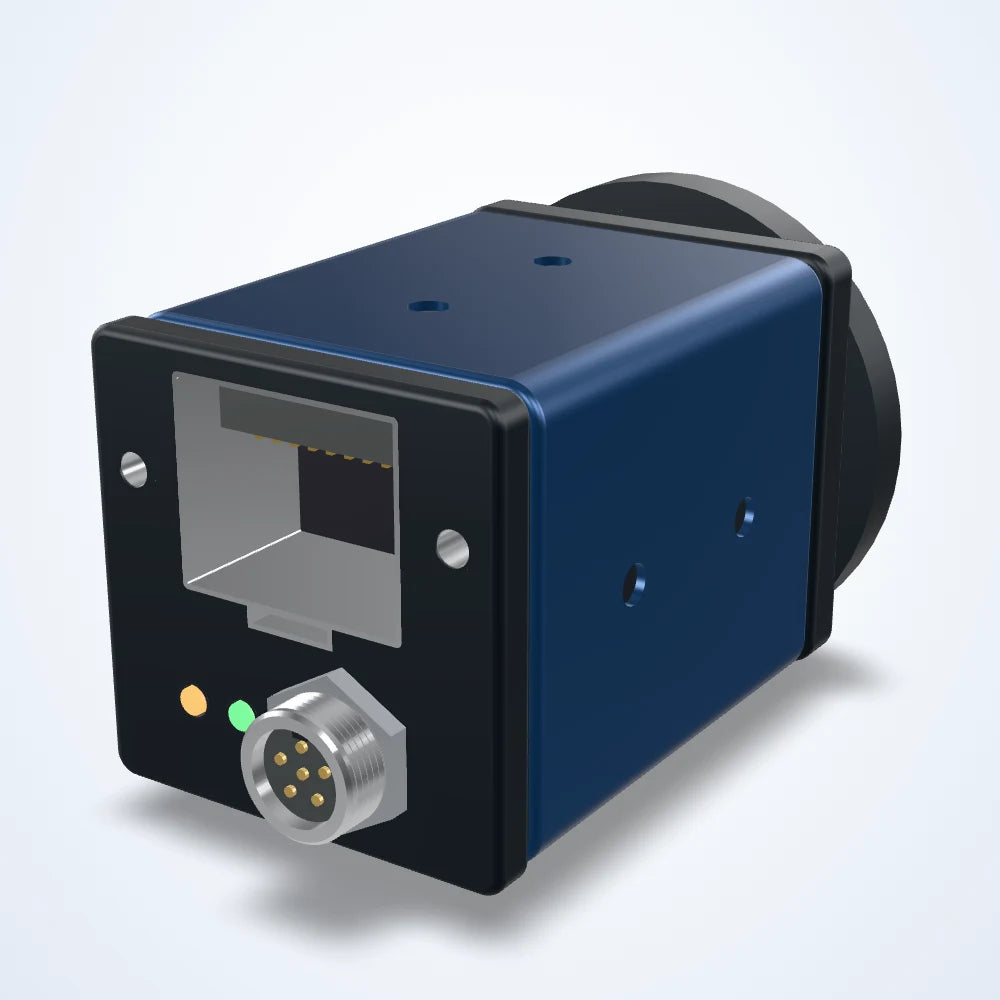

Rendered illustration: the actual product may differ in appearance.
Area scan cameras
20.3 MP GigE area scan camera, IMX541, 1.1" global shutter, 5.9 fps (LS-CMR-0061)
Model LS-CMR-0061-M
- Resolution4504 × 4504
- Sensor1.1"
- InterfaceGigE, PoE
- Speed5.9 fps (8 fps Lossless Compression)
- Lens mountC-mount
- Pixel size2.74 μm
$1,800.00
Ships in 3-4 weeks
1.0 kg shipping weight
Not available in the United States. Available for delivery to other countries.
20.3 MP area scan camera for inspection, measurement and guidance on the production line. IMX541 sensor (1.1"); 4504 x 4504 pixels of 2.74 μm; up to 5.9 frames per second; global shutter; GigE interface; C-mount lens mount; mono or colour version.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0061 |
|---|---|
| Image Formats | Mono 8/10/12, Bayer RG 8/10/10Packed/12/12Packed |
| ROI | Supported |
| Image Flip | Support for X/Y axis |
| Gamm | 0–3.99998, LUT supported |
| Acquisition Modes | SW Trigger / HW Trigger / Free Run |
| SPC | Supported |
| User Profiles | Supports saving 3 sets of user-defined configurations |
| Cache | 256 MB |
Sensor and imaging
| Sensor size | 1.1" |
|---|---|
| Resolution | 4504 × 4504 |
| Max. frame rate | 5.9 fps (8 fps Lossless Compression) |
| Sensor model | IMX541 (1.1" CMOS) |
| Pixel size | 2.74 μm |
| Pixel bit depth | 12-bit |
| Shutter | Global |
| SNR | 40 dB |
| Exposure time | Ultra-Short: 1 μs ~ 2.4 μs Standard: 28 μs ~ 10 sec |
| Dynamic range | 71 dB |
| Binning | off/onebytwo/twobyone/twobytwo/onebyfour/fourbyone/twobyfour/fourbytwo/ fourbyfour/ThreebyThree/onebySix/SixbyOne/SixbySix |
| Gain | 1~32X |
Interfaces and I/O
| Data interface | GigE, PoE |
|---|---|
| Digital I/O | 66-core Hirose connector: 1 optically isolated input, 1 optically isolated output, 1 configurable input/output without optical isolation |
Environment and compliance
| Operating temperature | 0 °C~+50 °C(Operating), -30 °C~+80 °C(Storage) |
|---|
Electrical
| Power supply | PoE power supply/DC power supply via Hirose interface, voltage range 9 V to 24 V |
|---|---|
| Power consumption | ≈2.60 W @ 12 V DC (typical) |
Mechanical
| Lens mount | C-mount |
|---|---|

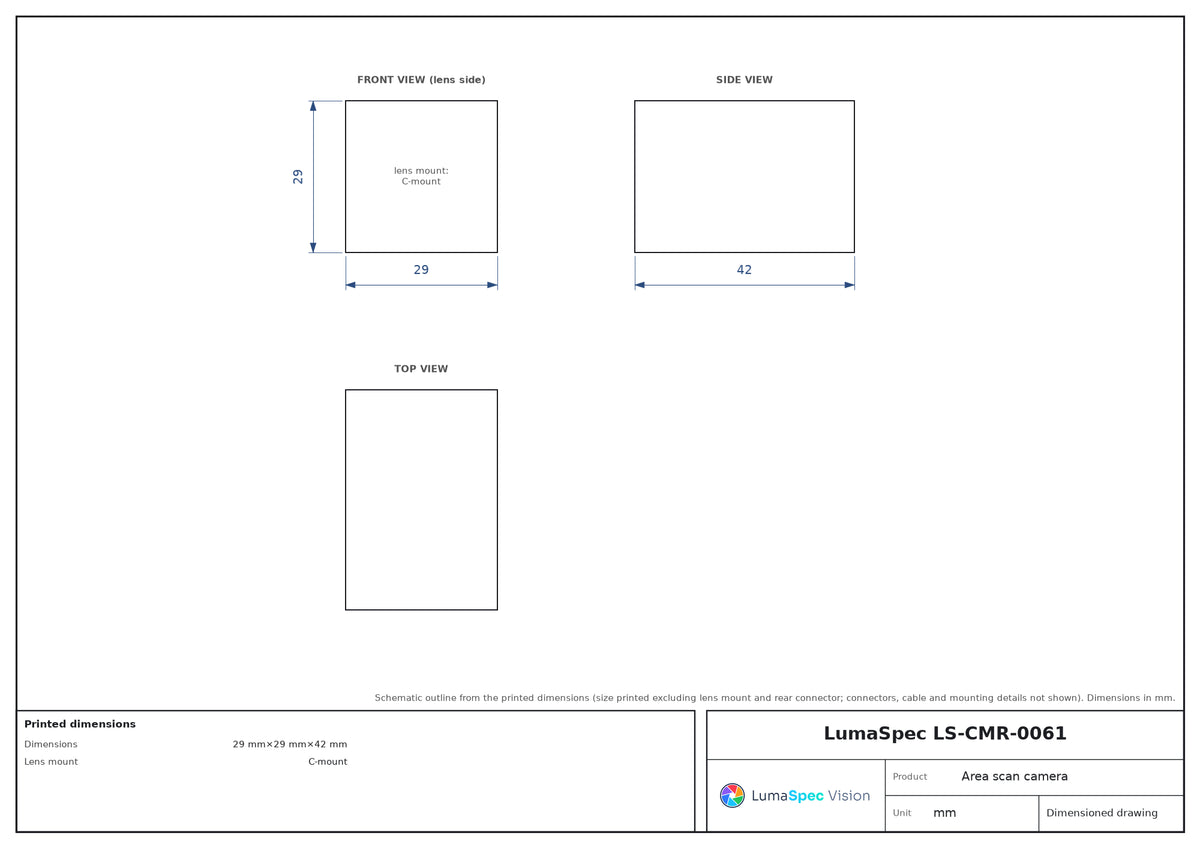

| Dimensions | 29 mm×29 mm×42 mm(excluding lens mount and rear connector) |
| Net weight | 98 g |
