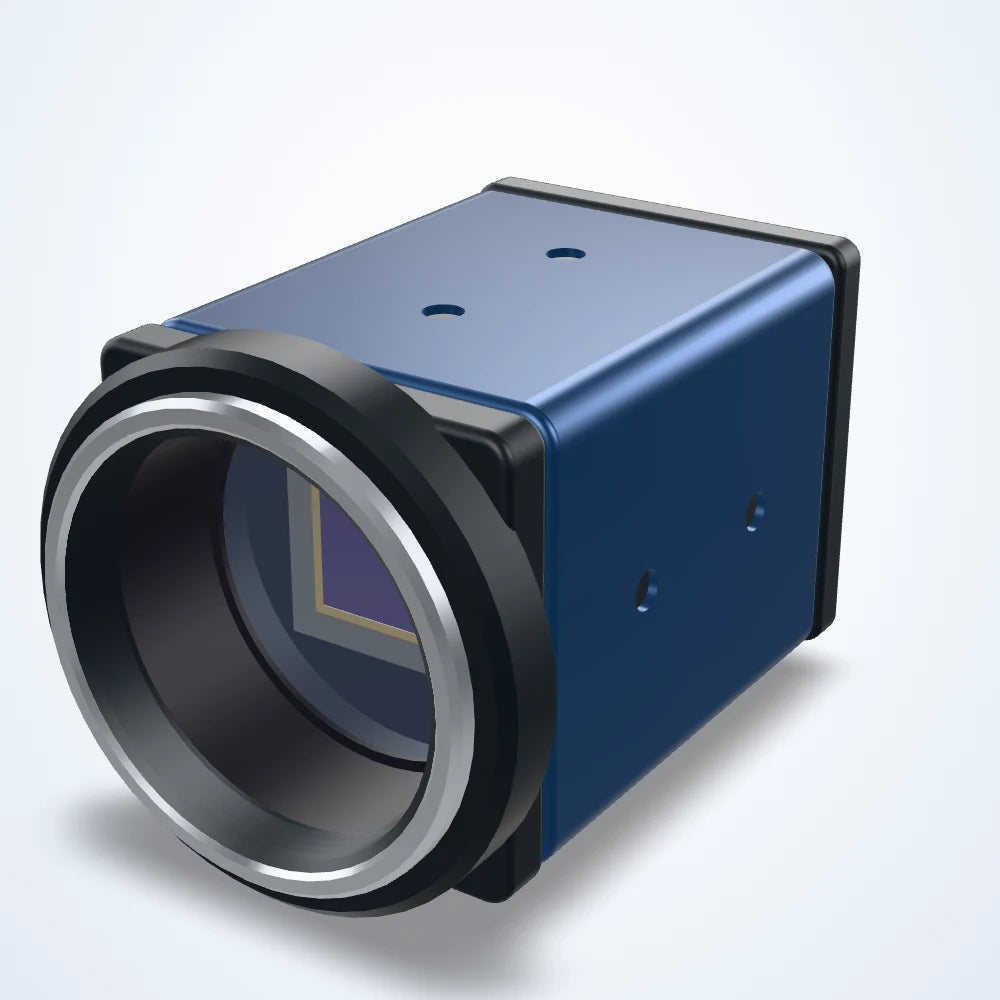

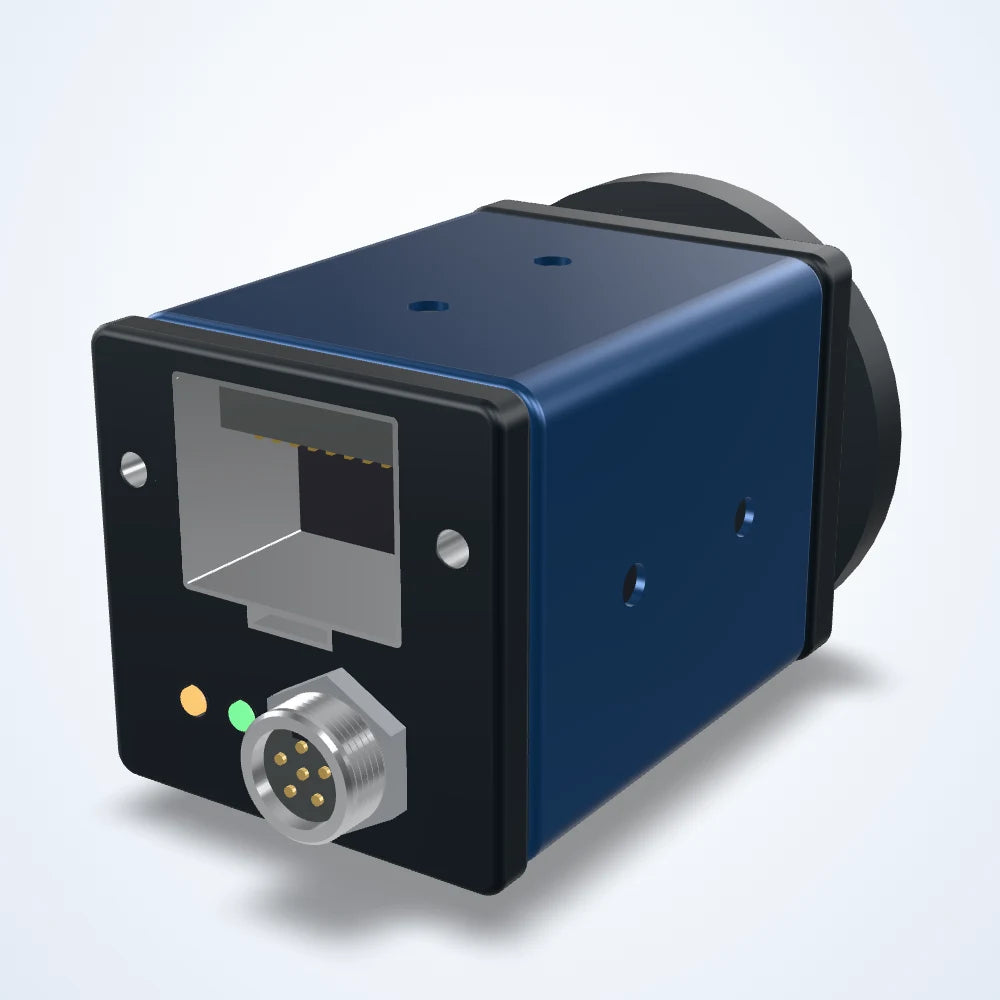

Rendered illustration: the actual product may differ in appearance.
Area scan cameras
24.6 MP GigE area scan camera, IMX540, global shutter, 4 fps (LS-CMR-0064)
Model LS-CMR-0064
- Resolution5328 × 4608
- Sensor1.2" CMOS
- InterfaceGigE, PoE
- Speed4.9 fps / 7 fps (lossless)
- Lens mountC-mount
- Pixel size2.74 μm
$2,165.00
Ships in 3-4 weeks
2.0 kg shipping weight
Not available in the United States. Available for delivery to other countries.
24.6 MP area scan camera for inspection, measurement and guidance on the production line. IMX540 sensor; 5328 x 4608 pixels of 2.74 μm; up to 4 frames per second; global shutter; GigE interface; C-mount lens mount; mono or colour version.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0064 |
|---|---|
| Image Formats | Mono 8/10/12, Bayer RG 8/10/10Packed/12/12Packed |
| ROI | Supported |
| Image Flip | Support for X/Y axis |
| Gamm | 0–3.99998, LUT supported |
| Acquisition Modes | SW Trigger / HW Trigger / Free Run |
| SPC | Supported |
| User Profiles | Supports saving 3 sets of user-defined configurations |
| Cache | 256 MB |
Sensor and imaging
| Resolution | 5328 × 4608 |
|---|---|
| Max. frame rate | 4.9 fps / 7 fps (lossless) |
| Sensor model | IMX540 (1.2" CMOS) |
| Pixel size | 2.74 μm |
| Pixel bit depth | 12-bit |
| Shutter | Global |
| Image buffer | 256 MB |
| Exposure time | 1 μs–2.4 μs (ultra-short), 28 μs–10 s (standard) |
| Sensor size | 1.2" CMOS |
| SNR | 40 dB |
| Dynamic range | 71 dB |
| Binning | off/onebytwo/twobyone/twobytwo/onebyfour/fourbyone/twobyfour/fourbytwo/ fourbyfour/ThreebyThree/onebySix/SixbyOne/SixbySix |
| Gain | 1~32X |
Interfaces and I/O
| Data interface | GigE, PoE |
|---|---|
| Digital I/O | 1 optically isolated input, 1 optically isolated output, 1 configurable input/output without optical isolation |
Environment and compliance
| Operating temperature | 0 °C~+50 °C(Operating), -30 °C~+80 °C(Storage) |
|---|
Electrical
| Power supply | PoE power supply/DC power supply via Hirose interface, voltage range 9 V to 24 V |
|---|---|
| Power consumption | ≈2.40 W @ 12 V DC (typical) |
Mechanical
| Lens mount | C-mount |
|---|---|

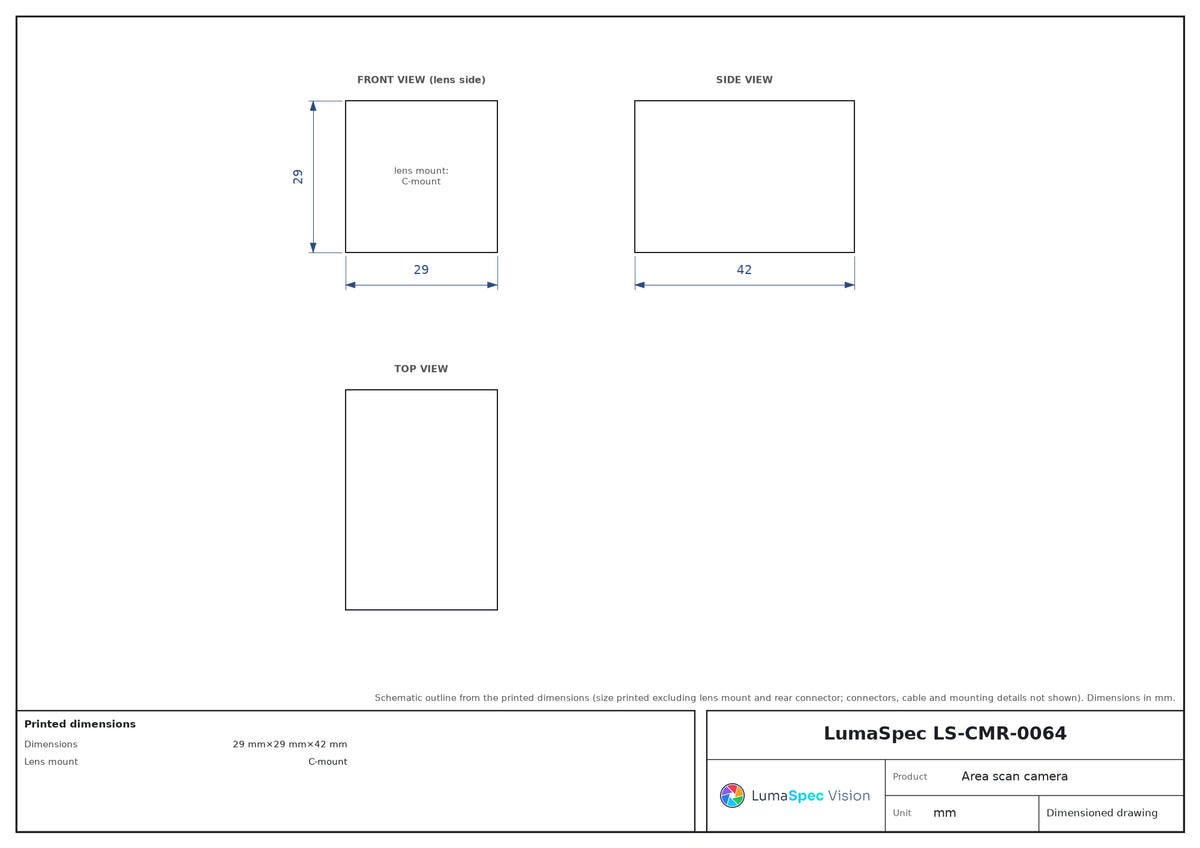

| Dimensions | 29 mm×29 mm×42 mm(excluding lens mount and rear connector) |
| Net weight | 98 g |
